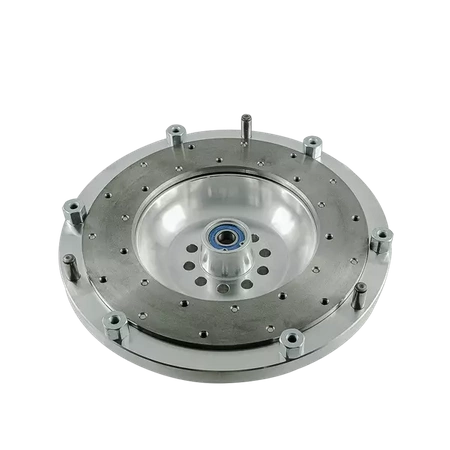

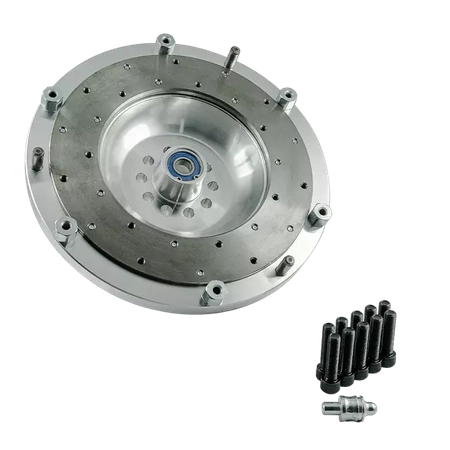

Flywheel Audi V8 4.2 ABZ - BMW M57n GS6-53DZ HGD JGA - 240mm / 9.45"
- Custom aluminum flywheel designed to mate (swap / conversion) the Audi 4.2 ABZ engine with the BMW ZF (ZF Friedrichshafen) GS6 6-speed manual gearbox.
Save by buying more
PMC Motorsport Custom Flywheel Audi 4.2 ABZ - BMW M57n ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel - 240mm / 9.45"
Custom aluminum flywheel designed to mate (swap / conversion) the Audi 4.2 ABZ engine with the BMW ZF (ZF Friedrichshafen) GS6 6-speed manual gearbox.
PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection with a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured by our company.
Selection assistance and after-sales support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, they will provide technical support. You can contact us via the contact form.
Individual component purchase
Our offer includes every element of our kit, which can be purchased separately.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used in both daily cars and professional projects intended for motorsport.
From the beginning, we focus on the quality of the parts we manufacture. Every element is inspected after each stage of production. Every component produced by us is engraved with a production serial number.
Quality confirmed by ISO certificate PN-EN ISO 9001:2015
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will calculate shipping costs after the order is placed and add them to the order. You will receive an email with the order cost.
NOTE: The provided shipping quote along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for customers with an active European VAT ID (option for B2B customers outside Poland) and for export outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: |
Audi 4.2 ABZ |
| Compatible gearboxes: |
ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed ZF S6-53 GS6-53DZ HGD (THGD) BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57n M57n2 E60 530D ZF S6X53 GS6X53DZ HGE (THGE) BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ JGB (TJGB) BMW M57n M57n2 (xDrive) |
Additional Information
PMC Motorsport parts are intended for motorsport. For use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.
The adapter installation manual contains only basic knowledge necessary for the physical connection of the engine with the gearbox outside the car body.
Depending on the car, additional modifications may occur, such as: fitting mounts, bushings, engine firewall, gearbox tunnel, driveshaft length, etc.
Our adapters are made from materials that are fully recyclable.
The flywheel requires the use of a PMC gearbox adapter. To install the flywheel, it is necessary to use the automatic transmission flexplate from the Audi ABZ OE version. The clutch release fork should be mounted in the lower position of the release bearing.
FAQ
- Do I need an additional gearbox adapter for the PMC Motorsport Audi V8 4.2 ABZ flywheel?
Yes, to install the flywheel you need to use the 20mm PMC Motorsport F0M57-ABZ gearbox adapter.
- Which starter motor should I use with the PMC Motorsport Audi V8 4.2 ABZ flywheel?
You should use the Audi V8 4.2 ABZ (OE) starter motor.
- Does the PMC flywheel need additional balancing?
Every PMC Motorsport flywheel is balanced before shipping (our tolerance is 4g). In the case of installing a custom clutch kit, we recommend an additional check.
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD
- Bell housing : 1067 401 060 / 1067401060
- Sticker number : 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205
- BMW 5' E60 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
- BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
- BMW 5' E61 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
- BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA
- Bell housing: 1067 401 060 / 1067401060
- Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218
- BMW 5' E60 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
- BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
- BMW 5' E61 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
- BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
