Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"
Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"
Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"
Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"
Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"
Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"
Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"
Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"

Flywheel Toyota JZ - Mazda RX-7 FD - 240mm / 9.45"

  • PMC Motorsport custom aluminum flywheel Toyota JZ 1JZ 2JZ - Mazda RX-7 FD - 240mm / 9.45"
529,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in very small quantities
The product is available in very small quantities
14 days for easy returns
This product is not available in a stationary store
Safe shopping

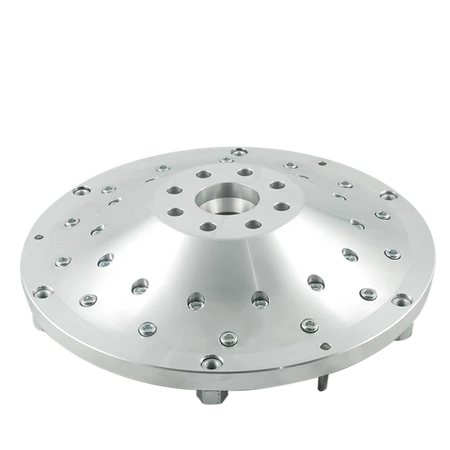

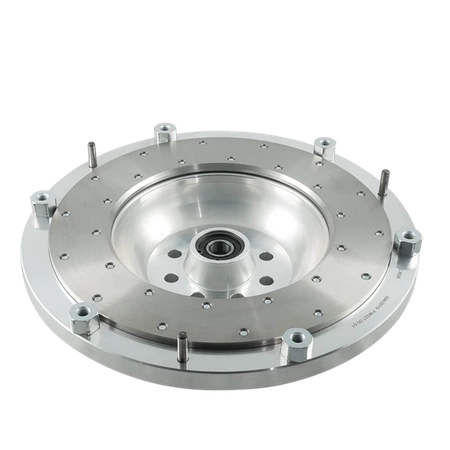

PMC Motorsport custom aluminum flywheel Toyota JZ 1JZ 2JZ - Mazda RX-7 FD - 240mm / 9.45"



Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the Mazda RX-7 gearbox

Why PMC Motorsport?

Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.

Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.



Perfect Alignment. Our adapters ensure perfect alignment between the engine and gearbox.

Made in EU. Our entire production and design department is located within the European Union.

Spare part Purchase. We offer every component of our kit separately. If you need a spare part, contact us at office@pmcmotorsport.com.

Fast International Shipping. We ship our products to all countries worldwide. Shipping prices to European Union countries (excluding islands) and the United Kingdom are calculated automatically. For countries not on the list, our team will provide a shipping calculation after purchase.

0% VAT - for customers with active European VAT

Assistance in Selection and After-Sales Support. The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, we provide technical support. You can reach us via Facebook, Instagram, or email: office@pmcmotorsport.com.





Engine list:

  • Toyota JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ (non VVT-i / VVT-i version)

Manual gearbox list (Petrol) :

  • Mazda RX-7

Manual

You should use the flywheel / ring gear from the automatic version of the Toyota 1JZ 2JZ, along with one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).

The starter remains OE Toyota 1JZ 2JZ

Remove the bearing from the crankshaft hub (automatic version JZ) and replace it with a centering sleeve from the kit.



Symbol
K0RX7-FB-JZ
Producer code
5903707405466
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

Toyota 1JZ (non VVT-i / VVT-i version)

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

Toyota 2JZ (non VVT-i / VVT-i version)

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Manual gearbox (Petrol)
Mazda RX-7 FD
Clutch Set
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Recommended clutch pressure plate
SACHS XTend 3000 951 877 (BMW M57)
SACHS XTend 3000 951 952 (M57N M57N2)
SACHS PERFORMANCE 88 308 200 1243 / 883082.001243
Clutch disc
from the clutch kit LUK 624 3297 09 OE LUK 324 0430 10
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Toyota JZ (OE)
Flexplate / ring gear / Drive plate required
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Flywheel weight
4.6 kg / 10.14 lbs
Tightening torque for flywheel bolts
72Nm + glue

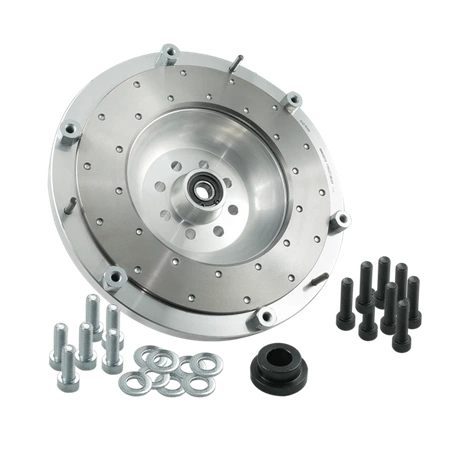

Set includes
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Pipe and tee
Aluminium adapter for the central slave cylinder
Central slave cylinder
Material
Aluminium
Replaceable friction surface
Yes
Gearbox adapter required
F0RX7-JZ
Product sales codes included
K0RX7-FB-JZ (1864)
EAN
5903707405466
