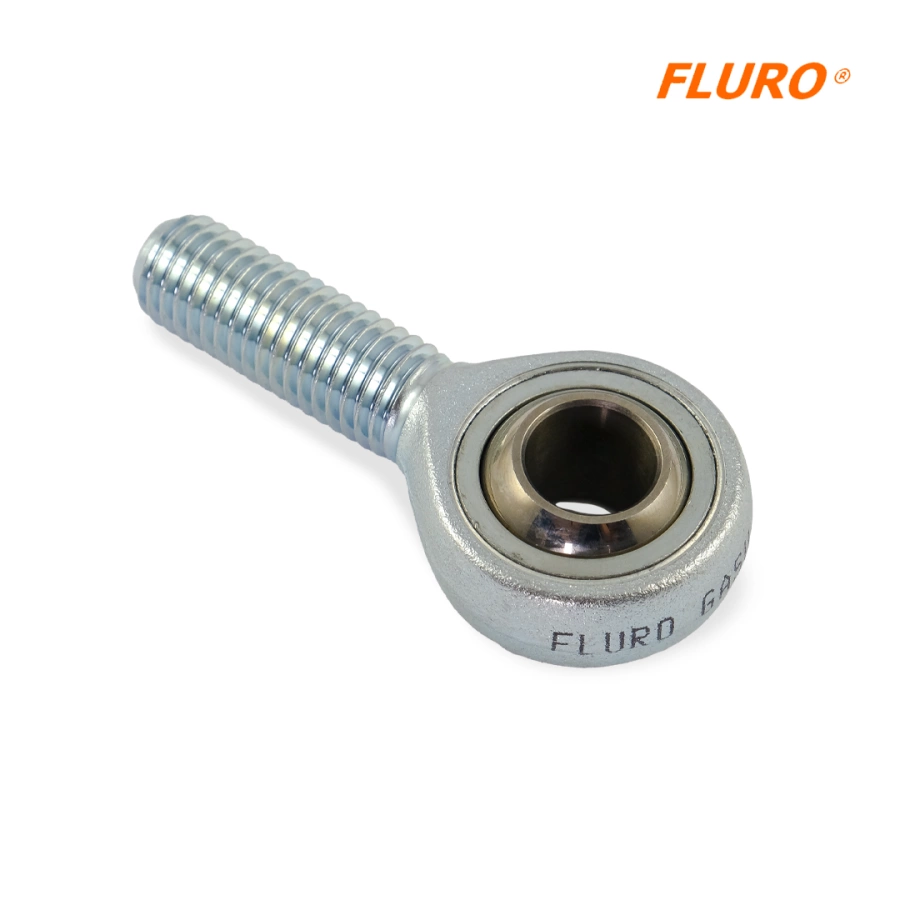

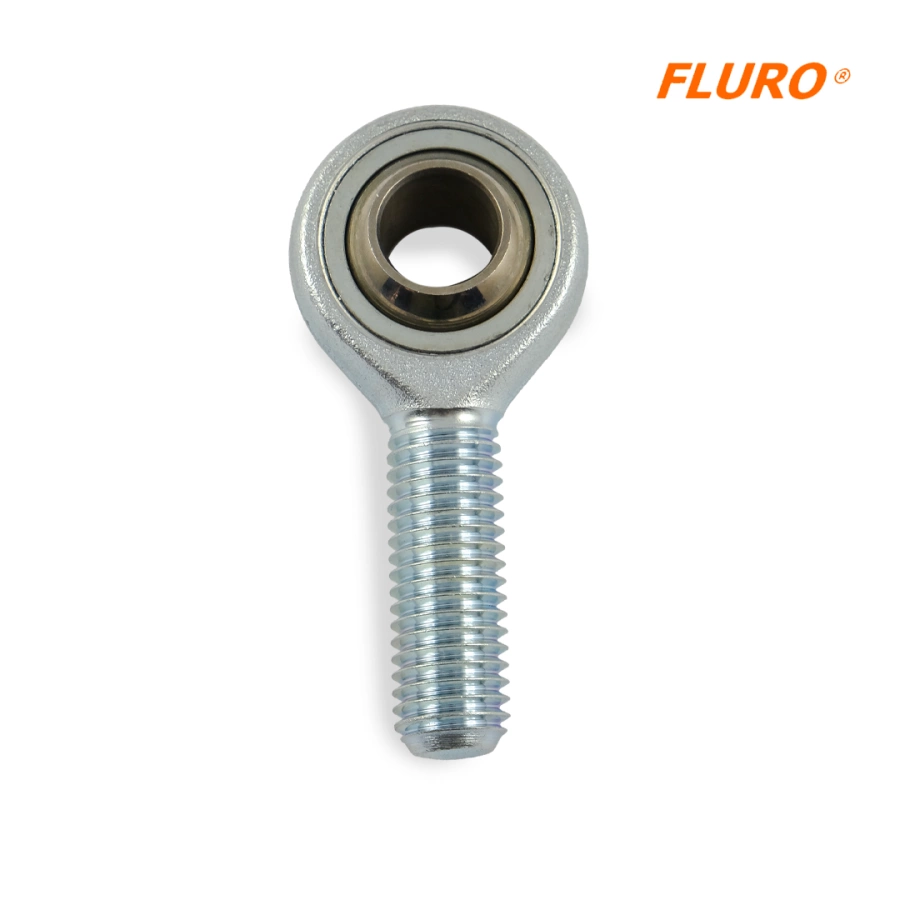

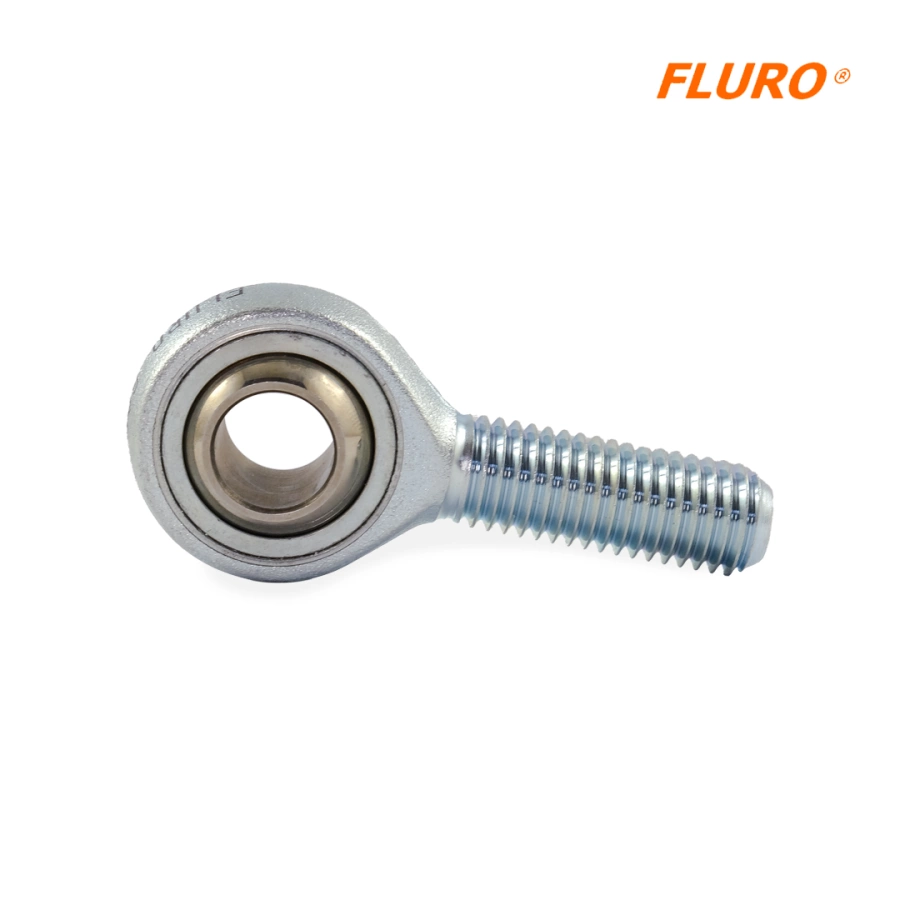

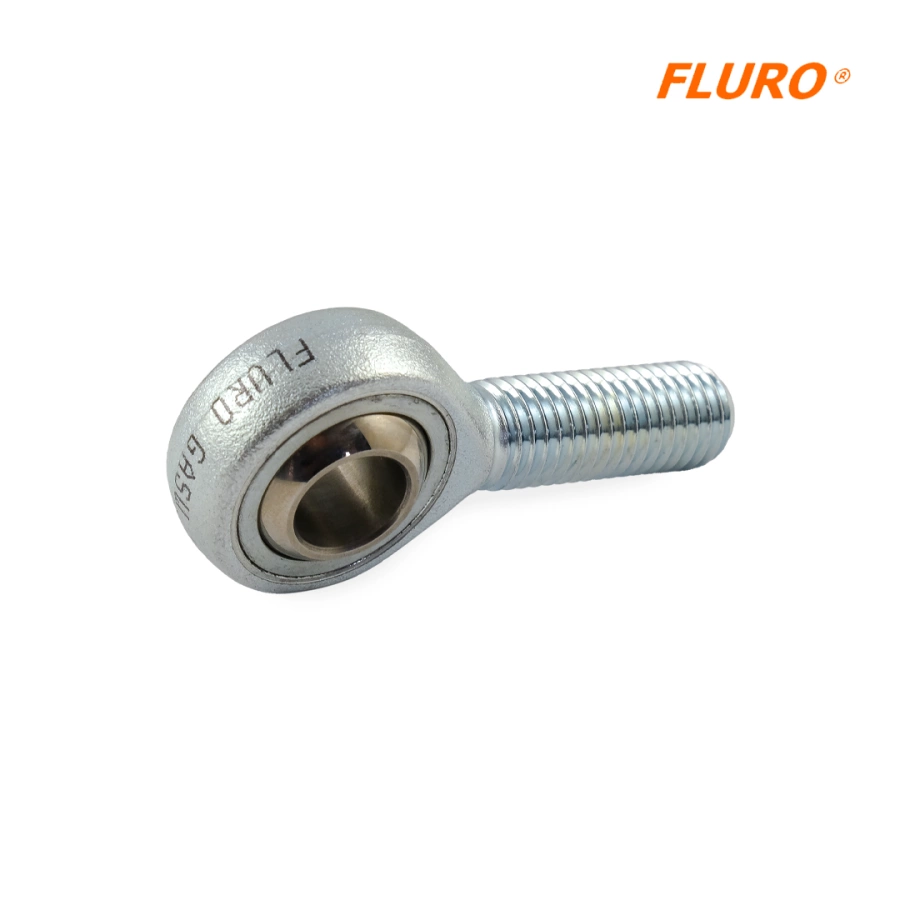

Tie rod end / tie rod end - uniball GASW 25 FLURO - M24x2 (male)
- Tie rod end / tie rod end - uniball GASW 25 FLURO - M24x2 (male)
GASW 25 FLURO Rod End - M24x2
GASW Series - Rod end with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with PTFE insert (maintenance-free).
For use under dynamic load. Dimensional series K - maintenance-free.
Sliding pair - chrome-plated steel/PTFE
Housing:
up to size 12: free-cutting steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged
Bearing liner: free-cutting steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
60 / 2.36"
W - width of the inner ring [mm /inch]
31 / 1.22"
T - width of the outer ring [mm /inch]
22 / 0.87"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
57 / 2.24"
Kąt wychylenia
30°
Maximum static load [kN / lbs]
61.0 / 13713.34
Maximum dynamic load [kN / lbs]
122.0 / 27426.69
Weight
600 g / 1.323 lbs
