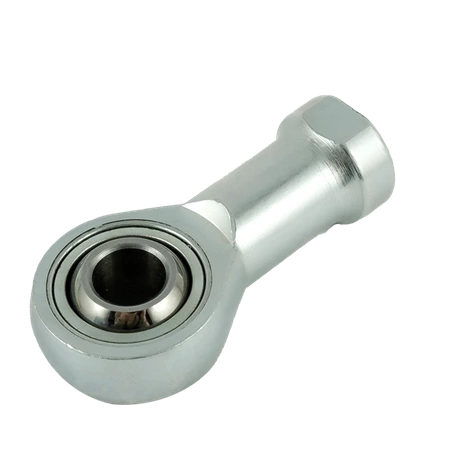

Rod End / Tie Rod End - Uniball GISW 10 FLURO - M10 Right (Female)
Rod End / Tie Rod End - Uniball GISW 10 FLURO - M10 Right (Female)
Rod End / Tie Rod End - Uniball GISW 10 FLURO - M10 Right (Female)
Rod End / Tie Rod End - Uniball GISW 10 FLURO - M10 Right (Female)

Rod End / Tie Rod End - Uniball GISW 10 FLURO - M10 Right (Female)

+ Add to compareAdd to shopping list
  • GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free). For use under dynamic loads.
Size
uniwersalny
15,70 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in very small quantities
The product is available in very small quantities
Free and fast delivery from 16,35 EUR
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Free delivery to parcel machinesMore information
Smile - deliveries from online stores when ordered from EUR16.35 are for free.
You buy and delivery is free!
deliveries from online stores are free when you order EUR16.35 are for free.
Free delivery includes parcel delivery to a parcel machine
Smile is an IdoSell service

FLURO GISW Rod End



GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free).

For use under dynamic loads. Dimensional series K - maintenance-free design.

Friction pair: steel/PTFE

Housing:

up to size 12 - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] turned

from size 14 - heat-treated steel [ DE C22 / FR XC25 / IT C21 / SE 1450 /UK 070M20 / USA M1023 ] forged

size 50 - heat-treated steel [ DE C45 / FR 1C45 / IT C45 / SE 1650 / UK 080M46 / Aisi 1045 ] turned

Bearing bush - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer

Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished

Brand
FLURO
Symbol
GISW 10
Type
Fluro GISW - Series
Thread
M10
Type of thread
Right Internal
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
L- Lenght [mm /inch]
43 / 1.69"
GM - Thread length [mm /inch]
20 / 0.79"
Kąt wychylenia
26°
Maximum static load [kN / lbs]
19.3 / 4338.81
Maximum dynamic load [kN / lbs]
23.4 / 5260.53
Weight
76 g / 0.168 lbs
