![High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]](/hpeciai/3173006c9a3be5a90991b43cb478f9e9/eng_pl_High-Performance-Clutch-Disc-BMW-M57N-M57N2-N57-N54-B57-B58-32-5x35-26N-240mm-9-25-4759_1.webp)

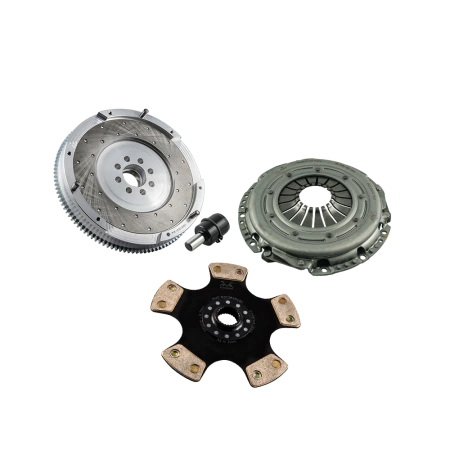

Race Stage 1 BMW M50 S50 M52 S52 M54 S54 - manual 6-speed BMW N54 GS6-53BZ 135i 335i 535i - 240mm / 9.45" 7150g / 15.76lb
- Adapter enabling the connection (swap / conversion) of a BMW M50 M52 M54 S50 S52 S54 engine with a 6-speed manual gearbox ZF GS6-53BZ (ZF Friedrichshafen) from a BMW N54 135i 335i 535i. The flywheel weighs 7150g / 15.76lb,
In a set
![High Performance Clutch Disc BMW M57N M57N2 N57 N54 B57 B58 32,5x35-26N [240mm 9.25"]](/hpeciai/261fa210c1b87f71cb788288d0734dbf/eng_ps_High-Performance-Clutch-Disc-BMW-M57N-M57N2-N57-N54-B57-B58-32-5x35-26N-240mm-9-25-4759_1.webp)

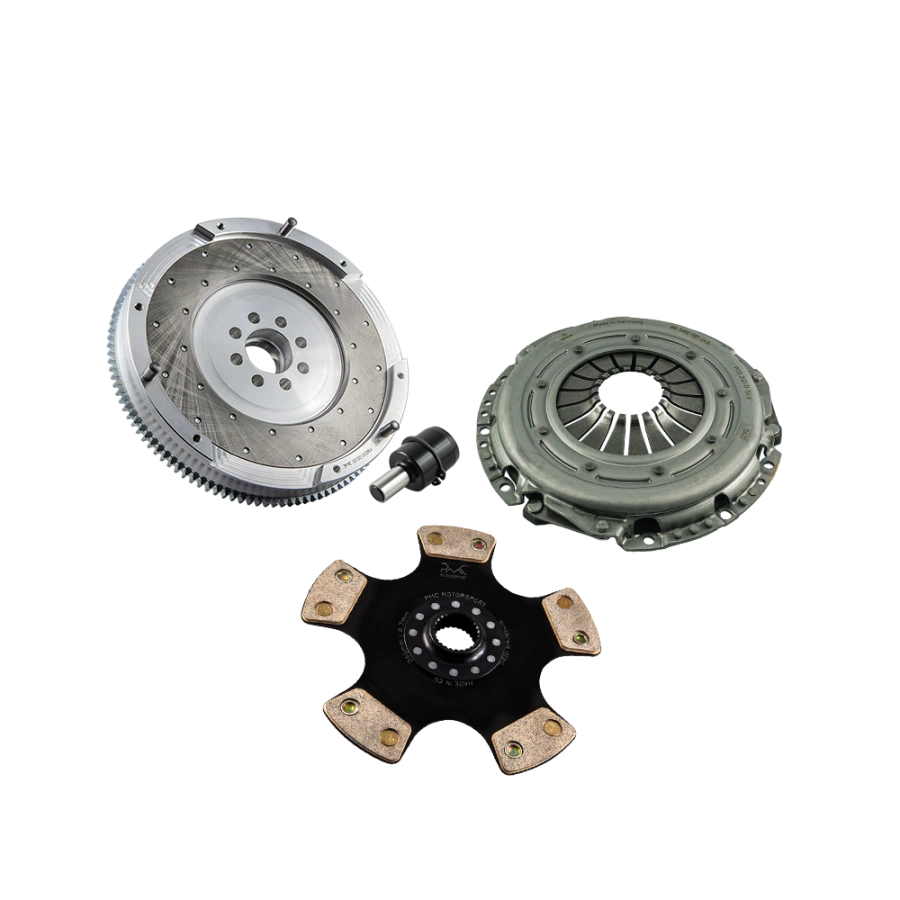

PMC Motorsport Adapter / Flywheel / Clutch Kit BMW M50 S50 M52 S52 M54 S54 - 6-speed manual GS6-53BZ BMW E8x 135i BMW E9x 335i E60 535i N54 - 240mm / 9.45" 7,15kg / 15.76lb + Sachs Performance 883082.001243 + Sintered Disc 32.5x35-26N max. 800Nm / 589.9lb⋅ft

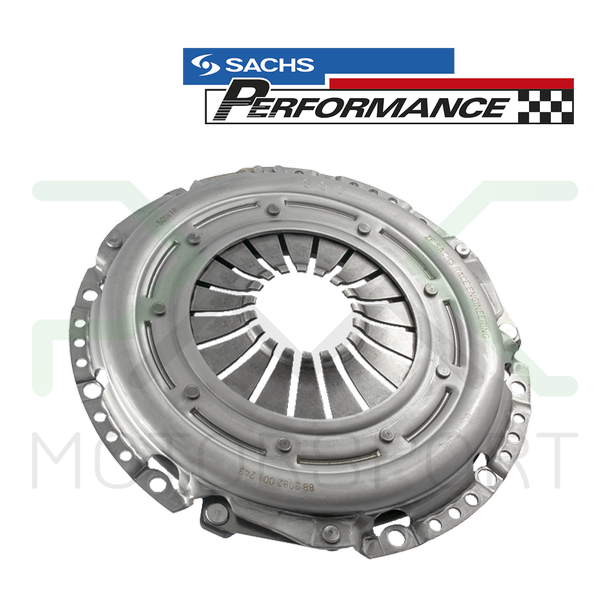

Looking to install a 6-speed gearbox in your BMW? This custom aluminum flywheel / adapter kit allows for the connection (swap / conversion) of the BMW M50 S50 M52 S52 M54 S54 engine with the manual 6-speed ZF (ZF Friedrichshafen) GS6-53BZ gearbox from a BMW. The kit includes a reinforced Sachs Performance 883082.001243 pressure plate without self-adjusters and a PMC 26N sintered disc - maximum torque 800Nm / 589.9lb⋅ft. !!!Due to its characteristics, this kit is intended for motorsport use only!!!
PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection with a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured by our company.
Selection assistance and after-sales support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, they will provide technical support. You can contact us via the contact form.
Individual component purchase
Our offer includes every element of our kit, which can be purchased separately.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used in both daily cars and professional projects intended for motorsport.
From the beginning, we focus on the quality of the parts we manufacture. Every element is inspected after each stage of production. Every component produced by us is engraved with a production serial number.
Quality confirmed by ISO certificate PN-EN ISO 9001:2015
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will calculate shipping costs after the order is placed and add them to the order. You will receive an email with the order cost.
NOTE: The provided shipping quote along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for customers with an active European VAT ID (option for B2B customers outside Poland) and for export outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: |
BMW BMW M50 BMW M52 BMW M54 BMW S50 BMW S52 BMW S54 |
| Compatible gearboxes: |
ZF (ZF Friedrichshafen) S6-53 GS6-53BZ 6-speed ZF S6-53 GS6-53BZ HGX (THGX) BMW N54 E60 535i E9x 335i ZF S6-53 GS6-53BZ JGD (TJGD) BMW N54 E60 535i E9x 335i ZF S6-53 GS6-53BZ JGF (TJGF) BMW N54 E60 535i E9x 335i ZF S6-53 GS6-53BZ JGK (TJGK) BMW N54 E8x 135i Z4 35i ZF S6X53 GS6X53BZ HGY (THGY) BMW N54 E60 535i E9x 335i |
Additional Information
PMC Motorsport parts are intended for motorsport. For use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.
The adapter installation manual contains only basic knowledge necessary for the physical connection of the engine with the gearbox outside the car body.
Depending on the car, additional modifications may occur, such as: fitting mounts, bushings, engine firewall, gearbox tunnel, driveshaft length, etc.
Our adapters are made from materials that are fully recyclable.
Why choose BMW gearboxes?
Availability and Price. Millions of cars produced and their global presence guarantee the availability of spare parts. Both individual parts and complete gearboxes are easily accessible at authorized service centers (ASO) and on the secondary market.
Durability and Reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can handle very high torque (some models 1000Nm+), while ensuring high reliability. They are ideal for SWAP projects in high-power builds intended for daily use.
ZF Friedrichshafen GS6-53BZ
The ZF Friedrichshafen GS6-53BZ 6-speed manual gearbox (S6-53BZ), due to its high durability (1000Nm+) and low price, is an ideal solution for cars prepared for motorsport. Female type spline: 32.5x35-26N
ZF GS6-53BZ Gear Ratios |
||||||
| 1 | 2 | 3 | 4 | 5 | 6 | R |
| 4.055 | 2.396 | 1.582 | 1.192 | 1.000 | 0.872 | 3.677 |
ZF GS6-53BZ HGX THGX |
 |
ZF GS6-53BZ JGD TJGD |
 |
ZF GS6-53BZ JGF TJGF |
 |
ZF GS6-53BZ JGK TJGK |
 |
Installation Manual
FAQ
1. Which gearbox adapter should be used to connect a BMW M50 S50 M52 S52 M54 S54 engine with a BMW N54 6-speed gearbox?

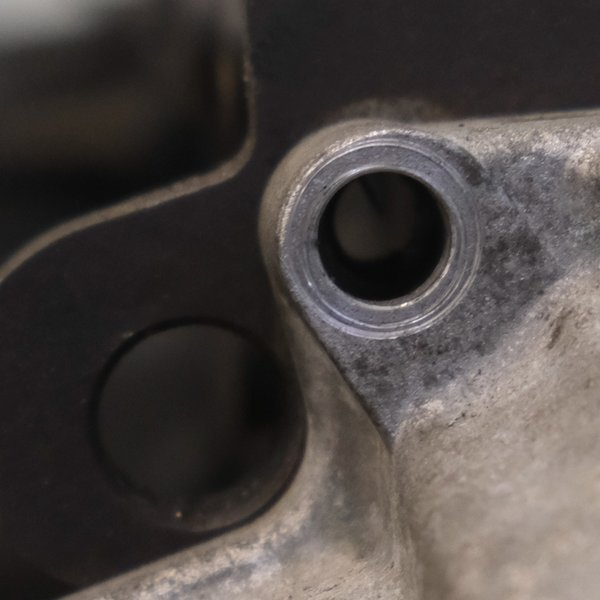

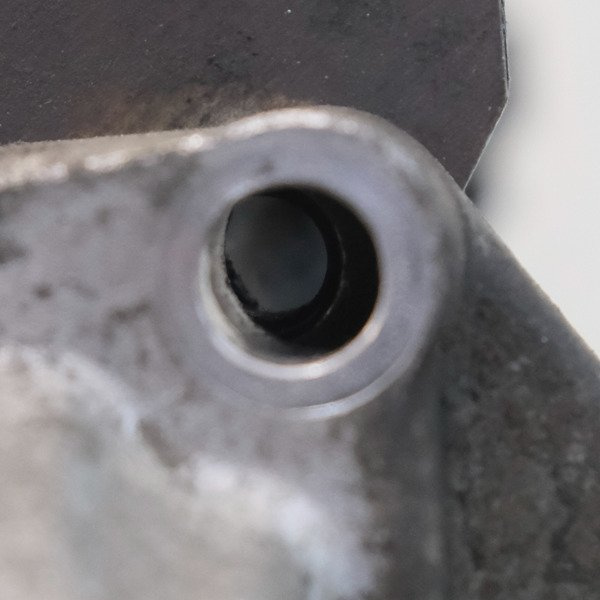

No additional gearbox adapter is required to connect the BMW M50 S50 M52 S52 M54 S54 engine with the manual 6-speed gearbox from a BMW N54. The installation is practically P&P; the two upper holes of the GS6-53BZ gearbox must be slightly ground for proper fitment - this procedure does not affect the centering of the engine and gearbox.
2. Which starter motor should be used to connect a BMW M50 S50 M52 S52 M54 S54 engine with a BMW N54 6-speed gearbox?
When using the PMC Motorsport custom flywheel for BMW M50 S50 M52 S52 M54 S54 - GS6-53BZ N54, the original BMW OE starter from the M50 S50 M52 S52 M54 S54 engine remains.
BMW M50
- BMW M50B20
- BMW M50TUB20
- BMW M50B25
- BMW M50TUB25
BMW M52
- BMW M52B20
- BMW M52B25
- BMW M52B28
- BMW M52TUB20
- BMW M52TUB25
- BMW M52TUB28
BMW M54
- BMW M54B22
- BMW M54B25
- BMW M54B30
BMW S50
- BMW S50B30
- BMW S50B32
BMW S52
- BMW S52B32
BMW S54
- BMW S54B32
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215
- BMW 3' E90 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E90 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E91 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E92 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 3' E93 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
- BMW 5' E60 LCI 535i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240
- BMW 3' E90 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E91 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E92 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
- BMW 3' E93 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK
- Bell housing : 1067 401 127 / 1067401127
- Sticker number 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859
- BMW 1' E82 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW 1' E88 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
- BMW Z4' E89 35i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGY code HGY (xDrive)
- Bell housing : 1067 401 127 / 1067401127
- Sticker number : 1067 012 011 / 23.00-7565216 / 2300 7565216 /23007565216
- BMW 3' E90 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E90 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E91 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E92 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 3' E93 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
- BMW 5' E60 LCI 535xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
