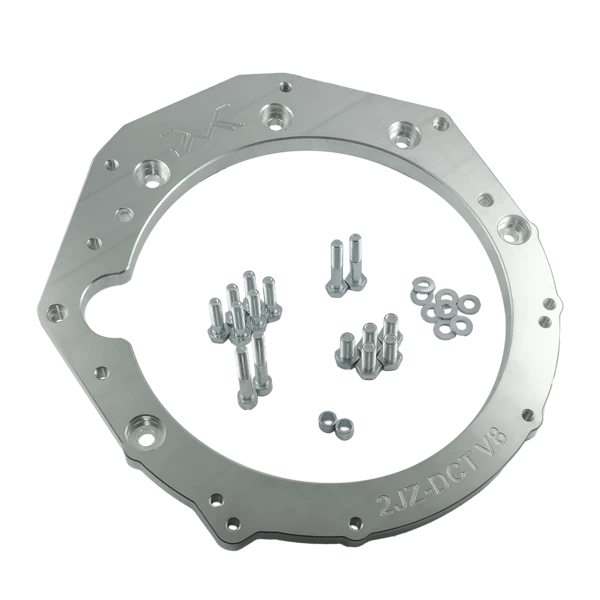

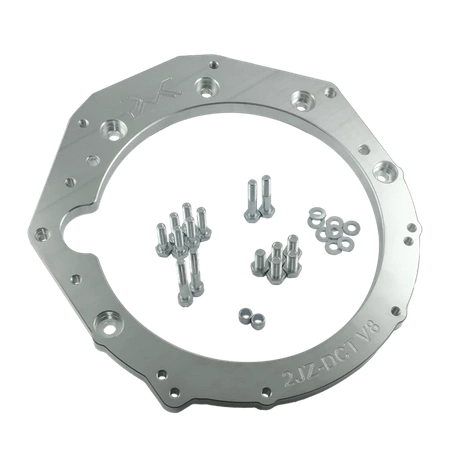

Toyota JZ - BMW DCT DKG GS7D36SG S65 V8 Gearbox Adapter

Toyota JZ - BMW DCT DKG GS7D36SG S65 V8 Gearbox Adapter

  • Aluminium adapter plate designed for the conversion of the Toyota JZ 1JZ 2JZ with the BMW DCT DKG Getrag GS7D36SG E90 E91 E92 E93 M3 S65 V8 gearbox
365,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in very small quantities
The product is available in very small quantities
14 days for easy returns
This product is not available in a stationary store
Safe shopping

Save by buying more

PMC Motorsport aluminum gearbox adapter (flange / flange) Toyota JZ - BMW DCT DKG GS7D36SG S65 V8

Do you want to combine the Toyota JZ engine with the BMW DCT DKG GS7D36SG S65 V8 gearbox? Our gearbox adapter is the perfect solution for you. Aluminum gearbox adapter designed to simplify the installation of the gearbox as much as possible, avoiding radical actions such as cutting off the entire gearbox bell - all that remains is to prepare the hole for the starter.

PMC Motorsport gearbox adapters are synonymous with precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensure perfect fit. Production on modern CNC machines guarantees perfect coaxiality of the engine and gearbox, which is crucial for the durability of the drive system.

Our entire production and R&D design department are located in Poland. Over 90% of the elements are manufactured by our company.

Help in choosing and after-sales support - Support PMC Motorsport

The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during installation, he will provide technical support. You can contact us via the contact form.

Single item purchase

Our offer includes every element of our set, which can be purchased separately.

Thousands of adapters produced and satisfied customers around the world.

The PMC Motorsport adapter is used both in everyday cars and in professional motorsport projects.

From the very beginning, we have focused on the quality of the parts we produce. After each stage of production, the element is inspected. Each component we produce is engraved with the production serial number.

We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate

We send our products to virtually all countries in the world. European Union countries (except islands) and the UK have shipping calculated automatically. For countries not on the list, after placing your order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the cost of your order.

NOTE The shipping quote sent along with the product price does not include additional fees/duties that may occur depending on the shipping country.

VAT 0%

VAT 0% for Customers with active European VAT (option for B2B customers from outside Poland) and in the case of export outside the EU.

After positive verification in the VIES system, we modify the order by removing the VAT charged from the order.

Matching engines Matching gearboxes

Toyota JZ

Toyota 1JZ

Toyota 2JZ

BMW GETRAG DKG DCT V8 S65

GS7D36SG - 28 00 7 843 004 / 28 00 7843004

GS7D36SG - 28 00 7 842 377 / 28 00 7842377

GS7D36SG - 28 00 2 283 701 / 28 00 2283701

GS7D36SG - 28 00 7 842 585 / 28 00 7842585

GS7D36SG - 28 00 7 843 003 / 28 00 7843003

GS7D36SG - 28 00 7 843 001 / 28 00 7843001

GS7D36SG - 28 00 7 843 002 / 28 00 7843002

GS7D36SG - 28 00 7 842 999 / 28 00 7842999

GS7D36SG - 28 00 7 843 000 / 28 00 7843000

Additional information

PMC Motorsport parts are designed for motorsport. For use on racetracks

Parts intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.

The adapter installation instructions contain only the basic knowledge necessary to physically connect the engine with the gearbox outside the car body.

Depending on your car, additional modifications may occur, such as: adjustment of mountings, engine mounts and bulkhead, gearbox tunnel, drive shaft length, etc.

We make adapters from fully recyclable materials.

Mounting instructions

Symbol
F0DCT-V8-JZ
Producer code
5903707405831
Toyota engine list
Toyota 1JZ (non VVT-i / VVT-i version)More

  • Toyota 1JZ-FSE
  • Toyota 1JZ-GE
  • Toyota 1JZ-GTE
Toyota 2JZ (non VVT-i / VVT-i version)More

  • Toyota 2JZ-FSE
  • Toyota 2JZ-GE
  • Toyota 2JZ-GTE
Automatic dual-clutch GETRAG DCT DKG GS7D36SG list:
GETRAG DCT DKG GS7D36SG BMW V8 S65 E9x M3 More

BMW GETRAG DKG DCT GS7D36SG S65B40A V8

  • GS7D36SG - 28 00 7 843 004 / 28 00 7843004
  • GS7D36SG - 28 00 7 842 377 / 28 00 7842377
  • GS7D36SG - 28 00 2 283 701 / 28 00 2283701
  • GS7D36SG - 28 00 7 842 585 / 28 00 7842585
  • GS7D36SG - 28 00 7 843 003 / 28 00 7843003
  • GS7D36SG - 28 00 7 843 001 / 28 00 7843001
  • GS7D36SG - 28 00 7 843 002 / 28 00 7843002
  • GS7D36SG - 28 00 7 842 999 / 28 00 7842999
  • GS7D36SG - 28 00 7 843 000 / 28 00 7843000
ADDITIONAL INFORMATION
Custom flywheel required
Yes
Gearbox adapter thickness
20mm / 0.78"
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Dowel Pins
Material
Aluminium
Product sales codes included
F0DCT-V8-JZ (3028)
