Adapter GM Chevrolet 8-bolts - BMW DCT DKG Getrag GS7D36SG N54 N55 S55

  • PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set) GM Chevrolet V8 LS - BMW N54 N55 S55 DCT DKG Getrag GS7D36SG (Ultralight)
  • Adapter GM Chevrolet 8-bolts - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
  • Adapter GM Chevrolet 8-bolts - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
  • Adapter GM Chevrolet 8-bolts - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
  • Adapter GM Chevrolet 8-bolts - BMW DCT DKG Getrag GS7D36SG N54 N55 S55
  • Ultralight Flywheel GM Chevrolet V8 LSX - BMW DCT DKG GS7D36SG R6
  • Gearbox adapter plate GM Chevrolet LS - BMW Manual M57N N54 N57 N47 / automatic DCT 8HP
919,00 EUR
/ set
You save -24.53% (-181.00EUR) when buying in a set.

Easy product returns

Buy a product and check it in your own time, at home.
You can return the product without providing a reason within 14 days.
Show details
14 days to withdraw from the contract
Your satisfaction is very important to us, therefore you can make a return without providing a reason within 14 days.
No stress and worry
We care about your comfort, that's why our shop offers returns on favorable terms.
Easy returns wizard
All returns processed by our shop are managed in a easy-to-use returns wizard which gives you the ability to send a return parcel.

PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set) GM Chevrolet V8 LS - BMW N54 N55 S55 DCT DKG Getrag GS7D36SG (Ultralight)

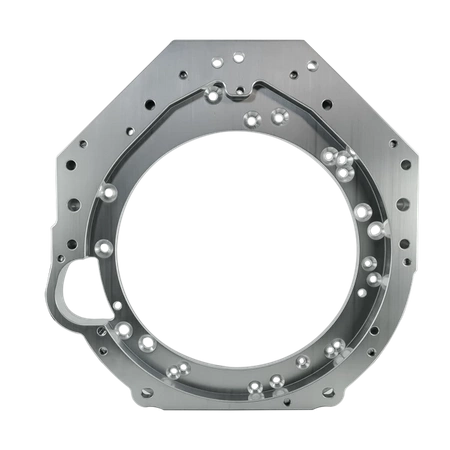

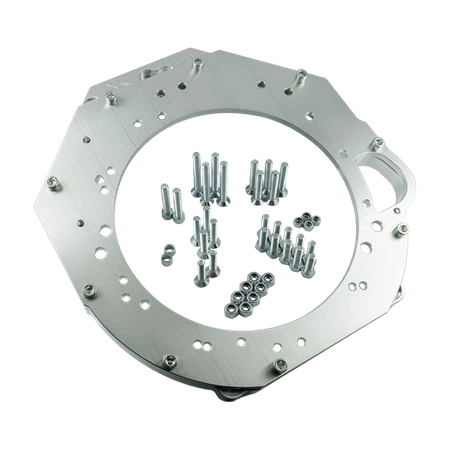

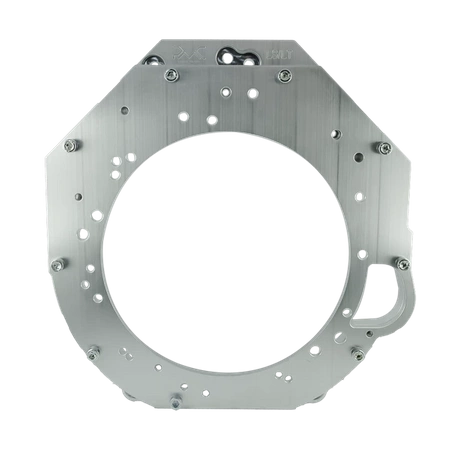

Aluminium adapter plate designed for the conversion of the GM Chevrolet LS LSX LSA LT1 LT4 with the DCT DKG Getrag GS7D36SG



Why choose PMC Motorsport parts and adapters?

  • Experience. Thousands of manufactured adapters and satisfied customers around the world. Our adapters are used both in Daily cars and in professional motorsport projects.
  • Professionalism. From design to implementation, our parts go a long way. We have measured each element for which we produce parts with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems in its use. For our production, we use only certified materials from reliable suppliers. We have a modern park of CNC machines and experienced employees.
  • Quality. From the beginning, we focus on the quality of the parts we manufacture. After each stage of production, the element is inspected. Each component we manufacture is engraved with the production serial number. We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate
  • Perfect alignment - our adapters guarantee a perfect fit of the engine and gearbox
  • Made in EU. All our production and design departments are located in the European Union
  • Help in choosing and After-sales support. Our team will help you choose the right product. And in case of doubt during installation, he will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com





Engine list:

  • GM General Motors Chevrolet LSX 376
  • GM General Motors Chevrolet LSX Long Block 454
  • GM General Motors Chevrolet LSA
  • GM V8 Small Block Chevrolet LT1 5.GEN
  • GM V8 Small Block Chevrolet LT4 5.GEN


Automatic BMW GETRAG DKG DCT gearbox list :

  • BMW GETRAG DKG DCT GS7D36SG N54 S55 N55 7-speed
    • GS7D36SG - BMT 28 00 7 640 956 / 28 00 7640956
    • GS7D36SG - 28 00 7 585 538 / 28 00 7585538
    • GS7D36SG - 28 00 8 482 016 / 28 00 8482016
    • GS7D36SG - ABW 28 00 7 853 541 / 28 00 7853541
    • GS7D36SG - ABY 28 00 7 853 542 / 28 00 7853542
    • GS7D36SG - AC2 28 00 7 853 546 / 28 00 7853546
    • GS7D36SG - AC5  28 00 7 853 549 / 28 00 7853549
    • GS7D36SG - ADE 28 00 7 853 550 / 28 00 7853550
    • GS7D36SG - AEA 28 00 7 853 551 / 28 00 7853551
    • GS7D36SG - AEB 28 00 7 853 552 / 28 00 7853552
    • GS7D36SG - AEE 28 00 7 853 554 / 28 00 7853554
    • GS7D36SG - AEG 28 00 7 853 555 / 28 00 7853555
    • GS7D36SG - AEP 28 00 7 853 557 / 28 00 7853557



Manual





 Made in EU

 ISO certificate

Worldwide shipping

30 Return Policy | * refundable option covers only unused products!

Tech specs:
GM Chevrolet engine list:
Chevrolet LT1 V-GEN 8-śrub wału korbowego

GM 6.2 Liter V8 Small Block LT1

Displacement: 6.2L / 376 cu. in.
Aspiration: Natural
Introduced: 2014 model year
Discontinued: -
Predecessor: LS3 / Gen 4 Small Block
Successor: LT2
Assembly: Tonawanda, New York



Specifications

Type: 6.2L Gen V V8 Small Block
Displacement: 6.2L (6162cc / 376 ci)
Engine orientation: Longitudinal
Compression ratio: 11.5:1
Valve configuration: Overhead valves
Valves per cylinder: 2
Assembly site: Tonawanda, New York, USA
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 103.25 x 92mm
Fuel system: Direct Injection
Fuel type: Premium Recommended
Maximum Engine Speed: 6600 RPM
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Composite
Exhaust manifold: Cast Nodular Iron
Main bearing caps: Cast Nodular
Crankshaft: Forged Steel
Camshaft: Billet Steel
Connecting rods: Forged Powder Metal
Additional Features
Active Fuel Management
Variable Valve Timing (VVT)
Electronic throttle control
Extended life accessory drive belt
Extended life coolant
Extended life spark plugs
Oil Life Monitor System
Dexos 5W30
Dual-pressure control and variable displacement oil pump
58x crank timing
Emissions Controls
Catalytic converter
Three-way catalyst
Positive crankcase ventilation



Vehicle Applications

  • 2014 Chevrolet C7 Corvette Stingray Base Exhaust
  • 2014 Chevrolet C7 Corvette Stingray Performance Exhaust
  • 2015-2019 Chevrolet C7 Corvette Stingray Base Exhaust
  • 2015-2019 Chevrolet C7 Corvette Stingray Performance Exhaust
  • 2017-2019 Chevrolet C7 Corvette Grand Sport
  • 2016-present Chevrolet Camaro SS
  • 2020-present Chevrolet Camaro LT1
,
Chevrolet LT4 V-GEN 8-śrub wału korbowego

GM 6.2 Liter Supercharged Small Block V8 LT4

Displacement: 6.2L / 376 cu. in.
Aspiration: Forced Induction (Supercharger)
Introduced: 2014 model year
Discontinued: -
Predecessor: LS9 / Gen 4 Small Block
Successor: -
Assembly: Tonawanda, New York (Z06, CTS-V, ZL1); Performance Build Center, Bowling Green Kentucky (CT5-V Blackwing)



Specifications


Displacement: 6162cc (376 ci)
Engine Orientation: Longitudinal
Compression ratio: 10.0:1
Valve configuration: Overhead valves
Valves per cylinder: 2
Assembly sites
For CTS-V, Camaro ZL1 Tonawanda, New York
For Corvette Z06: Bowling Green, Kentucky
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 103.25 x 92mm
Fuel system: DI
Fuel Type: Premium required
Maximum Engine Speed: 6600 RPM
Drive Belt Rib Count: 8
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Cast Aluminum Supercharger
Exhaust manifold: Cast Stainless (Corvette) or Fabricated Stainless (CTS-V)
Main bearing caps: Cast Nodular
Crankshaft: Forged steel
Camshaft: Billet Steel
Connecting rods: Forged Powder Metal
Emissions Controls
Catalytic converter
Three-way catalyst
Positive crankcase ventilation
Additional Features
1.74 L/rev Supercharger
Integrated dual coolant-to-air-intercoolers
Active Fuel Management
Variable Valve Timing (VVT)
Electronic throttle control
Extended life coolant
Extended life spark plugs
Oil Life Monitor System
Dexos 5W30
Dual-pressure control and variable displacement oil pump
Dry sump (Corvette only)
58x crank timing



Vehicle Applications

  • 2015 – 2019 Chevrolet C7 Corvette Z06 GM
  • 2015 – 2019 Chevrolet C7 Corvette Z06
  • 2016 – 2019 Cadillac CTS-V Sedan
  • 2017 – present Chevrolet Camaro ZL1
  • 2017 – present Chevrolet Camaro ZL1
  • 2022 – present Cadillac CT5-V Blackwing
  • 2022 – present Cadillac CT5-V Blackwing
  • 2023 – present Cadillac Escalade-V
,
Chevrolet LSX 376 454 8-śrub wału korbowego
,
Chevrolet LSA 8-śrub wału korbowego

GM 6.2 Liter V8 Supercharged LSA Engine

Displacement:6.2L / 376 cu. in.
Aspiration: Supercharged
Introduced: 2009 model year
Discontinued: 2015
Predecessor: LS3 / Gen IV Small Block
Successor: LT4 / Gen V Small Block
Assembly: St. Catharines, Ontario, Canada



Specifications

GM 6.2L V8 Supercharged LSA Engine Specs
Type: 6.2L Gen IV V8 Small Block
Displacement: 6162 cc (376 ci)
Engine Orientation Longitudinal
Compression ratio: 9.1:1
Valve configuration: Overhead valves (2 valves per cylinder)
Assembly site: Silao, Mexico
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 103.25 x 92 mm
Fuel system: Sequential fuel injection
Fuel Type: Premium required
Maximum Engine Speed: 6200 RPM
Materials
Block: Cast aluminum
Cylinder head: A356-T6 rotocast cast aluminum
Intake manifold: Cast aluminum
Exhaust manifold CTS: High silicon / high moly cast iron
Exhaust manifold Camaro: Cast stainless steel
Main bearing caps: Nodular Iron
Crankshaft: Forged steel
Camshaft: Hollow steel
Connecting rods: Forged powder metal
Additional features
1.9 L/rev Supercharger
Integrated single coolant to air intercooler
Piston oil spray cooling
Direct mount ignition coils
Emissions controls
Catalytic converter
Three-way catalyst
Positive crankcase ventilation
Valves per cylinder 2
Bore Center (mm) 111.76



Vehicle Applications

  • 2012-2015 Chevrolet Camaro ZL1
  • 2008-2013 Cadillac CTS-V
,
GM 5.3 Liter V8 EcoTec3 L83
,
GM 5.3 Liter V8 EcoTec3 L84
,
GM 6.2 Liter V8 EcoTec3 L87
Automatic dual-clutch GETRAG DCT DKG GS7D36SG list::
BMW N54 N55 DCT DKG GS7D36SG

BMW GETRAG (GETRAG GS7D36SG) DCT DKG 7-speed

  • BMW Engine: N54 N54B30A / N55 N55B30A
  • BMW OE:  28007585538 / 28 00 7585538
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.780
  • 2 - 2.933
  • 3 - 2.153
  • 4 - 1.678
  • 5 - 1.390
  • 6 - 1.203
  • 7 - 1.000

BMW 1-Series 1er E82 E88

  • 135i N55B30 Coupé ECE
  • 135i N55B30 Coupé USA

BMW 3-Series 3er E92 E93 LCI

  • 335i N54 ECE
  • 335i N55 ECE
  • 335i N55T USA

BMW Z4 E89

  • Z4 35i N54
  • Z4 35i N54
  • Z4 35is N54T
  • Z4 35is N54T
,
BMW N54 DCT DKG BE2 GS7D36SG

BMW GETRAG (GETRAG GS7D36SG) DCT DKG BE2 7-speed

  • BMW Engine: N54 N54B30A
  • BMW OE:  28008647464 / 28 00 8647464
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.780
  • 2 - 2.933
  • 3 - 2.153
  • 4 - 1.678
  • 5 - 1.390
  • 6 - 1.203
  • 7 - 1.000

BMW 3-Series 3er E92 E93 LCI

  • 335i N54 ECE

BMW Z4 E89

  • Z4 35i N54
  • Z4 35i N54
  • Z4 35is N54T
  • Z4 35is N54T
,
BMW N55 DCT DKG GS7D36SG AC2

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAC2 AC2 7-speed

  • BMW Engine:  N55 N55B30A
  • BMW OE: 28 00 7853546 / 28007853546
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA
,
BMW N55 S55 DCT DKG GS7D36SG ABE

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TABE ABE 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28007853552 / 28 00 7853552
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA
,
BMW N55 S55 DCT DKG GS7D36SG AEB

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAEB AEB 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28007853552 / 28 00 7853552
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA
,
BMW N55 S55 DCT DKG GS7D36SG AEP

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAEP AEP 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28 00 7853557 / 28007853557
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA
  • M2 Competition S55 Coupé ECE
  • M2 Competition S55 Coupé USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA
,
BMW N55 S55 DCT DKG GS7D36SG AE2

BMW GETRAG (GETRAG GS7D36SG) DCT DKG TAE2 AE2 7-speed

  • BMW Engine:  N55 N55B30A / S55B30A
  • BMW OE: 28 00 7853559 / 28007853559
  • Bell housing:
  • Sticker number:

Ratio:

  • R - 4.350
  • 1 - 4.806
  • 2 - 2.593
  • 3 - 1.707
  • 4 - 1.277
  • 5 - 1.000
  • 6 - 0.844
  • 7 - 0.671

BMW 2-Series 2er E87 LCI M2

  • M2 N55 ECE
  • M2 N55 USA
  • M2 Competition S55 Coupé ECE
  • M2 Competition S55 Coupé USA
  • M2 CS S55 Coupé ECE
    M2 CS S55 Coupé USA

BMW 3-Series 3er E80 LCI M3

  • M3 S55 ECE
  • M3 N55 US

BMW 4-Series 4er E82 E83 LCI M4

  • M4 S55 Coupé ECE
  • M4 S55 Coupé USA
  • M4 GTS S55 Coupé ECE
  • M4 GTS S55 Coupé USA
  • M4 CS S55 Coupé ECE
  • M4 CS S55 Coupé USA
  • M4 S55 Cabrio ECE
  • M4 S55 Cabrio USA

MS BMW Motorsport

  • F82 M4 GT4 S55 Coupé USA
  • M2 CS Racing S55 Coupé USA
Clutch Set
Set with Clutch:
No
Flywheel Type:
Single mass
Starter required (not included):
GM Chevrolet LSX LSA LT1 OE
Flexplate / ring gear / Drive plate required:
GM Chevrolet LSX LSA LT1 LT4 OE
ADDITIONAL INFORMATION
Adapter Kit Type:
Motorsport
Gearbox adapter thickness:
35mm / 1.37"
Set includes:
Aluminium gearbox adapter
,
Gearbox adapter bolts
,
Custom Flywheel
,
Crankshaft bolts kit
,
Piasta DCT
Product sales codes included:
K0DCT-R6-LSX /L (3114)
,
F0M57-LS
Ask for this product

If this description is not sufficient, please send us a question to this product. We will reply as soon as possible.

Data is processed in accordance with privacy policy. By submitting data, you accept privacy policy provisions.

Fields marked with asterisk are required
Users reviews
pixel
