Gearbox adapter BMW M60 M62 - BMW M50 M52 M54 M57 S50 S52 S54 DCT N54
Gearbox adapter BMW M60 M62 - BMW M50 M52 M54 M57 S50 S52 S54 DCT N54
Gearbox adapter BMW M60 M62 - BMW M50 M52 M54 M57 S50 S52 S54 DCT N54
Gearbox adapter BMW M60 M62 - BMW M50 M52 M54 M57 S50 S52 S54 DCT N54
Our bestseller

Gearbox adapter BMW M60 M62 - BMW M50 M52 M54 M57 S50 S52 S54 DCT N54

+ Add to compareAdd to shopping list

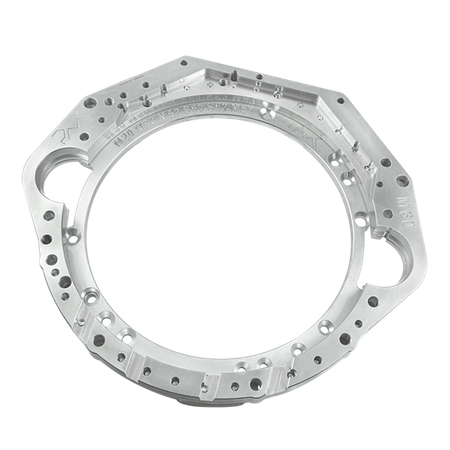

  • PMC Motorsport aluminum gearbox adapter plate BMW V8 M60 M62 – BMW ZF-5 / Getrag 420G / GS6-37BZ / GS6-17BZ / GS6-53BZ / GS6-45BZ / S5D-280Z / GS5-39DZ / GS6-37DZ / GS6-53DZ HGA / ZF 6HP / DCT DKG GS7D36SG
Size
uniwersalny
449,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
Cheap and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping

PMC Motorsport – aluminum gearbox adapters

PMC Motorsport aluminum gearbox adapter plate BMW V8 M60 M62 – BMW ZF-5 / Getrag 420G / GS6-37BZ / GS6-17BZ / GS6-53BZ / GS6-45BZ / S5D-280Z / GS5-39DZ / GS6-37DZ / GS6-53DZ HGA / ZF 6HP / DCT DKG GS7D36SG

Aluminum adapter plate enabling the connection (swap / conversion) of the BMW V8 M60 / M62 engine with a manual or automatic ZF (ZF Friedrichshafen) / Getrag gearbox from BMW. The adapter supports manual gearboxes from petrol engines – ZF-5, Getrag 250G, Getrag 420G, GS6-37BZ, GS6-17BZ, GS6-53BZ, GS6-45BZ – and diesel engines – S5D-280Z, GS5-39DZ, GS6-37DZ, GS6-53DZ HGA / HGB – as well as automatic ZF 6HP and dual-clutch Getrag DCT DKG GS7D36SG.

Are you planning an engine swap of the BMW V8 M60 / M62 engine into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Or maybe you want to replace the factory gearbox in a BMW with an M60 / M62 engine (e.g. E38, E39, E31, X5 E53) with a BMW manual gearbox, such as ZF-5, Getrag 420G or GS6-53BZ, or a dual-clutch Getrag DCT? In both cases, our adapter is a reliable solution. Gain a durable BMW gearbox with 5, 6, or 7 speeds and easy access to spare parts.

The aluminum gearbox adapter plate was designed to simplify gearbox installation as much as possible, avoiding radical steps like cutting off the entire bellhousing – only the starter motor clearance needs to be prepared. The adapter requires a custom PMC Motorsport flywheel matched to the chosen gearbox (sold separately).

PMC Motorsport gearbox adapters are synonymous with precision and top quality. A design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal engine-gearbox concentricity, which is crucial for powertrain durability.

PMC Motorsport production in Poland

Our entire production and R&D department are located in Poland. Over 90% of components are manufactured in-house.

Help with selection and after-sales support – PMC Motorsport Support

The PMC Motorsport team will help you choose the right kit and provide technical support in case of any doubts during installation. You can contact us via the contact form.

Purchase of individual components

Every element of the kit can be purchased separately.

PMC Motorsport ISO 9001:2015 Certificate

Thousands of produced adapters and satisfied customers all over the world.

PMC Motorsport adapters are used in both daily drivers and professional motorsport projects.

From the beginning, we focus on the quality of the parts we manufacture. After each production stage, the component is inspected. Every part produced by us is engraved with a production serial number.

We confirm quality with the PN-EN ISO 9001:2015 certificate.

PMC Motorsport worldwide shipping

We ship our products to virtually all countries worldwide. For European Union countries (excluding islands) and the United Kingdom, shipping costs are calculated automatically. For countries outside the list, after placing an order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the total order cost.

NOTE: The provided shipping quote together with the product price does not include additional fees / customs duties that may occur depending on the destination country.

0% VAT

0% VAT for customers holding an active EU VAT number (B2B option outside Poland) and in the case of exports outside the EU.

After positive verification in the VIES system, we modify the order by removing the charged VAT.

Why choose a BMW gearbox?

Availability and price. Millions of cars produced worldwide guarantee easy access to spare parts. Both parts and complete gearboxes are readily available at official dealerships and on the secondary market.

Strength and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can withstand very high torque (some models 1000 Nm+), while guaranteeing high reliability. They are ideal for swaps in high-power projects intended for daily use.

Speed and convenience. When using a Getrag DCT DKG dual-clutch transmission, you get lightning-fast gear changes.

Matching engines:

BMW V8 M60

BMW M60B30, M60B40

BMW V8 M62

BMW M62B35, M62TUB35, M62B44, M62TUB44, M62B46, M62TUB46, M62B48
Matching manual gearboxes – petrol:

GETRAG S5D-250G (S5D250) 5-speed

BMW M50 M52

ZF ZF-5 S5D-310 (ZF 310 / S5-31) 5-speed

BMW M50

ZF ZF-5 S5D-320 (ZF 320 / S5-32) 5-speed

BMW M50 M52 S50 S52 S54

GETRAG 420G 6-speed (inline engines only)

Getrag 420G TBAB – BMW E36 M3 S50

Getrag 420G TAGU – BMW E36 M3 S50

Getrag 420G TBAI – BMW E46 M3 S54

ZF S6-37 GS6-37BZ 6-speed

ZF GS6-37BZ THEG – BMW M54

ZF GS6-37BZ JEP (TJEP) – BMW N52 N52N N53

ZF GS6-37BZ JEM (TJEM) – BMW N52 N52N N53

ZF S6X37 GS6X37BZ – BMW M54 N52 N53

ZF S6-17 GS6-17BZ 6-speed

ZF GS6-17BZ APX (TAPX) – BMW N52 N52N N53

ZF S6-53 GS6-53BZ 6-speed

ZF GS6-53BZ HGX (THGX) – BMW E60 535i E9x 335i N54

ZF GS6-53BZ JGD (TJGD) – BMW E60 535i E9x 335i N54

ZF GS6-53BZ JGF (TJGF) – BMW E60 535i E9x 335i N54

ZF GS6-53BZ JGK (TJGK) – BMW E8x 135i Z4 35i N54

ZF S6X53 GS6X53BZ HGY (THGY) – BMW E60 535i E9x 335i N54

ZF S6-45 GS6-45BZ 6-speed

ZF GS6-45BZ HD4 (THD4) – BMW E8x 135i E9x 335i F10 335i N55

ZF GS6-45BZ HAP (THAP) – BMW B58 F30 340i F32 440i

ZF S6X45 GS6X45BZ – BMW E60 535i E9x 335i N55
Matching manual gearboxes – diesel:

ZF S5D-280 5-speed

ZF S5D-280Z – BMW E39 520d E46 320d M47

ZF S5-39 GS5-39DZ 5-speed

ZF GS5-39DZ THBA THBM THBG THBK THBC – BMW E39 530d 525d E46 330d M57 M57D306D1

ZF S6-37 GS6-37DZ 6-speed

ZF GS6-37DZ – BMW M47N M47N2

ZF GS6X37DZ – BMW M47N M47N2

ZF S6-53 GS6-53DZ 6-speed

ZF GS6-53DZ HGA (THGA) – BMW E46 330d M57N M57D306D2

ZF S6X53 GS6X53DZ HGB (THGB) – BMW E46 330d M57N M57D306D2
Matching automatic gearboxes:

ZF 6HP26 6-speed

ZF GA6HP26 – BMW M57N M57N2 (diesel)

ZF 6HP26X 6-speed (xDrive)

ZF GA6HP26X – BMW M57N M57N2 (diesel)

ZF 6HP28X 6-speed (xDrive)

ZF GA6HP28X – BMW M57N2 (diesel)

Dual-clutch Getrag DCT DKG

Getrag DKG DCT GS7D36SG 7-speed – BMW N54 N55 S55

Additional information

Parts intended for motorsport – installation by professionals

PMC Motorsport parts are intended for motorsport and race track use.

Installation should be carried out by professionals with knowledge in engine swaps and car modifications – in workshops and using properly adapted tools.

PMC Motorsport adapter installation manual

The adapter installation manual contains only basic knowledge necessary to physically connect the engine with the gearbox outside the car body.

Depending on your specific car, additional modifications may be required, such as adjusting mounts, engine/gearbox mounts, firewall, transmission tunnel, driveshaft length, etc.

Fully recyclable materials

We manufacture our adapters using fully recyclable materials.

Installation instructions

The gearbox adapter requires a custom PMC Motorsport flywheel matched to the chosen gearbox, and for automatic gearboxes – a torque converter adapter (not included in the kit).

Gearboxes for petrol engines (ZF-5 and Getrag 250G / 420G) and diesel engines (M57 GS5-39DZ) share the same bolt pattern, but differ in mounting angle on the adapter. If after tightening the gearbox is set at the wrong angle, the installation must be corrected – the petrol gearbox was bolted into the diesel gearbox position or vice versa.

Mounting BMW ZF-5 (M50) gearbox to PMC BMW V8 M60 M62 adapter

Mounting BMW GS5-39DZ (M57) gearbox to PMC BMW V8 M60 M62 adapter

Mounting BMW GS6-53BZ (N54) gearbox to PMC BMW V8 M60 M62 adapter

Mounting Getrag DCT DKG dual-clutch transmission to PMC BMW V8 M60 M62 adapter

Frequently Asked Questions

Which engines does this adapter fit?

For BMW V8 M60 (M60B30, M60B40) and M62 (M62B35, M62B44, M62B46, M62B48, also TU versions) engines.

Which gearboxes fit the adapter?

For manual gearboxes from petrol engines: ZF-5 (ZF 310 / ZF 320), Getrag 250G, Getrag 420G, GS6-37BZ, GS6-17BZ, GS6-53BZ, and GS6-45BZ; from diesel engines: ZF S5D-280Z, GS5-39DZ, GS6-37DZ, and GS6-53DZ HGA / HGB (E46 330d); as well as automatic gearboxes ZF 6HP (6HP26, 6HP26X, 6HP28X) and dual-clutch Getrag DCT DKG GS7D36SG. The adapter does not support ZF 8HP gearboxes. The complete list of versions can be found in the table above.

Is a flywheel included in the kit?

No. The adapter requires a custom PMC Motorsport flywheel selected for your chosen gearbox, available separately.

Do I need to cut the gearbox bellhousing?

No. The adapter was designed to avoid cutting the bellhousing – you only need to prepare the clearance hole for the starter motor.

The gearbox is at the wrong angle after tightening – what to do?

Petrol gearboxes (ZF-5 and Getrag 250G / 420G) and diesel gearboxes (M57 GS5-39DZ) share the same bolt pattern, but differ in mounting angle on the adapter. If the gearbox is at the wrong angle, it was bolted into holes intended for the other type – the installation needs to be corrected.

Which starter motor should be used?

BMW M60 / M62 OE starter motor. The starter motor is not included in the kit.

Does the adapter fit an automatic transmission?

Yes – automatic ZF 6HP (6HP26, 6HP26X, 6HP28X) and dual-clutch Getrag DCT DKG GS7D36SG gearboxes. The adapter does not support ZF 8HP gearboxes.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping estimate do not include customs duties or additional fees that may apply in the recipient's country.

Can I buy with 0% VAT?

Yes, if you are a B2B customer outside Poland with an active EU VAT number (verification in the VIES system) or ordering with shipping outside the EU.

Are the included instructions sufficient for installation?

The instructions describe connecting the engine to the gearbox outside the car body. Depending on the vehicle, additional modifications may be required: mounts, bushings, firewall, gearbox tunnel, driveshaft length. We recommend installation by professionals.

Brand
PMC MOTORSPORT
Symbol
F0M50-M6
Producer code
5903707405770
Specification
BMW Engine Model
BMW M62 M62B35 M62B44 M62B46More

BMW V8 M62

BMW V8 M62 M62B35

  • 1996–1998 BMW E39 535i
  • 1996–1998 BMW E38 735i/735iL

BMW V8 M62 M62TUB35

  • 1999–2001 BMW E38 735i/735iL
  • 1998–2003 BMW E39 535i

BMW V8 M62 M62B44

  • 1996–1998 BMW E39 540i
  • 1996–1998 BMW E38 740i/740iL
  • 1997–1999 BMW E31 840Ci

BMW V8 M62 M62TUB44

  • 1998–2003 BMW E39 540i
  • 1999–2001 BMW E38 740i/740iL
  • 1999–2003 BMW X5 (E53) X5 4.4i
  • 2000–2004 Morgan Aero 8
  • 2002–2005 Range Rover
BMW M60 M60B30 M60B40More

BMW V8 M60

BMW V8 M60 M60B30

  • 1992–1995 BMW E34 530i
  • 1992–1994 BMW E32 730i
  • 1994–1996 BMW E38 730i

BMW V8 M60 M60B40

  • 1993–1995 BMW E34 540i
  • 1992–1994 BMW E32 740i
  • 1994–1996 BMW E38 740i
  • 1992–1996 BMW E31 840i
BMW S62 S62B50
Manual gearbox (Petrol)
6-speed GETRAG 420 BMW E36 M3 S50More
  • BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TAGU MT6 / BMW OE 23 00 1 222 700 / 23 00 1222700
  • BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 - TBAB MT6 / BMW OE 23 00 1 434 507 / 23 00 1434507
  • BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TBAC MT6 / BMW OE 23 00 2 228 312 / 23 00 2228312
  • BMW 3' E36 M3 3.2 S50 S6S 420G GETRAG 420 (SMG) - TAGX MT6 / BMW OE 23 00 2 228 817 / 23 00 2 228 817
6-speed GETRAG 420 BMW E46 M3 S54More
  • BMW 3' E46 M3 3.2 S54 GETRAG 420 S6S 420G - TBAI MT6 / BMW OE 23 00 2 229 721 / 23 00 2229721
  • BMW 3' E46 M3 3.2 S54 GETRAG 420 S6S 420G (SMG) - TBAK MT6 / BMW OE 23 00 2 229 786 / 23 00 2229786
5-speed GETRAG S5D-250 BMW M50 M52 M54 M56More
  • BMW 3' E36 320i 323i 325i 323ti 325is M50 M52 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
  • BMW 3' E36 Z3 2.0 2.2 2.2i 2.5 2.5i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
  • BMW 3' E46 320i 320Ci 323i 323Ci 325i 325Ci 325ti M52 M54 M56 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
  • BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKG MT5 / BMW OE 23 00 1 222 069 / 23 00 1222069
  • BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKZ MT5 / BMW OE 23 00 1 221 837 / 23 00 1221837
  • BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKT MT5 / BMW OE 23 00 1 222 400 / 23 00 1222400
  • BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAKS MT5 / BMW OE 23 00 1 222 404 / 23 00 1222404
  • BMW 5' E34 520i M50 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
  • BMW 5' E39 520i 523i 525i M52 M54 GETRAG 250 S5D 250G - TAJT MT5 / BMW OE 23 00 1 434 410 / 23 00 1434410
5-speed ZF ZF5 S5D-320 BMW M50 M52 S50 S52 S54 (S5-32)More
  • BMW 3' E36 323i 325i 328i M50 M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
  • BMW 3' E36 323i 328i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
  • BMW 3' E36 323i 328i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
  • BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
  • BMW 3' E36 M3 S50 S52 3.2 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
  • BMW 3' E36 Z3 2.8 M52 M 3.2 S50 S52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
  • BMW 3' E36 Z3 2.8 3.0 M52 M54 M 3.2 S50 S52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
  • BMW 3' E46 328i 328Ci 330i 330Ci M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
  • BMW 3' E46 325xi 330xi M54 (xDrive) ZF S5D 320Z - THCG / BMW OE 23 00 7 502 658 / 23 00 7502658
  • BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 983 / 23 00 1222983
  • BMW 5' E34 525i M50 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
  • BMW 5' E39 523i 528i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
  • BMW 5' E39 523i 528i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
  • BMW 5' E39 523i 528i 530i M52 M54 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
  • BMW 7' E38 728i M52 ZF S5D 320Z - THDU / BMW OE 23 00 1 222 984 / 23 00 1222984
  • BMW 7' E38 728i M52 ZF S5D 320Z - THMW / BMW OE 23 00 1 434 485 / 23 00 1434485
  • BMW 7' E38 728i M52 ZF S5D 320Z - THCH / BMW OE 23 00 7 503 993 / 23 00 7503993
5-speed ZF ZF5 S5D-310 BMW M50 (S5-31)More
  • BMW 5' E34 525i M50 ZF S5D 310Z - THDL / BMW OE 23 00 1 221 859 / 23 00 1221859
  • BMW 5' E34 525i M50 ZF S5D 310Z - THDM / BMW OE 23 00 1 222 263 / 23 00 1222263
  • BMW 5' E34 525ix M50 ZF S5D 310Z - THDH / BMW OE 23 00 1 222 180 / 23 00 1222180
  • BMW 5' E34 525ix M50 ZF S5D 310Z - THDO / BMW OE 23 00 1 222 268 / 23 00 1222268
6-speed ZF GS6-53BZ BMW N54More

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGX code HGX

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number : 1067 010 016 / 23.00-7565215 / 2300 7565215 /23007565215
  • BMW 3' E90 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E90 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E91 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E91 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E92 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E92 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E93 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 3' E93 LCI 335i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423
  • BMW 5' E60 LCI 535i N54 GS6-53BZ - THGX / BMW 23 00 7571423 / 23 00 7 571 423

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGD code JGD

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number : 1067 010 011 / 23.00-7567240 / 23 00 7567240 / 23007567240
  • BMW 3' E90 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
  • BMW 3' E91 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
  • BMW 3' E92 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242
  • BMW 3' E93 335i N54 GS6-53BZ - TJGD / BMW 23 00 7567242 / 23 00 7 567 242

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - TJGK code JGK

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number 1067 010 019 / 23.00 7581859 / 23 00 7581859 / 23007581859
  • BMW 1' E82 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
  • BMW 1' E88 135i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860
  • BMW Z4' E89 35i N54 GS6-53BZ - TJGK / BMW 23 00 7581860 / 23 00 7 581 860

BMW ZF (ZF Friedrichshafen S6-53) GS653BZ / GS6-53BZ - THGY code HGY (xDrive)

  • Bell housing : 1067 401 127 / 1067401127
  • Sticker number : 1067 012 011 / 23.00-7565216 / 2300 7565216 /23007565216
  • BMW 3' E90 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E90 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E91 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E91 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E92 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E92 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E93 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 3' E93 LCI 335xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
  • BMW 5' E60 LCI 535xi N54 GS6-53BZ - THGY / BMW 23 00 7571424 / 23 00 7 571 424
6-speed ZF GS6-37BZ BMW M54 More
  • BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
  • BMW 3' E46 330i M54 ZF GS6-37BZ - THEB / BMW OE 23 00 7 523 981 / 23 00 7523981
  • BMW 3' E46 325ti 330i 330Ci M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
  • BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
  • BMW 5' E60 520i 525i 530i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
  • BMW 5' E61 525i M54 ZF GS6-37BZ - THEG / BMW OE 23 00 7 532 498 / 23 00 7532498
  • BMW 5' E61 525i M54 ZF GS6-37BZ - TBEZ / BMW OE 23 00 7 562 725 / 23 00 7562725
6-speed ZF GS6-45BZ BMW N55More

BMW ZF (ZF Friedrichshafen S6-53) GS645BZ / GS6-45BZ - THD4 code HD4

  • BMW 1' E82 335i N54T N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
  • BMW 1' E88 335i N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
  • BMW 3' E90 LCI 335i N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
  • BMW 3' E91 LCI 335i N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
  • BMW 3' E92 LCI 335i N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
  • BMW 3' E93 LCI 335i N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
  • BMW 5' F10 LCI 535i N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
  • BMW 5' F11 LCI 535i N55 GS6-45BZ - THD4 / BMW 23 00 7599342 / 23 00 7 599 342
Manual gearbox (Diesel)
6-speed ZF GS6-37DZ BMW M47n M47n2More

Bell housing : 1067 401 045 / 1067401045

Other numbers : 23 00 7553936 / 23007553936 / 23 00 7565193 / 23007565193 / 23 00 7553934 / 23007553934 / 23 00 7545385 / 23007545385

  • BMW 3' E87 120D M47n2 ZF GS6-37DZ - THES / BMW OE 23 00 7 562 730 / 23 00 7562730
  • BMW 3' E87 118D 120D M47n2 ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
  • BMW 3' E46 320D 320cD 320tD M47n ZF GS6-37DZ - THES / BMW OE 23 00 7 562 730 / 23 00 7562730
  • BMW 3' E46 320cD M47n ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
  • BMW 3' E90 320D M47n2 ZF GS6-37DZ - THES / BMW OE 23 00 7 562 730 / 23 00 7562730
  • BMW 3' E90 318D 320D M47n2 ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
  • BMW 3' E91 320D M47n2 ZF GS6-37DZ - THES / BMW OE 23 00 7 562 730 / 23 00 7562730
  • BMW 3' E91 318D 320D M47n2 ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
  • BMW 5' E60 520D M47n2 ZF GS6-37DZ - THES / BMW OE 23 00 7 562 730 / 23 00 7562730
  • BMW 5' E60 520D M47n2 ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
  • BMW 5' E60 LCI 520D M47n2 ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
  • BMW 5' E61 520D M47n2 ZF GS6-37DZ - THES / BMW OE 23 00 7 562 730 / 23 00 7562730
  • BMW 5' E61 520D M47n2 ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
  • BMW 5' E61 LCI 520D M47n2 ZF GS6-37DZ - TJEM / BMW OE 23 00 7 565 194 / 23 00 7565194
5-speed ZF GS5-39DZ BMW M57More
  • BMW 3 Series E46 330D M57 ZF GS5-39DZ - THBC / BMW OE 23 00 7 501 342 / 23 00 7501342
  • BMW 3 Series E46 330D M57 ZF GS5-39DZ - THBK / BMW OE 23 00 7 508 772 / 23 00 7508772
  • BMW 3 Series E46 330D M57 ZF GS5-39DZ - THBM / BMW OE 23 00 7 518 077 / 23 00 7518077
  • BMW 5 Series E39 530D M57 ZF GS5-39DZ - THBA / BMW OE 23 00 1 434 505 / 23 00 1434505
  • BMW 5 Series E39 530D M57 ZF GS5-39DZ - THBG / BMW OE 23 00 7 508 031 / 23 00 7508031
  • BMW 5 Series E39 525D 530D M57 ZF GS5-39DZ - THBC / BMW OE 23 00 7 501 342 / 23 00 7501342
  • BMW 5 Series E39 525D M57 ZF GS5-39DZ - THBK / BMW OE 23 00 7 508 772 / 23 00 7508772
  • BMW 5 Series E39 525D M57 ZF GS5-39DZ - THBM / BMW OE 23 00 7 518 077 / 23 00 7518077

ZF Friedrichshafen S5-39DZ

The ZF Friedrichshafen GS5-39DZ 5-speed manual gearbox (S5-39DZ), due to its high durability (1000Nm+) and low price, is an ideal solution for cars prepared for drifting. The ZF GS5-39DZ was installed in BMWs with the iron-block M57 engine (E39 530D 525D and E46 530D). Input shaft spline (male type): 28x35-10N



ZF GS5-39DZ Gear Ratios
1 2 3 4 5 R
5.240 2.910 1.810 1.270 1.000 4.850
6-speed ZF GS6-53DZ HGA BMW E46 330D M57nMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGA code HGA

Bell housing : 1067 401 061 / 1067301061

Sticker number: 1067 010 001 / 23.00-7522202 / 23 00 7522202 / 23007522202

  • BMW 3' E46 330D 330cD M57n ZF GS6-53DZ - THGA / BMW OE 23 00 7 501 342 / 23 00 7501342
6-speed ZF GS6X53DZ HGB BMW E46 330xD X3 M57n xDriveMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6X53DZ - THGB code HGB xDrive

Bell housing : 1067 401 061 / 1067301061

Sticker number: 1067 012 001 / 23.00-7522203 / 23 00 7522203 / 23007522203

  • BMW 3' E46 330xD M57n ZF GS6-53DZ - THGB / BMW OE 23 00 7 531 347 / 23 00 7531347
  • BMW X3 E83 3.0 M57n ZF GS6-53DZ - THGB / BMW OE 23 00 7 531 347 / 23 00 7531347
5-speed ZF S5D-280Z BMW M47 More
  • BMW 3' E46 318D 320D M47 ZF S5D 280Z - THCI / BMW OE 23 00 7 503 247 / 23 00 7503247
  • BMW 5' E39 520D M47 ZF S5D 280Z - THCM / BMW OE 23 00 7 505 380 / 23 00 7505380
6-speed ZF GS6X37DZ BMW M47n M47n2 xDrive
Automatic dual-clutch GETRAG DCT DKG GS7D36SG list:
GETRAG DCT DKG GS7D36SG BMW N54 N55 S55 More
  • GETRAG GS7D36SG - BMT 28 00 7 640 956 / 28 00 7640956 (2012-07 - 2013-07 BMW N54 N55 E82 E83 E89 E92 / E92 LCI E93 / E93 LCI)
  • GETRAG GS7D36SG - BE2 28 00 7 640 956 / 28 00 7640956 (2013-07 - 2015-03 BMW N54 N54T N55 E82 E83 E89 E92 LCI E93 LCI)
  • GETRAG GS7D36SG - ABW 28 00 7 853 541 / 28 00 7853541 (-2016-03 BMW E87 M2 N55)
  • GETRAG GS7D36SG - ABY 28 00 7 853 542 / 28 00 7853542 (-2016-07 BMW E87 M2 N55)
  • GETRAG GS7D36SG - AC2 28 00 7 853 546 / 28 00 7853546 (-2016-11 BMW E87 M2 N55)
  • GETRAG GS7D36SG - AC5 28 00 7 853 549 / 28 00 7853549 (-2017-03 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 E87 M2)
  • GETRAG GS7D36SG - ADE 28 00 7 853 550 / 28 00 7853550 (-2017-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 E87 M2)
  • GETRAG GS7D36SG - AEA 28 00 7 853 551 / 28 00 7853551 (-2017-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2)
  • GETRAG GS7D36SG - AEB 28 00 7 853 552 / 28 00 7853552 (-2017-11 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
  • GETRAG GS7D36SG - AEE 28 00 7 853 554 / 28 00 7853554 (-2018-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
  • GETRAG GS7D36SG - AEG 28 00 7 853 555 / 28 00 7853555 (-2018-07 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
  • GETRAG GS7D36SG - AEP 28 00 7 853 557 / 28 00 7853557 (-2019-03 BMW N55 S55 F80 M3 / F80 LCI M3 E82 M4 / E82 LCI M4 E83 M4 / E83 LCI M4 E87 M2 / E87 LCI M2)
ADDITIONAL INFORMATION
Custom flywheel required
Yes
Gearbox adapter thickness
35mm / 1.37"
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Dowel Pins
Material
Aluminium
Your previous questions regarding this product
Hi PMC, I am planning a manual conversion on a 1996 BMW E34 540i with an M60B40 engine. I am looking at using one of your M60/M62 to BMW ZF transmission adapter plates with a ZF S5D 320Z gearbox from an E36 328i. Before purchasing, I would like to confirm the following: 1. Is the adapter plate fully compatible with an M60B40 and ZF S5D 320Z from an E36 328i? 2. Does the adapter plate correctly position the gearbox input shaft, or are any modifications required to the input shaft or gearbox? 3. What pilot bearing solution is required? 4. What flywheel is required for this conversion? * OEM BMW flywheel? * Custom flywheel? * Specific aftermarket flywheel? 5. What clutch kit is required? * Disc diameter * Pressure plate * Release bearing specification 6. Does the adapter retain the factory M60 starter motor location? * If not, what starter arrangement is required? 7. Are there any clutch release geometry or spacing issues that need to be addressed? 8. What slave cylinder and clutch fork setup is required? 9. Is there a recommended gearbox crossmember solution for an E34 chassis? 10. Is a custom driveshaft required? * If so, do you provide driveshaft length information? 11. Is the shifter position suitable for an E34 chassis, or will modifications be required? 12. What torque rating have you seen successfully used with the ZF S5D 320Z behind M60/M62 engines? 13. Can you provide a complete list of required parts for the conversion? 14. Are there any additional components or modifications commonly overlooked during this swap? 15. Do you have installation instructions or a parts list available before purchase? Thank you.

Hello, it will fit to the M60 and ZF S5D 320Z from an E36 328i.

Keep in mind you need to use a custom flywheel. We do have the complete adapter kit - Adapter kit BMW V8 M60 - BMW M50 S50 M52 S52 M54 ZF-5 5-speed - 240mm / 9.45" Adapter Kit ONLY 240mm / 9.45" (single disc) | Swap Solutions / Adapter Kits / Clutch Kits \ Full Adapter Kits \ BMW M60 M62 S62 BMW ZF5 ZF6 GS5 GS6 SWAP Kits \ BMW M60 M62 - ZF5 ZF6 GS5 GS6

In the same link you can see all the clutch kits options which are available. This kit is designed to work p&p.

Also in the description you have the completed list of compatible engines and gearboxes, you will find the mounting instructions and all necessary information.

Flywheel Type
Rigid / Single-mass / Single-disc
Diameter of Friction Plate
240mm / 9.45"
Recommended clutch pressure plate
Sachs XTend 3000 951 877 (BMW M57)
Sachs Performance 88 308 200 1243 / 883082.001243
Clutch disc
Dedicated to your gearbox - 240mm / 9.45"
Spline
23x29-10N
Spline Count
10
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
BMW M60 M62 OE 12 41 1 729 981 / 1729981
BMW M60 M62 OE 12 41 1 736 921 / 1736921
Flexplate / ring gear / Drive plate required (not included)
BMW M60 V8 OE 11 22 1 747 843 / 1747843
BMW M60 V8 OE 11 22 1 715 646 / 1715646

As for the crossmember, custom driveshaft, we do not offer those parts.

Best regards,
PMC

Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Write your opinion
Your opinion:
5/5
Add your own product photo:

@pmcmotorsport on Instagram Check out our profile on Instagram

pixel
