Stage 2 Toyota 1UZ 3UZ - 6-speed manual BMW N54 GS6-53BZ 135i 335i 535i - 215mm / 8.46" Twin Disc

PMC Motorsport Stage 2 – clutch kit Toyota Lexus V8 UZ 1UZ 3UZ – 6-speed manual BMW N54 ZF GS6-53BZ 135i 335i 535i – 215 mm / 8.46" Twin disc – Sachs XTend 3000 950 709 – max. 700 Nm / 516 lb⋅ft

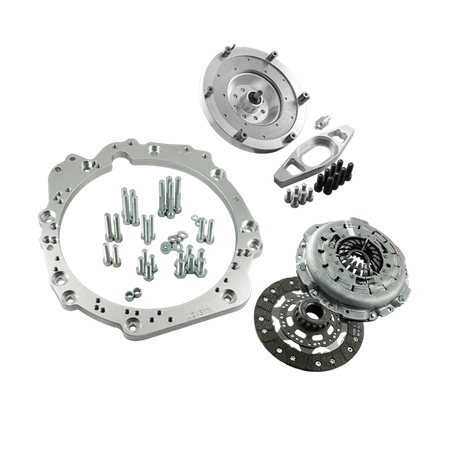

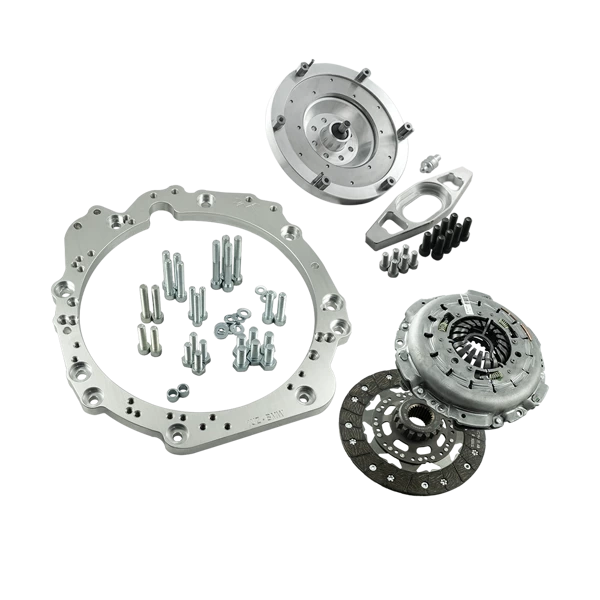

Complete Stage 2 clutch kit enabling the connection (swap / conversion) of the Toyota / Lexus V8 UZ 1UZ-FE 3UZ-FE engine with the ZF GS6-53BZ 6-speed manual gearbox used in BMW N54 models. The kit includes an aluminum gearbox adapter plate, a custom PMC Motorsport flywheel designed for a 215 mm twin-disc clutch, and the Sachs XTend 3000 950 709 twin-disc clutch from the BMW E9x M3 V8 – self-adjusting pressure plate (SAC), two clutch discs, and a release bearing with clutch fork. The maximum torque capacity of the kit is 700 Nm (516 lb⋅ft). The perfect solution for high-power builds – daily driving, drifting, and motorsport.

Are you planning a Toyota / Lexus V8 UZ 1UZ 3UZ swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a manual BMW gearbox and unlock new possibilities.

PMC Motorsport adapters not only facilitate automatic-to-manual transmission conversions in vehicles powered by Toyota / Lexus V8 UZ engines, but also support UZ swaps into BMW and other chassis such as Nissan or Mazda.

Aluminum gearbox adapter plate designed to simplify gearbox installation as much as possible, eliminating radical measures such as cutting off the entire bellhousing – only the starter motor pocket needs to be prepared. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction surface, checked and balanced prior to shipping. Flywheel designed for the Sachs XTend 3000 950 709 (3000.950.709-S) twin-disc clutch with a diameter of 215 mm (8.46") from the BMW E9x M3 V8. Two friction discs transmit significantly more torque than a single-disc clutch of the same diameter while maintaining pedal comfort thanks to the self-adjusting mechanism. Adapter thickness: 20 mm (0.78").

PMC Motorsport gearbox adapters are synonymous with precision and premium quality. A design process based on 3D scanning and quality control using a coordinate measuring arm ensure a perfect fit. Manufacturing on state-of-the-art CNC machinery guarantees flawless concentricity between the engine and transmission, which is crucial for the longevity of the drivetrain.

Additional information

Installation manual

Installing the flywheel requires the use of the automatic transmission flexplate (starter ring gear) Toyota / Lexus OE 32101-50010 and the 4.5 mm spacer washer between the engine block and flexplate, Toyota OE 32116-50010 (not included in the kit). Bolt the flywheel to the crankshaft using the supplied bolts torqued to 72 Nm (53.1 lb⋅ft) with medium threadlocker applied. The release bearing and clutch fork are included in the kit – mount the clutch fork in the higher position on the release bearing. To complete the adapter installation, the original Toyota UZ starter motor (OE, not included in the kit) must be used.

Frequently Asked Questions

Which engines does this kit fit?

Toyota / Lexus V8 UZ family engines: 1UZ-FE (found in Lexus LS 400, SC 400, GS 400, Toyota Celsior, Crown, Soarer, Aristo, among others) and 3UZ-FE (found in Lexus LS 430, GS 430, SC 430, Toyota Soarer, Crown Majesta, among others).

Which gearboxes does this kit fit?

6-speed manual ZF GS6-53BZ transmissions from BMW N54 models in variants HGX (THGX), JGD (TJGD), JGF (TJGF), and JGK (TJGK) – E60 535i, E9x 335i, E8x 135i, Z4 35i. The transmission features a 32.5x35-26N spline.

Do I need to cut the gearbox bellhousing?

No. The adapter is engineered to eliminate cutting off the bellhousing – only an opening for the starter motor needs to be prepared.

What additional parts are required for installation?

The automatic transmission flexplate (starter ring gear) from a Toyota / Lexus UZ, OE 32101-50010, and the 4.5 mm spacer washer between the engine block and flexplate, Toyota OE 32116-50010. You will also need a clutch slave cylinder dedicated to your specific gearbox, as well as an original Toyota UZ starter motor (OE). These parts are not included in the kit.

Which clutch is included in the kit?

The Sachs XTend 3000 950 709 (3000.950.709-S) twin-disc clutch from the BMW E9x M3 V8 with a diameter of 215 mm (8.46"): self-adjusting pressure plate, two clutch discs with a 32.5x35-26N spline (26 splines) for the ZF GS6-53BZ gearbox, and a release bearing with clutch fork.

What torque capacity can the Stage 2 kit handle?

The maximum torque capacity of the kit is 700 Nm (516 lb⋅ft).

Which starter motor should be used?

The original Toyota UZ starter motor (OE). The starter motor is not included in the kit.

What is included in the kit?

An aluminum gearbox adapter plate with mounting hardware, custom PMC Motorsport aluminum flywheel for 215 mm twin-disc clutch with replaceable friction surface, crankshaft bolts, pressure plate bolts, and the Sachs XTend 3000 950 709 clutch kit (pressure plate, two discs, release bearing with clutch fork).

Can I purchase only the adapter plate or only the flywheel?

Yes. Every component of the kit is available separately – including the adapter with flywheel only, without the clutch.

Does the price include customs duty for shipments outside the European Union?

No. The product price and shipping quote do not include import customs duties, tariffs, or local fees that may apply in the recipient's country.

Can I purchase with 0% VAT?

Yes, if you are a registered B2B customer outside of Poland with an active EU VAT number (validated via VIES) or if placing an export order outside the EU.

Is the included manual sufficient to complete the installation?

The manual covers mating the engine to the transmission outside the vehicle chassis. Depending on your car chassis, additional custom modifications may be required: engine mounts, crossmembers, firewall clearance, transmission tunnel modifications, driveshaft sizing. We strongly recommend professional installation.

Please note that a lightweight single-mass flywheel delivers uncompromising throttle response by eliminating factory dual-mass damping components. This results in a more direct drivetrain connection, which can naturally increase the audible operating noises of the transmission gears. This is a normal and sought-after characteristic in performance and motorsport applications resulting from the rigid mechanical connection between the engine and the drivetrain.
