STAGE 2 Ford Barra - BMW N54 - 215mm / 8.46"
- PMC Motorsport STAGE 2 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
- Ford Barra - BMW N54 ZF GS6-53BZ - 215mm / 8.46"
In a set

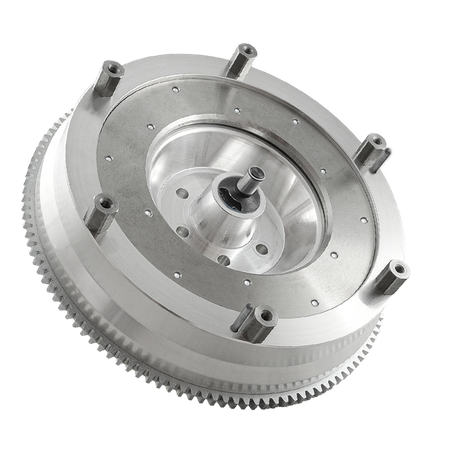

Flywheel Ford Barra - BMW N54 ZF GS6-53BZ - 215mm / 8.46" (1 pcs.)
649,00 EUR / pcs.
Sachs 3000950709S (1 pcs.)
399,00 EUR / pcs.
PMC Motorsport STAGE 2 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)
Ford Barra - BMW N54 ZF GS6-53BZ - 215mm / 8.46"
The adapter kit enables users connection of Ford Barra engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: |
|
Gearbox list: |
|

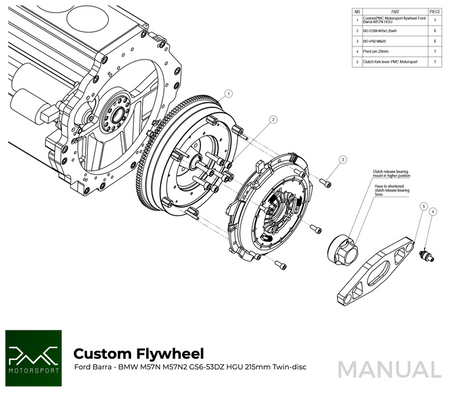

Manual
- Use the starter from BMW M50 M52 M54 M57
- Tighten the flywheel to the same torque as OE.
- Guide tube shortening required BMW OEM 23 11 7 501 714
Made in EU
ISO certificate
Worldwide shipping
30 Return Policy | * refundable option covers only unused products!
Brand
Symbol
S2-BAR-N54-M2
Engine
Ford Barra
Gearbox
BMW N54 ZF GS6-53BZ 335i 135i 535i 6-speed (Petrol)
Clutch Set
Set with Clutch
Yes
Flywheel Type
Twin disc
Clutch Set included
BMW Twin Disc
Clutch disc
Included
Release bearing required
Included
Clutch fork required
Included
Starter required (not included)
BMW M50-M54 OE 12 41 2 354 709 / 12 41 2354709
BMW M57 OE 12 41 2 247 492 / 12 41 2247492
BMW M57 OE 12 41 2 247 391 / 12 41 2247391
Flexplate / ring gear / Drive plate required
---
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Gearbox adapter thickness
20mm / 0.78"
Replaceable friction surface
Yes
Set includes

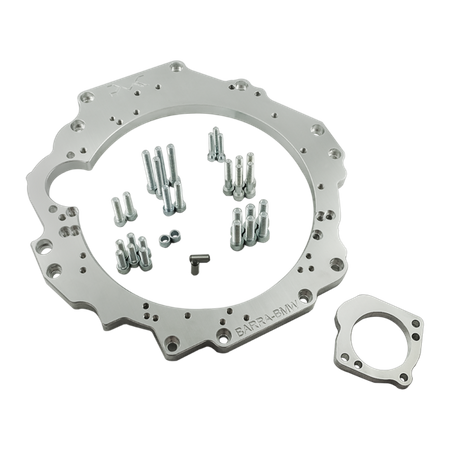

Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Customowa łapa sprzęgła

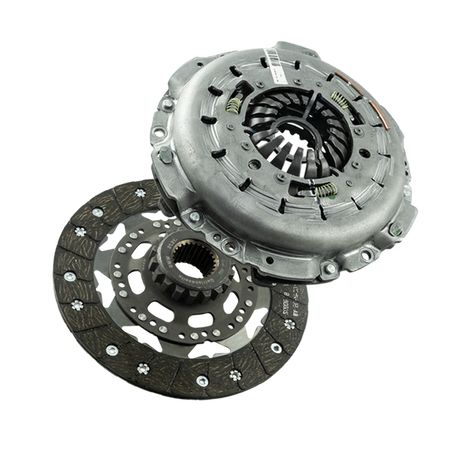

Clutch kit Sachs XTend 3000 950 709
Product sales codes included
F0BMW-BAR (3431)
K0N54-215-BAR (3477)
SACHS 709
