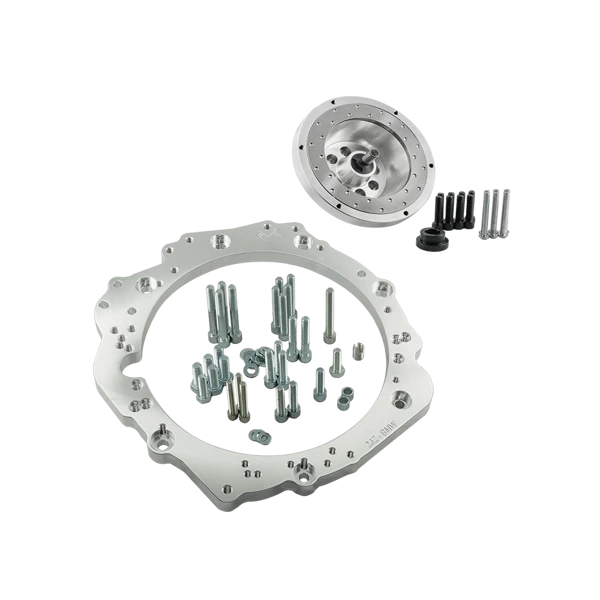

Aluminum adapter plate allowing the connection (swap / conversion) of the Toyota JZ 1JZ 2JZ engine (GE, GTE, FSE versions – VVT-i and non-VVT-i) with a ZF (ZF Friedrichshafen) / Getrag manual or automatic gearbox from BMW. The adapter supports both highly popular manual gearboxes such as ZF-5, GS5-39DZ, GS6-53DZ / BZ, Getrag 420G, as well as modern automatic ZF 8HP or dual-clutch Getrag DCT DKG gearboxes. It is the most universal adapter plate available on the market.
Are you planning an engine swap of the Toyota JZ 1JZ 2JZ into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Or maybe you want to replace the factory transmission – automatic or manual – in your Toyota with 1JZ / 2JZ engine (e.g. Supra A80, Chaser / Mark II JZX, Soarer) with a BMW transmission, such as manual ZF-5, GS6-53 or automatic ZF 8HP? In both cases, our adapter is a reliable solution. Gain a durable BMW gearbox with 5, 6, 7 or 8 speeds and easy access to spare parts.
The aluminum gearbox adapter plate has been designed to simplify gearbox installation as much as possible, avoiding radical actions such as cutting the entire gearbox bellhousing – only preparing the opening for the starter motor remains. The adapter plate requires the use of a PMC Motorsport custom flywheel matched to the selected gearbox (sold separately).
PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and gearbox, which is key to drivetrain durability.
All of our production and R&D department are located in Poland. Over 90% of components are manufactured by our company.
The PMC Motorsport team will help you choose the right kit and, in case of any doubts during installation, will provide technical support. You can contact us via the contact form.
Each component of the kit can be purchased separately.
Thousands of manufactured adapter plates and satisfied customers worldwide.
PMC Motorsport adapters are used in both daily drivers and professional motorsport projects.
From the beginning, we focus on the quality of the parts we manufacture. After each production stage, the component is inspected. Every unit produced by us is engraved with a production serial number.
Quality confirmed by PN-EN ISO 9001:2015 certification.
We ship our products to virtually every country in the world. For European Union countries (excluding islands) and the United Kingdom, shipping cost is calculated automatically. For countries outside the list, after placing an order, our team will calculate the shipping quote and add it to the order. You will receive an email with the order cost.
NOTE: The shipping quote sent along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT for customers holding an active EU VAT number (option for B2B customers outside Poland) and in the case of export outside the EU.
After positive verification in the VIES system, we modify the order by removing the calculated VAT.
Availability and price. Millions of cars produced worldwide guarantee easy access to spare parts. Both individual parts and complete transmissions are easily available at authorized dealerships and on the secondary market.
Strength and reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can transfer very high torque (some models 1000 Nm+), while guaranteeing great reliability. They are ideal for swaps in high-power projects intended for daily use.
Speed and convenience. In the case of using new generation ZF 8HP automatic gearboxes or Getrag DCT DKG, you get lightning-fast gear changes (approx. 0.2 s).
| Compatible engines: |
Toyota JZ Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i) Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i) |
| Compatible manual gearboxes – petrol: |
GETRAG S5D-250G (S5D250) 5-speed BMW M50 M52 ZF ZF-5 S5D-310 (ZF 310 / S5-31) 5-speed BMW M50 ZF ZF-5 S5D-320 (ZF 320 / S5-32) 5-speed BMW M50 M52 S50 S52 S54 GETRAG 420G 6-speed (inline engines only) Getrag 420G TBAB – BMW E36 M3 S50 Getrag 420G TAGU – BMW E36 M3 S50 Getrag 420G TBAI – BMW E46 M3 S54 ZF S6-37 GS6-37BZ 6-speed ZF GS6-37BZ THEG – BMW M54 ZF GS6-37BZ JEP (TJEP) – BMW N52 N52N N53 ZF GS6-37BZ JEM (TJEM) – BMW N52 N52N N53 ZF S6X37 GS6X37BZ – BMW M54 N52 N53 ZF S6-17 GS6-17BZ 6-speed ZF GS6-17BZ APX (TAPX) – BMW N52 N52N N53 ZF S6-53 GS6-53BZ 6-speed ZF GS6-53BZ HGX (THGX) – BMW E60 535i E9x 335i N54 ZF GS6-53BZ JGD (TJGD) – BMW E60 535i E9x 335i N54 ZF GS6-53BZ JGF (TJGF) – BMW E60 535i E9x 335i N54 ZF GS6-53BZ JGK (TJGK) – BMW E8x 135i Z4 35i N54 ZF S6X53 GS6X53BZ HGY (THGY) – BMW E60 535i E9x 335i N54 ZF S6-45 GS6-45BZ 6-speed ZF GS6-45BZ HD4 (THD4) – BMW E8x 135i E9x 335i F10 335i N55 ZF GS6-45BZ HAP (THAP) – BMW B58 F30 340i F32 440i ZF S6X45 GS6X45BZ – BMW E60 535i E9x 335i N55 |
| Compatible manual gearboxes – diesel: |
ZF S5D-280 5-speed ZF S5D-280Z – BMW E39 520d E46 320d M47 ZF S5-39 GS5-39DZ 5-speed ZF GS5-39DZ THBA THBM THBG THBK THBC – BMW E39 530d 525d E46 330d M57 M57D306D1 ZF S6-37 GS6-37DZ 6-speed ZF GS6-37DZ – BMW M47N M47N2 ZF GS6X37DZ – BMW M47N M47N2 ZF S6-53 GS6-53DZ 6-speed ZF GS6-53DZ HGA (THGA) – BMW E46 330d M57N M57D306D2 ZF GS6-53DZ HGD (THGD) – BMW E60 530d M57N M57N2 ZF GS6-53DZ JGA (TJGA) – BMW E60 530d M57N M57N2 ZF GS6-53DZ HGU (THGU) – BMW E9x 325d 330d M57N2 ZF GS6-53DZ HGK (THGK) – BMW E9x 325d 330d M57N2 ZF GS6-53DZ JGL (TJGL) – BMW E9x 330d N57N ZF GS6-53DZ HS1 (THS1) – BMW F10 530d N57N ZF GS6-53DZ HB7 (THB7) – BMW F10 530d N57N ZF GS6-53DZ HAF (THAF) – BMW F10 530d N57N ZF GS6-53DZ JGG (TJGG) – BMW E8x 123d N47S ZF S6X53 GS6X53DZ HGB (THGB) – BMW E46 330d M57N M57D306D2 ZF S6X53 GS6X53DZ HGE (THGE) – BMW E60 530d M57N M57N2 ZF S6X53 GS6X53DZ JGB (TJGB) – BMW E60 530d M57N M57N2 ZF S6X53 GS6X53DZ HGW (THGW) – BMW E9x 330d M57N2 ZF S6X53 GS6X53DZ HGL (THGL) – BMW E9x 330d M57N2 ZF S6X53 GS6X53DZ JGJ (TJGJ) – BMW E9x 330d N57N ZF S6-45 GS6-45DZ 6-speed ZF GS6-45DZ – BMW N47 N47S1 N47N N57 ZF GS6X45DZ – BMW N47 N47S1 N47N N57 |
| Compatible automatic gearboxes: |
ZF 6HP26 6-speed ZF GA6HP26 – BMW M57N M57N2 (diesel) ZF 6HP26X 6-speed (xDrive) ZF GA6HP26X – BMW M57N M57N2 (diesel) ZF 6HP28X 6-speed (xDrive) ZF GA6HP28X – BMW M57N2 (diesel) ZF 8HP70 8-speed ZF GA8HP70 – BMW N57 N57N (diesel) ZF 8HP75 8-speed ZF GA8HP75Z / 8HP75 – BMW B57 B57B30 (diesel) ZF 8HP45 8-speed ZF GA8HP45Z / 8HP45 – BMW N47 N47S1 N47N (diesel) ZF 8HP50 / 8HP51 8-speed ZF GA8HP51Z / 8HP51 – BMW B58 B58B30 ZF GA8HP51Z / 8HP51 – BMW B48 B48B20 ZF GA8HP51Z / 8HP51 – BMW B46 B46B20 ZF 8HP70X 8-speed (xDrive) ZF GA8HP70X – BMW N57 N57N (diesel) ZF 8HP75X 8-speed (xDrive) ZF GA8HP75X – BMW N57 N57N (diesel) Dual-clutch Getrag DCT DKG Getrag DKG DCT GS7D36SG 7-speed – BMW N54 N55 S55 |
PMC Motorsport parts are intended for motorsport and track use.
Installation should be performed by professionals with expertise in engine swaps and car modifications – in workshops and using properly adapted tools.
The adapter installation manual contains only basic knowledge necessary to physically connect the engine with the gearbox outside the car body.
Depending on the vehicle, additional modifications may be required, such as adjusting mounts, bushings, firewall, transmission tunnel, driveshaft length, etc.
We manufacture our adapters using fully recyclable materials.
The gearbox adapter plate requires the use of a PMC Motorsport custom flywheel matched to the selected gearbox (not included in the kit).
In ZF-5 (ZF 310 / ZF 320) and Getrag 250G / 420G gearboxes, slight enlargement (grinding) of the two upper mounting holes in the gearbox housing (bellhousing) is required – this modification does not affect engine and gearbox centering.
Gearboxes for petrol engines (ZF-5 and Getrag 250G / 420G) and diesel engines (M57 GS5-39DZ) have the same bolt pattern, but differ in mounting angle on the adapter. If the gearbox is set at the wrong angle after tightening, the installation must be corrected – a petrol gearbox was bolted into the place meant for a diesel gearbox or vice versa.
For Toyota JZ engines: 1JZ (1JZ-FSE, 1JZ-GE, 1JZ-GTE) and 2JZ (2JZ-FSE, 2JZ-GE, 2JZ-GTE), in VVT-i and non-VVT-i versions.
The adapter plate is universal and fits virtually all BMW gearboxes: manual petrol (ZF-5 ZF 310 / ZF 320, Getrag 250G, Getrag 420G, GS6-37BZ, GS6-17BZ, GS6-53BZ, GS6-45BZ), manual diesel (ZF S5D-280, GS5-39DZ, GS6-37DZ, GS6-53DZ, GS6-45DZ), automatic ZF 6HP and ZF 8HP, and dual-clutch Getrag DCT DKG GS7D36SG. The full list of versions can be found in the table above.
No. The adapter plate requires the use of a PMC Motorsport custom flywheel matched to the chosen gearbox. The flywheel (or torque converter adapter for ZF 8HP gearboxes) is available separately.
No. The adapter was designed to avoid cutting the bellhousing – you only need to prepare the opening for the starter motor.
The PMC Motorsport adapter plate is the most universal adapter available on the market, supporting virtually every BMW gearbox. In designing it, we made certain trade-offs – on Getrag 250 / Getrag 420 / ZF 310 / ZF 320 / ZF-5 gearboxes, the two upper mounting holes must be slightly enlarged (ground) in the gearbox housing (bellhousing). This modification does not affect engine and gearbox centering.
Gearboxes for petrol engines (ZF-5 and Getrag 250G / 420G) and diesel engines (M57 GS5-39DZ) have the same bolt pattern, but differ in mounting angle on the adapter. If the gearbox is set at the wrong angle, it has been bolted into the holes intended for the other type – the installation must be corrected.
Toyota JZ OE starter motor without additional pinion cover. The starter motor is not included in the kit. The mounting method depends on the manufacturing year of the adapter plate:
a) adapter plates manufactured up to 2022 – starter motor is installed identically to original equipment (OE);
b) adapter plates manufactured from 2022 to 2025 – one of the starter mounting holes in the engine block must be enlarged: drill it with a drill bit to a diameter of ∅12.9–13.2 mm (0.507"–0.520") to a depth of 22 mm (0.866"), use the bushing from the set AN 335-M10 and tighten with an ISO 4762-M10x35 bolt;
c) adapter plates manufactured from January 2025 – the lower mounting hole in the starter motor must be enlarged to a diameter of ∅12–13 mm and the engine block threaded to M12x1.5.
Yes. The PMC Motorsport gearbox adapter plate is universal and fits most BMW gearboxes (applies to adapters produced after 2022). When converting to a ZF 8HP automatic transmission, a PMC Motorsport 8HP torque converter adapter is used instead of a flywheel.
No. The product price and shipping quote do not include customs duties or additional fees that may occur in the destination country.
Yes, if you are a B2B customer from outside Poland with an active EU VAT number (verification in the VIES system) or order with delivery outside the EU.
The manual describes joining the engine and gearbox outside the vehicle body. Depending on the car, additional modifications may be required: mounts, bushings, firewall, transmission tunnel, driveshaft length. We recommend installation by professionals.
The ZF Friedrichshafen GS5-39DZ 5-speed manual gearbox (S5-39DZ), due to its high durability (1000Nm+) and low price, is an ideal solution for cars prepared for drifting. The ZF GS5-39DZ was installed in BMWs with the iron-block M57 engine (E39 530D 525D and E46 530D). Input shaft spline (male type): 28x35-10N
ZF GS5-39DZ Gear Ratios |
|||||
|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | R |
| 5.240 | 2.910 | 1.810 | 1.270 | 1.000 | 4.850 |
Bell housing : 1067 401 045 / 1067401045
Other numbers : 23 00 7553936 / 23007553936 / 23 00 7565193 / 23007565193 / 23 00 7553934 / 23007553934 / 23 00 7545385 / 23007545385
Bell housing : 1067 401 061 / 1067301061
Sticker number: 1067 010 001 / 23.00-7522202 / 23 00 7522202 / 23007522202
Bell housing : 1067 401 061 / 1067301061
Sticker number: 1067 012 001 / 23.00-7522203 / 23 00 7522203 / 23007522203
Bell housing : 1067 401 161 / 1067401161
Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000
Bell housing: 1067 401 161 / 1067401161
Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THS1 code HS1 6-speed
Ratio
BMW 5-Series 5er F10 F11 LCI
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THB7 code HB7 6-speed
Ratio
BMW 5-Series 5er F10 F11
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGL code JGL 6-speed
Ratio
BMW 3-Series 3er E90 E91 E92 E93 LCI
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THAF code HAF 6-speed
Ratio
BMW 5-Series 5er F10 F11
Engine swaps are among the most common modifications in motorsport tuning projects. A particularly popular and highly valued solution among enthusiasts is installing the legendary Toyota 2JZ engine into BMW cars. What makes this combination so special, and why is it worth considering for your project?
