Adapter Kit Volvo White T5 T6 - BMW ZF 8HP 8HP75 8HP70 8HP50 8HP51
- Adapter enabling the connection (swap / conversion) of a Volvo Modular White block T5 T6 engine with a BMW-derived 8-speed ZF 8HP automatic transmission (ZF Friedrichshafen).
In a set

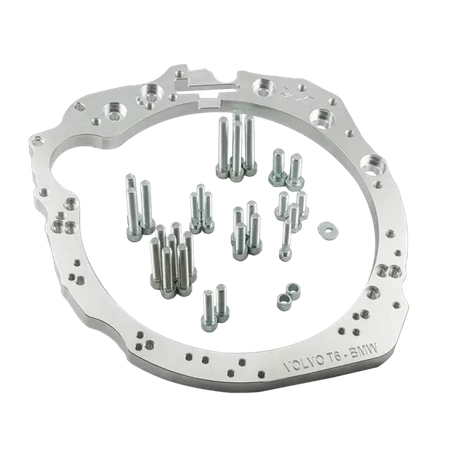

PMC Motorsport adapter plate / conversion kit Volvo Modular "White block" T5 T6 – BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 8HP76
Adapter plate allowing the connection (swap / conversion) of the Volvo Modular "White block" T5 / T6 engine (5- and 6-cylinder inline engines 2.0–2.9, naturally aspirated and turbo) with the modern 8-speed automatic transmission ZF 8HP (ZF Friedrichshafen) from BMW – 8HP50 / 8HP51, 8HP70, 8HP75, and 8HP76, in both RWD and xDrive versions. The kit includes an aluminum gearbox adapter plate and a torque converter adapter.
Planning a Volvo White block T5 / T6 engine swap (e.g. from a Volvo 850, S70, V70, C70, S60, S80, or XC90) into a rear-wheel-drive platform and looking for a durable automatic transmission? The ZF 8HP offers 8 gears, lightning-fast shift times (approx. 0.2 s), and exceptional torque capacity – the ideal pairing for the turbocharged Volvo T5 / T6 engine, whether for daily driving or motorsport.
In our catalog, you will also find an 8HP shifter / gear selector and a standalone TCU controller with wiring harness for operating the ZF 8HP transmission.
The aluminum gearbox adapter plate has been engineered to make installing the ZF 8HP transmission as straightforward as possible. The torque converter adapter (included in the kit) mates the OEM Volvo automatic flexplate to the torque converter of your ZF 8HP transmission. Gearbox adapter plate thickness: 20 mm (0.78").
PMC Motorsport gearbox adapter plates are synonymous with precision and superior quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal engine and transmission concentricity, which is crucial for powertrain durability.
Our entire production and R&D design department are located in Poland. Over 90% of components are manufactured in-house.
Selection assistance and after-sales support – PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit, and in case of questions during installation, we provide technical support. You can contact us via the contact form.
Purchase of individual components
Every single element of our kit is available for purchase separately.
Thousands of manufactured adapter plates and satisfied customers worldwide.
PMC Motorsport adapters are used in daily drivers as well as in professional motorsport projects.
From the beginning, we focus on the quality of our manufactured parts. After each production stage, the component is inspected. Every sub-assembly manufactured by us is engraved with a production serial number.
Quality confirmed by the PN-EN ISO 9001:2015 certificate.
We ship our products to virtually all countries worldwide. European Union countries (excluding islands) and the United Kingdom have shipping calculated automatically. For countries not on the list, after placing an order, our team will prepare a shipping calculation and add it to the order. You will receive an email with the total order cost.
NOTE: The provided shipping quote along with the product price does not include additional fees / customs duties that may apply depending on the destination country.
0% VAT
0% VAT for Customers with an active European VAT number (B2B option for customers outside Poland) and for export outside the EU.
After successful verification in the VIES system, we update the order by removing the charged VAT.
| Compatible engines: |
Volvo Modular "White block" T5 / T6 Volvo inline-5 2.0 – B5202, B5204 Volvo inline-5 2.3 – B5234 Volvo inline-5 2.4 – B5244 Volvo inline-5 2.5 – B5252, B5254 Volvo inline-6 2.4 / 2.5 – B6244, B6254 Volvo inline-6 2.8 / 2.9 / 3.0 – B6284, B6294, B6304 |
| Compatible automatic transmissions: |
ZF 8HP50 / 8HP51 8-speed ZF 8HP50 GA8HP50Z / GA8HP50X – BMW B37, B38, B47, B48, B58 (F-series) ZF 8HP51 GA8HP51Z / GA8HP51X – BMW B46, B48 (F-series), B58 (G-series) ZF 8HP70 / 8HP75 / 8HP76 8-speed (RWD / xDrive) ZF 8HP70 GA8HP70Z / GA8HP70X – BMW N57 / N57N (F-series) ZF 8HP75 GA8HP75X – BMW N57 / N57N xDrive (F-series) ZF 8HP75 GA8HP75Z / GA8HP75X – BMW B57 (G-series) ZF 8HP76 GA8HP76Z / GA8HP76X – BMW B57 (G-series, RWD / xDrive) ZF 8HP76 GA8HP76Z / GA8HP76X – BMW S58 (G-series) |
Additional information
PMC Motorsport parts are intended for motorsport and racetrack use.
Installation should be carried out by professionals with expertise in engine swaps and vehicle modifications – in specialized workshops using properly adapted tools.
The adapter installation manual covers only the basic knowledge required to physically mate the engine to the gearbox outside the vehicle chassis.
Depending on your specific vehicle, additional modifications may be required, such as: adjusting mounts, engine bushings, firewall, transmission tunnel, driveshaft length, etc.
Our adapter plates are made from fully recyclable materials.
Installation manual
Mount the gearbox adapter plate to the engine block first. To mate the Volvo White block engine to the ZF 8HP transmission, you must use the automatic transmission flexplate / ring gear Volvo OE 1275375 (not included), the PMC Motorsport torque converter adapter (included), and the torque converter from your ZF 8HP transmission. Volvo OE 9454743 bolts are required to secure the flexplate (not included).
To mount the adapter plate, use the Volvo OE 1 005 821 977 starter motor (not included).

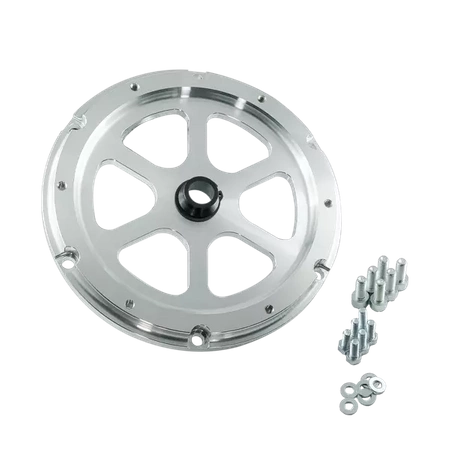

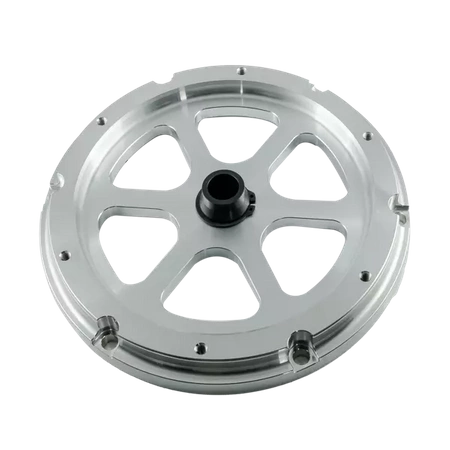

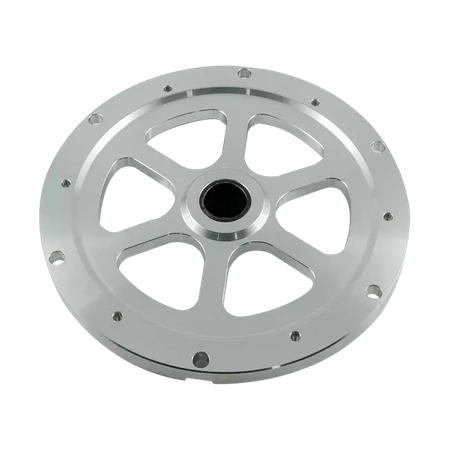

Mount the torque converter adapter to the Volvo automatic flexplate, and then bolt the ZF 8HP torque converter to it.
Frequently Asked Questions
Which engines does this adapter fit?
Volvo Modular "White block" T5 / T6 engines: 5-cylinder B5202 / B5204, B5234, B5244, B5252 / B5254 and 6-cylinder B6244, B6254, B6284, B6294 / B6304 – found in the Volvo 850, S70, V70, C70, S60, S80, S90 / V90, 960, and XC90.
Which transmissions does the adapter fit?
8-speed ZF 8HP automatic transmissions from BMW: 8HP50 / 8HP51 (BMW B37, B38, B46, B47, B48, B58), 8HP70 and 8HP75 (BMW N57, B57), and 8HP76 (BMW B57, S58), in both RWD and xDrive versions. See the table above for the complete list.
How is the ZF 8HP torque converter connected to the Volvo White block engine?
Using the PMC Motorsport torque converter adapter included in the kit. The torque converter adapter bolts directly to the OEM Volvo automatic flexplate OE 1275375, and then connects to the torque converter of your ZF 8HP transmission.
What additional parts do I need to purchase for installation?
The automatic transmission flexplate / ring gear Volvo OE 1275375, Volvo OE 9454743 bolts, and the Volvo OE 1 005 821 977 starter motor. To control the transmission, you will also need a standalone TCU controller with wiring harness and an 8HP gear selector/shifter – both are available in our catalog. These parts are not included in the kit.
Which starter motor should be used?
Volvo OE 1 005 821 977 starter motor. The starter motor is not included in the kit.
What does the kit include?
Aluminum gearbox adapter plate (20 mm) with mounting bolts and the torque converter adapter.
Does the price include customs duties for shipping outside the European Union?
No. The product price and shipping quote do not include customs duties or additional fees that may apply in the destination country.
Can I purchase with 0% VAT?
Yes, if you are a B2B customer outside Poland with an active EU VAT number (verified via the VIES system) or ordering with export shipping outside the EU.
Is the included manual sufficient for installation?
The manual covers mating the engine to the gearbox outside the chassis. Depending on the car, additional modifications may be required: engine mounts, bushings, firewall, transmission tunnel, driveshaft length. We recommend professional installation.
Volvo Whiteblock "White" straight-five 2.0
Volvo B5202S B5202 S
- 1997–1998 Volvo S70
- 1997–1999 Volvo V70
Volvo B5202FS B5202 FS
- 1995–1997 Volvo 850 / 850 2.0 / 850 2.0 10V
- 1997–1999 Volvo S70 / S70 2.0
- 1997–1999 Volvo V70 / V70 2.0
Volvo B5204S B5204 S
- 1992–1994 Volvo 850
Volvo B5204FS B5204 FS
- 1992–1996 Volvo 850
Volvo B5204FT B5204 FT Turbocharged
- 1994–1997 Volvo 850 / 850 2.0T
Volvo B5204T B5204 T Turbocharged
- 1994–1997 Volvo 850 /850 T-5 (2.0)
Volvo B5204T2 B5204 T2 Turbocharged
- 1997–1998 Volvo S70 / S70 2.0T
- 1997–1998 Volvo V70 / V70 2.0T
Volvo B5204T3 B5204 T3 Turbocharged
- 1997–2000 Volvo S70 / S70 T5
- 1997–2000 Volvo V70 / V70 T5
- 1998–2002 Volvo C70 / C70 T5
- 1999–2000 Volvo S80 / S80 T5
VVolvo B5204T4 B5204 T4 Turbocharged
- 1999–2000 Volvo S80 / S80 2.0T
- 2000–2005 Volvo C70 / C70 2.0T (convertible)
- 2000–2002 Volvo C70 / C70 2.0T (coupé)
- 1999 Volvo V70 / V70 2.0T
Volvo B5204T5 B5204 T5 Turbocharged
- 2000–2006 Volvo S80 / S80 2.0T
- 2001–2009 Volvo S60 / S60 2.0T
- 2000–2007 Volvo V70 II /V70 2.0T
VolvoB5204T8 B5204 T8 Turbocharged
- 2012–2015 Volvo V40 II / V40 T4
- 2013–2014 Volvo S60 II / S60 T4
- 2013 Volvo V60 / V60 T4
Volvo B5204T9 B5204 T9 Turbocharged
- 2012–2015 Volvo V40 II /V40 (Thailand)
- 2013–2014 Volvo V40 II / V40 T5 R Design / V40 Cross Country T5 AWD (Japan)
- 2013–2014 Volvo S60 II / S60 T5
- 2013–2014 Volvo V60 / V60 T5
- 2013–2015 Volvo S80 II / S80L T5
Volvo Modular Whiteblock straight-five 2.3
Volvo B5234FS B5234 FS
- 1994–1996 Volvo 850 Volvo S70
Volvo B5234T B5234 T Turbocharged
- 1993–1996 Volvo 850 / 850 T-5 / 850 Turbo
Volvo B5234T2 B5234 T2 Turbocharged
- 1997 Volvo 850
- 1997–1998 Volvo S70
- 1997–1998 Volvo V70
Volvo B5234T3 B5234 T3 Turbocharged
- 1997–2000 Volvo S70 / S70 T5
- 1998 Volvo S70 / S70 R
- 1997–2000 Volvo V70 / V70 T5
- 1998 Volvo V70 V70 R
- 1998–2002 Volvo C70 / C70 T5 (convertible)
- 1997–2002 Volvo C70 / C70 T5 (coupé)
- 2000–2004 Volvo V70 II / V70 T5
- 2001–2004 Volvo S60 / S60 T5
VolvoB5234T4 B5234 T4 Turbocharged
- 1996–1997 Volvo 850 / 850 R
- 1998 Volvo S70 / S70 R
- 1998 Volvo V70 / V70 R / V70 R AWD
Volvo B5234 T5 B5234 T5 B5234FT5 B5234 FT5 Turbocharged
- 1995 Volvo 850 / 850 T-5R (U.S.)
- 1995-1996 Volvo 850 / 850 T-5R
- 1996–1997 Volvo 850 / 850 R
Volvo B5234T6 B5234 T6 Turbocharged
- 1998 Volvo V70 /V70 R AWD
Volvo B5234T7 B5234 T7 Turbocharged
- 1998–2000 Volvo S70
- 1998–2000 Volvo V70
- 2000–2004 Volvo S80 / S80 2.3T
- 2001–2004 Volvo S60 / S60 2.3T
Volvo B5234T8 B5234 T8 Turbocharged
- 1999 Volvo V70 / V70 R AWD
Volvo B5234T9 B5234 T9 Turbocharged
- 2003–2005 Volvo C70 / C70 T5 (convertible)
Volvo B5244S B5244 S N.A
- 2000 Volvo S70 2.4
- 2000 Volvo V70 2.4
- 2001–2009 Volvo S60 2.4
- 2001–2007 Volvo V70 II / V70 2.4
- 1999–2006 Volvo S80 2.4
Volvo B5244S2 B5244 S2 N.A
- 1999–2006 Volvo S80
- 2000 Volvo S70 2.4
- 2000-2007 Volvo V70
- 2001–2009 Volvo S60
Volvo B5244S4 B5244 S4 N.A
- 2004–2010 Volvo S40 II / S40 2.4i
- 2004–2010 Volvo V50 2.4i
- 2007–2010 Volvo C30 2.4i
- 2006–2010 Volvo C70 II / C70 2.4i
VolvoB5244S5 B5244 S5 N.A
- 2004–2010 Volvo S40 II /S40 2.4
- 2004–2010 Volvo V50 2.4
- 2006–2010 Volvo C70 II / C70 2.4
Volvo B5244S6 B5244 S6
VolvoB5244S7 B5244 S7
VolvoB5244T B5244 T Turbocharged
- 1999-2000 Volvo S70 2.4T / S70 2.4T AWD
- 1999-2000 Volvo V70 2.4T / V70 2.4T AWD
- 1999-2000 Volvo V70 XC 2.4T AWD
- 2000–2002 Volvo C70 2.4T (convertible)
- 2000–2002 Volvo C70 2.4T (coupé)
Volvo B5244T2 B5244 T2 Turbocharged
- 2000 Volvo V70 R AWD
Volvo B5244T3 B5244 T3 Turbocharged
- 2001–2003 Volvo S80 2.4T
- 2001–2003 Volvo S60 2.4T
- 2000–2003 Volvo V70 II / V70 2.4T
- 2001–2002 Volvo V70 XC II / V70 XC 2.4T AWD
Volvo B5244T4 B5244 T4 Turbocharged
- 2005–2006 Volvo S60 2.4T
- 2005 Volvo V70 II / V70 2.4T
- 2005–2006 Volvo XC70 2.4T AWD
Volvo B5244T5 B5244 T5 Turbocharged
- 2005–2009 Volvo S60 / S60 T5
- 2005–2007 Volvo V70 I / V70 T5
Volvo B5244T7 B5244 T7 Turbocharged
- 2003–2005 Volvo C70 C70 2.4T (convertible)
Volvo B6244FS B6244 FS N.A
- 1995–1997 Volvo 960 2.4 24V
- 1997–1998 Volvo S90 2.4 24V
- 1997–1998 Volvo V90 2.4 24V
Volvo B5252S B5252 S N.A
- 1996 Volvo 850 / 850 2.4_10V or 850 2.5i
- 1997–1998 Volvo S70
VolvoB5252FS B5252 FS
- 1993–1997 Volvo 850
- 1997–1999 Volvo S70
- 1997–1999 Volvo V70
Volvo B5254F B5254 F
- 1991–1994 Volvo 850
Volvo B5254FS B5254 FS
- 1995 Volvo 850
- 1997-1999 Volvo S70
- 1996–1998 Renault Safrane / Safrane 2.5 or Safrane 2.4 20V
Volvo B5254S B5254 S
- 1995–1997 Volvo 850 / 850 2.5-20V 850 2.5 20V / 850 GLT
- 1997–1999 Volvo S70 / S70 2.5 20V
- 1999 Volvo V70 / V70 2.5 20V
- 1999 Volvo C70 / C70 2.5 20V (coupé)
Volvo B5254T B5254 T
- 1997 Volvo 850 850 AWD or 850 2.5T
- 1997–1999 Volvo S70 / S70 2.5T or S70 AWD
- 1997–1999 Volvo V70 / V70 2.5T, V70 AWD / V70 2.5T AWD
- 1998–1999 Volvo V70 XC / V70 XC AWD / V70 XC 2.5T AWD / V70 GLT
- 1998–1999 Volvo C70 / C70 2.5T (convertible)
- 1998–1999 Volvo C70 / C70 2.5T (coupé)
Volvo B5254T2 B5254 T2
- 2003–2009 Volvo S60 / S60 2.5T or S60 2.5T AWD
- 2003–2008 Volvo V70 II / V70 2.5T or V70 2.5T AWD
- 2003–2007 Volvo XC70 / XC70 2.5T AWD
- 2003–2006 Volvo S80 / S80 2.5T
- 2003–2012 Volvo XC90 / XC90 2.5T AWD
Volvo B5254T3 B5254 T3
- 2005–2008 Volvo S40 II / S40 T5
- 2005–2008 Volvo V50 / V50 T5
- 2007 Volvo C30 / C30 T5
- 2006–2007 Volvo C70 / C70 T5
- 2005–2011 Ford Focus ST
- 2007-2010 Ford Mondeo Mk4 / XR5 Turbo for the Australian market.
- 2007-2010 Ford S-Max
- 2009-2010 Ford Focus RS
- 2011 Ford Focus RS 500
- 2008–2012 Ford Kuga 2.5T2008-2010 Euro 4, 2011-2012 Euro 5
- 2004–2007 Volvo V70 II / V70 R AWD
Volvo B5254T5 B5254 T5
- 2011–2012 Volvo S60 II / S60 T5
Volvo B5254T6 B5254 T6
- 2007–2009 Volvo S80 II / S80 2.5T
- 2008–2009 Volvo V70 III / V70 2.5T or V70 2.5T AWD
- 2006–2010 Ford S-Max 2.5T
- 2007–2010 Ford Mondeo 2.5T or Mondeo XR5 Turbo in Australia
Volvo B5254T7 B5254 T7
- 2008–2012 Volvo S40 II / S40 T5
- 2008–2012 Volvo V50 / V50 T5
- 2008–2013 Volvo C30 / C30 T5
- 2008–2013 Volvo C70 II / C70 T5
Volvo B5254T8 B5254 T8
- 2009–2011 Volvo S80 II / S80 2.5FT
- 2009 Volvo V70 III / V70 2.5FT'
Volvo B5254T10 B5254 T10
- 2010–2012 Volvo S80 II / S80 2.5T
- 2010–2012 Volvo V70 II / V70 2.5T
Volvo B5254T11B5254 T11
- 2010–2011 Volvo S80 II / S80 2.5FT
- 2010 Volvo V70 III / V70 2.5FT
- 2013–2015 Volvo V40 II / V40 T5
- 2013–2015 Volvo V40CC / V40CC T5 AWD
- 2013–2015 Volvo S60 II / S60 T5
- 2013–2015 Volvo V60 / V60 T5
- 2013–2016 Volvo XC60 / XC60 T5 AWD
- 2014–2016 Volvo XC70 II / XC70 T5 or XC70 T5 AWD
Volvo B5254T14 B5254 T14
- 2013–2015 Volvo V40 II / V40 T5
- 2013–2015 Volvo V40CC T5
- 2013–2016 Volvo S60 II / S60 T5
- 2013–2016 Volvo V60 T5
- 2016 Volvo XC70 II / XC70 T5 AWD
Volvo B6254FS B6254 FS
- 1995–1997 Volvo 960 2.5 or 960 24V
- 1997–1998 Volvo S90 2.5 or S90 24V
- 1997–1998 Volvo V90 2.5 or V90 24V
Volvo B6284T B6284 T Turbocharged Twin-Turbo
- 1999–2002 Volvo S80 / S80 T6
Volvo B6294S B6294 S N.A
- 2003 Volvo S80 / S80 2.9
Volvo B6294S2 B6294 S2 N.A
- 2003–2006 Volvo S80 / S80 2.9
Volvo B6294T B6294 T Turbocharged
- 2002–2006 Volvo S80 / S80 T6
- 2003–2006 Volvo XC90 / XC90 T6
Volvo B6304S B6304 S N.A
- 1991–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
- 1994–1999 Indigo 3000
- 1999 Volvo S80
Volvo B6304F1 B6304 F1 N.A
- 1995–1997 Volvo 960
- 1997–1998 Volvo S90
- 1997–1998 Volvo V90
Volvo B6304S2 B6304 S2 N.A
- Volvo 960 later model years / various
Volvo B6304S3 B6304 S3 N.A
- 1999 Volvo S80
Volvo B6304G B6304 G N.A
- 1997–1998 Volvo S90 / S90 3.0 24V
- 1997–1998 Volvo V90 / V90 3.0 24V
