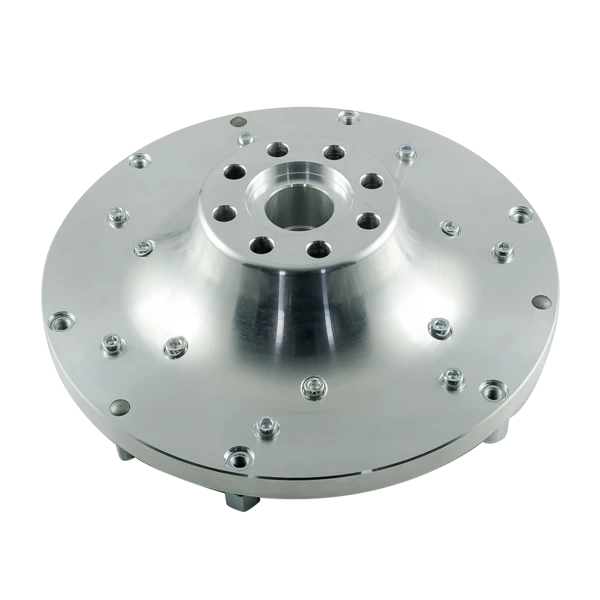

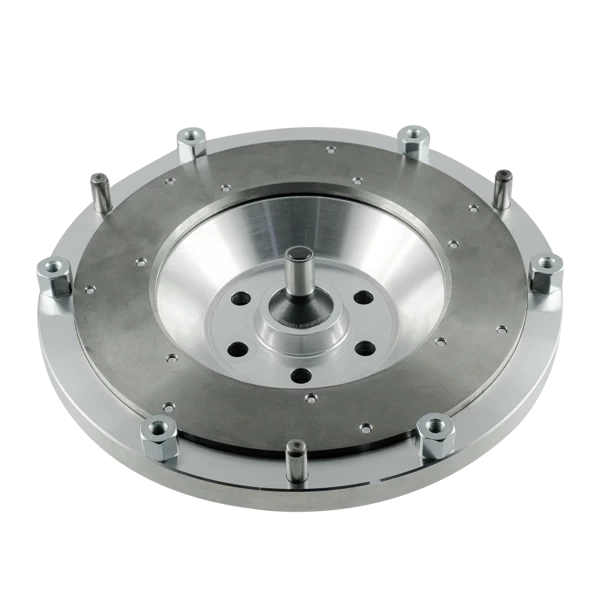

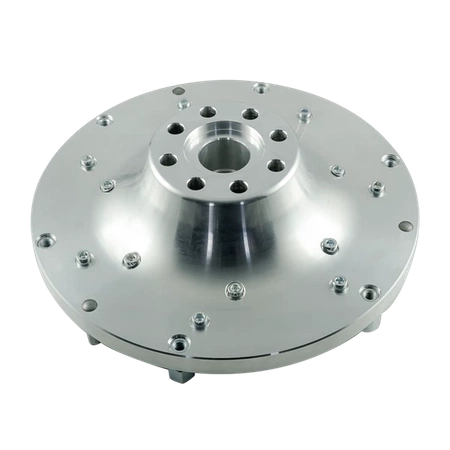

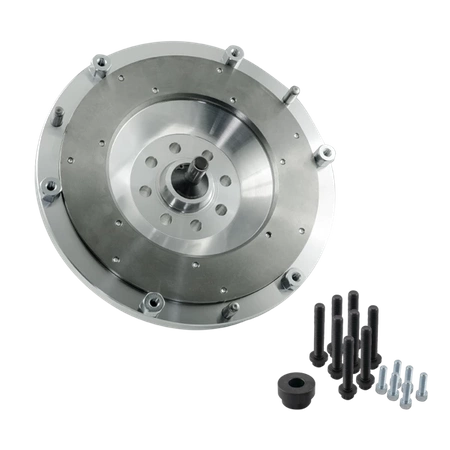

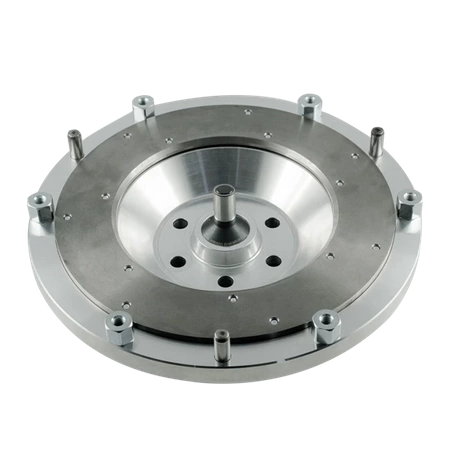

Flywheel GM Chevrolet LT - BMW N57 N47S GS6-53DZ JGL JGG - 240mm / 9.45"
- Custom flywheel GM Chevrolet V8 LT1 LT4 5th gen / EcoTec3 - BMW N57n ZF GS6-53DZ JGL E9x 330D / N47s E8x 123D GS6-53DZ JGG 6-speed Diesel - SMF | 240mm / 9.45"
Save by buying more
PMC Motorsport Custom flywheel GM Chevrolet V8 LT1 LT4 5th gen / EcoTec3 - BMW N57n ZF GS6-53DZ JGL E9x 330D / N47s E8x 123D GS6-53DZ JGG 6-speed Diesel - SMF | 240mm / 9.45"
Do you want to mate a GM Chevrolet V8 LT1 LT4 5th gen / EcoTec3 engine with a manual 6-speed ZF GS6-53DZ gearbox? Our gearbox adapter is the ideal solution for you. Custom flywheels dedicated to PMC Motorsport adapters are made of aluminum with a replaceable friction plate, tested and balanced before shipment. Flywheel designed for a 240mm pressure plate (GS6-53DZ BMW OE).
PMC Motorsport gearbox adapter plates are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and gearbox, which is crucial for the durability of the drivetrain.
All of our production and R&D design department are located in Poland. Over 90% of the components are manufactured by our company.
Selection assistance and post-purchase support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right set for you. In case of any doubts during installation, we provide technical support. You can reach out to us via the contact form.
Individual component purchase
In our product offer, every component of our set can be purchased separately.
Thousands of produced adapters and satisfied customers around the world.
PMC Motorsport adapters are used both in Daily cars and in professional motorsport projects.
From the very beginning, we focus on the quality of the parts we manufacture. After each production stage, the element is inspected. Every component produced by us is engraved with a production serial number.
Quality confirmed by ISO PN-EN ISO 9001:2015 certificate
We ship our products to virtually all countries in the world. European Union countries (excluding islands) and the United Kingdom have automatically calculated shipping costs. For countries not on the list, after placing an order, our team will calculate the shipping cost and add it to your order. You will receive an email with the total order cost.
PLEASE NOTE: The provided shipping quote along with the product price does not include additional fees / customs duties that may apply depending on the destination country.
0% VAT
0% VAT for customers holding an active European VAT number (option for B2B customers outside Poland) and in the case of export outside the EU borders.
Upon successful verification in the VIES system, we modify the order by removing the calculated VAT.
| Matching engines: | Matching gearboxes: |
|
GM Small Block Chevrolet LSx GM Chevrolet LSA GM Chevrolet V8 LT GM V8 Small Block Chevrolet LT1 5.GEN GM V8 Small Block Chevrolet LT4 5.GEN GM Chevrolet EcoTec3 GM 5.3 Liter V8 EcoTec3 L84 GM 6.2 Liter V8 EcoTec3 L87 |
ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed ZF S6-53 GS6-53DZ JGG (TJGG) BMW N47S E8x 123D ZF S6-53 GS6-53DZ JGL (TJGL) BMW N57n E9x 330D |
Additional information
PMC Motorsport parts are designed for motorsport use. For track use only.
Parts intended for installation by professionals with knowledge of engine SWAPs and vehicle modifications - in workshops and using properly suited tools.
The adapter installation manual contains only basic knowledge necessary for physically joining the engine and gearbox outside the vehicle body.
Depending on the specific car model, additional modifications may be required, such as: adjusting mounts, bushings, engine firewall, gearbox tunnel, driveshaft length, etc.
Our adapters are made from fully recyclable materials.
Installation instructions
The flywheel requires the use of a PMC gearbox adapter plate. To install the flywheel, it is necessary to use the automatic version flexplate Chevrolet LT OE (not included). The clutch release arm is mounted in the lower release bearing position.
FAQ
- Do I need an additional gearbox adapter plate for the PMC Motorsport Chevrolet LS flywheel?
Yes, to install the flywheel you need to use a 35mm PMC Motorsport F0M57-LS gearbox adapter plate.
- Which starter motor do I need to use to install the PMC Motorsport Chevrolet LT flywheel?
A Chevrolet LT (OE) starter motor must be used.
- What torque should be used to tighten the PMC Motorsport Chevrolet LT flywheel?
The flywheel should be tightened with a torque of 80Nm / 59ft·lb, using threadlocker
- Does the PMC flywheel need to be balanced additionally?
Every PMC Motorsport flywheel is balanced before shipment (our tolerance is 4g); in case of installing a custom clutch kit, we recommend an additional check.
GM 6.2 Liter V8 Supercharged LSA Engine
| Displacement: | 6.2L / 376 cu. in. |
|---|---|
| Aspiration: | Supercharged |
| Introduced: | 2009 model year |
| Discontinued: | 2015 |
| Predecessor: | LS3 / Gen IV Small Block |
| Successor: | LT4 / Gen V Small Block |
| Assembly: | St. Catharines, Ontario, Canada |
Specifications
| Type: | 6.2L Gen IV V8 Small Block |
| Displacement: | 6162 cc (376 ci) |
| Engine Orientation | Longitudinal |
| Compression ratio: | 9.1:1 |
| Valve configuration: | Overhead valves (2 valves per cylinder) |
| Assembly site: | Silao, Mexico |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92 mm |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6200 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | A356-T6 rotocast cast aluminum |
| Intake manifold: | Cast aluminum |
| Exhaust manifold CTS: | High silicon / high moly cast iron |
| Exhaust manifold Camaro: | Cast stainless steel |
| Main bearing caps: | Nodular Iron |
| Crankshaft: | Forged steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged powder metal |
| Additional features | |
| 1.9 L/rev Supercharger | |
| Integrated single coolant to air intercooler | |
| Piston oil spray cooling | |
| Direct mount ignition coils | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Valves per cylinder | 2 |
| Bore Center (mm) | 111.76 |
Vehicle Applications
- 2012-2015 Chevrolet Camaro ZL1
- 2008-2013 Cadillac CTS-V
GM 6.2 Liter V8 Small Block LT1
| Displacement: | 6.2L / 376 cu. in. |
| Aspiration: | Natural |
| Introduced: | 2014 model year |
| Discontinued: | - |
| Predecessor: | LS3 / Gen 4 Small Block |
| Successor: | LT2 |
| Assembly: | Tonawanda, New York |
Specifications
| Type: | 6.2L Gen V V8 Small Block |
| Displacement: | 6.2L (6162cc / 376 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 11.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Tonawanda, New York, USA |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92mm |
| Fuel system: | Direct Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6600 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Nodular Iron |
| Main bearing caps: | Cast Nodular |
| Crankshaft: | Forged Steel |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Variable Valve Timing (VVT) | |
| Electronic throttle control | |
| Extended life accessory drive belt | |
| Extended life coolant | |
| Extended life spark plugs | |
| Oil Life Monitor System | |
| Dexos 5W30 | |
| Dual-pressure control and variable displacement oil pump | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2014 Chevrolet C7 Corvette Stingray Base Exhaust
- 2014 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Base Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2017-2019 Chevrolet C7 Corvette Grand Sport
- 2016-present Chevrolet Camaro SS
- 2020-present Chevrolet Camaro LT1
GM 6.2 Liter Supercharged Small Block V8 LT4
| Displacement: | 6.2L / 376 cu. in. |
| Aspiration: | Forced Induction (Supercharger) |
| Introduced: | 2014 model year |
| Discontinued: | - |
| Predecessor: | LS9 / Gen 4 Small Block |
| Successor: | - |
| Assembly: | Tonawanda, New York (Z06, CTS-V, ZL1); Performance Build Center, Bowling Green Kentucky (CT5-V Blackwing) |
Specifications
| Displacement: | 6162cc (376 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 10.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly sites | |
| For CTS-V, Camaro ZL1 | Tonawanda, New York |
| For Corvette Z06: | Bowling Green, Kentucky |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92mm |
| Fuel system: | DI |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6600 RPM |
| Drive Belt Rib Count: | 8 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Cast Aluminum Supercharger |
| Exhaust manifold: | Cast Stainless (Corvette) or Fabricated Stainless (CTS-V) |
| Main bearing caps: | Cast Nodular |
| Crankshaft: | Forged steel |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Additional Features | |
| 1.74 L/rev Supercharger | |
| Integrated dual coolant-to-air-intercoolers | |
| Active Fuel Management | |
| Variable Valve Timing (VVT) | |
| Electronic throttle control | |
| Extended life coolant | |
| Extended life spark plugs | |
| Oil Life Monitor System | |
| Dexos 5W30 | |
| Dual-pressure control and variable displacement oil pump | |
| Dry sump (Corvette only) | |
| 58x crank timing | |
Vehicle Applications
- 2015 – 2019 Chevrolet C7 Corvette Z06 GM
- 2015 – 2019 Chevrolet C7 Corvette Z06
- 2016 – 2019 Cadillac CTS-V Sedan
- 2017 – present Chevrolet Camaro ZL1
- 2017 – present Chevrolet Camaro ZL1
- 2022 – present Cadillac CT5-V Blackwing
- 2022 – present Cadillac CT5-V Blackwing
- 2023 – present Cadillac Escalade-V
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGL code JGL 6-speed
- BMW Engine: N57D30A
- BMW OE : 23 00 7 582 711 / 23 00 7582711 / 23007582711
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 010 020 / 23.00-7582710 / 23 00 7582710 / 23007582710
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 3-Series 3er E90 E91 E92 E93 LCI
- E90N 325d N57
- E90N 330d N57
- E91N 325d N57
- E91N 330d N57
- E92 330d N57
- E92N 325d N57
- E92N 330d N57
- E93 330d N57
- E93N 325 N57
- E93N 330d N57
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGG code JGG
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 010 017 / 23.00-7568128 / 23 00 7568128 / 23007568128
- BMW 1' E81 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
- BMW 1' E82 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
- BMW 1' E87 LCI 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
- BMW 1' E88 123D N47s ZF GS6-53DZ - TJGG / BMW OE 23 00 7 577 238 / 23 00 7577238
