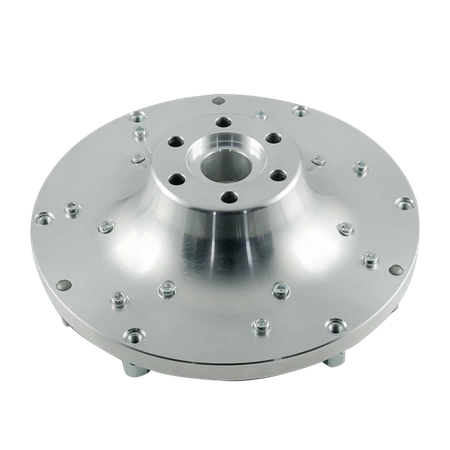

Flywheel GM Chevrolet LS - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"
- Custom aluminum flywheel designed to mate (swap / conversion) the GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec with the BMW ZF (ZF Friedrichshafen) GS6 6-speed manual gearbox.
PMC Motorsport Custom Flywheel GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW N57n ZF GS6-53DZ HS1 HB7 HAF F10 530D 6- speed Diesel - 240mm / 9.45"
Custom aluminum flywheel designed to mate (swap / conversion) the GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec with the BMW ZF (ZF Friedrichshafen) GS6 6-speed manual gearbox.
PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection with a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured by our company.
Selection assistance and after-sales support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, they will provide technical support. You can contact us via the contact form.
Individual component purchase
Our offer includes every element of our kit, which can be purchased separately.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used in both daily cars and professional projects intended for motorsport.
From the beginning, we focus on the quality of the parts we manufacture. Every element is inspected after each stage of production. Every component produced by us is engraved with a production serial number.
Quality confirmed by ISO certificate PN-EN ISO 9001:2015
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will calculate shipping costs after the order is placed and add them to the order. You will receive an email with the order cost.
NOTE: The provided shipping quote along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for customers with an active European VAT ID (option for B2B customers outside Poland) and for export outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: | GM Chevrolet V8 LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM Chevrolet V8 Vortec GM Small Block V8 Chevrolet Vortec 4800 LR4 GM Small Block V8 Chevrolet Vortec 5300 LM4 LM7 L33 L59 GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX) L76 L77 L96 LFA LQ4 LQ9 LZ1 LY6 GM Small Block V8 Chevrolet Vortec 6200 L92 L94 L9H |
| Compatible gearboxes: | ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed ZF S6-53 GS6-53DZ HS1 (THS1) BMW N57n F10 530D ZF S6-53 GS6-53DZ HB7 (THB7) BMW N57n F10 530D ZF S6-53 GS6-53DZ HAF (THAF) BMW N57n F10 530D |
Additional Information
PMC Motorsport parts are intended for motorsport. For use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.
The adapter installation manual contains only basic knowledge necessary for the physical connection of the engine with the gearbox outside the car body.
Depending on the car, additional modifications may occur, such as: fitting mounts, bushings, engine firewall, gearbox tunnel, driveshaft length, etc.
Our adapters are made from materials that are fully recyclable.
The flywheel requires the use of a PMC gearbox adapter. For installation, it is necessary to use an OE Chevrolet LS automatic transmission flexplate (part no. 12654640 12553054 12563136 12580709 12602448 12606620 12637677, not included). The clutch release fork should be mounted in the lower position of the release bearing.
- Do I need an additional gearbox adapter for the PMC Motorsport Chevrolet LS flywheel?
Yes, to install the flywheel you need to use the 35mm PMC Motorsport F0M57-LS
- Which starter motor should I use with the PMC Motorsport Chevrolet LS flywheel?
You should use the Chevrolet LS (OE) starter motor.
- What is the torque specification for the PMC Motorsport Chevrolet LS flywheel bolts?
The flywheel should be tightened to 80Nm / 59ft·lb, using thread locker.
- Does the PMC flywheel need additional balancing?
Every PMC Motorsport flywheel is balanced before shipping (our tolerance is 4g). In the case of installing a custom clutch kit, we recommend an additional check.
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THB7 code HB7 6-speed
- BMW Engine: N57
- BMW OE: 23 00 7 606 344 / 23 00 7606344 / 23007606344
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 010 022 / 23.00-7594141 / 23 00 7594141 / 23007594141
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 5-Series 5er F10 F11
- F11 530D N57
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THAF code HAF 6-speed
- BMW Engine: N57
- BMW OE:
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 1067 081 155 / 23.00-4605402 / 23 00 4605402 / 23004605402
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 5-Series 5er F10 F11
- F11 530D N57
BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THS1 code HS1 6-speed
- BMW Engine: N57 N57N
- BMW OE: 23 00 7 624 205 / 23 00 7634205 / 23007634205
- Bell housing: 1067 401 154 / 1067401154
- Sticker number: 23.00-7613546 / 23 00 7613546 / 23007613546
Ratio
- 1 - 5.080
- 2 - 2.804
- 3 - 1.783
- 4 - 1.260
- 5- 1.000
- 6 - 0.835
- R- 4.607
BMW 5-Series 5er F10 F11 LCI
- F10 530D N57
- F10N 530D N57N
- F11 530D N57
- F11N 530D N57N
