Flywheel GM Chevrolet LT - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"
Flywheel GM Chevrolet LT - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"
Flywheel GM Chevrolet LT - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"
Flywheel GM Chevrolet LT - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"
Flywheel GM Chevrolet LT - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"
Flywheel GM Chevrolet LT - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"

Flywheel GM Chevrolet LT - BMW N57 GS6-53DZ HS1 HB7 HAF - 240mm / 9.45"

  • PMC Motorsport Custom Flywheel GM Chevrolet LT LT1 LT4 - BMW N57n ZF GS6-53DZ HS1 HB7 HAF F10 530D 6-speed Diesel / N47 GS6-35DZ 6-speed - 240mm / 9.45"
549,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

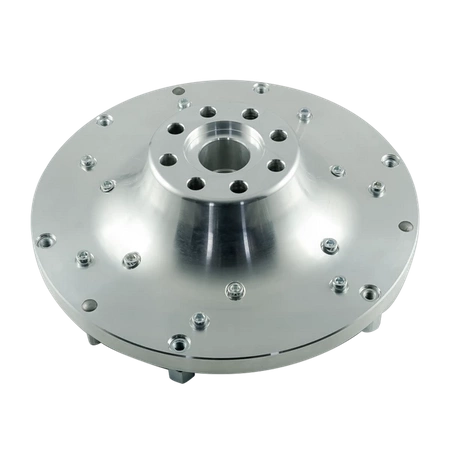

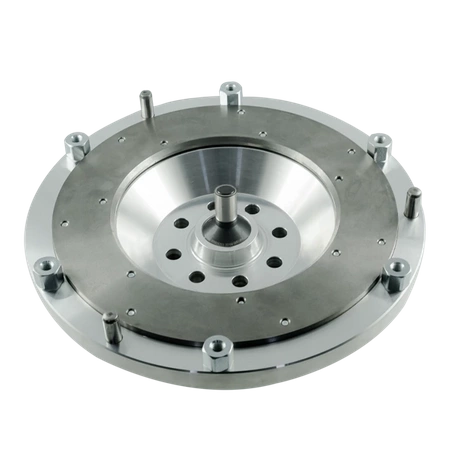

PMC Motorsport Custom Flywheel GM Chevrolet LT LT1 LT4 - BMW N57n ZF GS6-53DZ HS1 HB7 HAF F10 530D 6-speed Diesel / N47 GS6-35DZ 6-speed - 240mm / 9.45"

Aluminum custom flywheel enabling the connection (swap/conversion) of the GM Chevrolet LT engine with a manual ZF transmission (ZF Friedrichshafen) from BMW.

Why Choose BMW Gearboxes?

Availability and price. Millions of BMW vehicles produced globally guarantee easy access to spare parts. Both parts and complete gearboxes are widely available at authorized service centers and on the secondary market.

Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used in both amateur and professional motorsport for many years. They can handle very high torque (some models over 1000 Nm) while maintaining high reliability. They are ideal for engine swaps in high-performance projects for daily use.

Speed and convenience. New generation automatic gearboxes such as ZF 8HP or Getrag DCT DKG offer ultra-fast shifting times (as fast as 0.2 seconds), which significantly improves driving dynamics.

Why Choose PMC Motorsport Parts and Adapters?

Experience. Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily vehicles and professional motorsport projects.

Professionalism. From design to implementation, our parts go through a long process. Every element we produce is measured with a measuring arm and 3D scanner. Prototypes undergo extensive testing to eliminate potential issues. We only use certified materials from trusted suppliers. Our modern CNC machinery and experienced workforce ensure high quality.

Quality. We have always prioritized the quality of the parts we produce. Each component is inspected after every production step. Every part produced by us is engraved with a serial number. Quality is confirmed by ISO PN-EN ISO 9001:2015 certification.

Perfect coaxiality. Our adapters guarantee perfect alignment between the engine and gearbox.

Made in EU. All our production and design departments are located within the European Union.

Individual component purchase. We offer every component of our kit for individual purchase. If you need a spare part, contact us at office@pmcmotorsport.com.

Fast international shipping. We ship our products worldwide. Shipping costs to EU countries (except for islands) and the UK are automatically calculated. For other regions, we will send the shipping calculation after purchase.

VAT 0% for customers with an active European VAT number (available for B2B customers from outside Poland).

Help with selection and after-sales support. The PMC Motorsport team will help you choose the right kit and provide technical support during installation. Contact us via Facebook, Instagram, or email at office@pmcmotorsport.com.

Compatible Engines:

GM Chevrolet V8 LT

    GM V8 Small Block Chevrolet LT1 5.GEN

    GM V8 Small Block Chevrolet LT4 5.GEN

GM Chevrolet EcoTec3

    GM Chevrolet 5.3 Liter V8 EcoTec3 L83

    GM Chevrolet 5.3 Liter V8 EcoTec3 L84

    GM Chevrolet 6.2 Liter V8 EcoTec3 L87

Compatible BMW Manual Transmissions (Diesel):

BMW ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6 biegów

    BMW N57n F10 530D ZF S6-53 GS6-53DZ HS1 (THS1)

    BMW N57n F10 530D ZF S6-53 GS6-53DZ HB7 (THB7)

    BMW N57n F10 530D ZF S6-53 GS6-53DZ HAF (THAF)

BMW ZF (ZF Friedrichshafen) S6-45 GS6-45DZ 6-biegów

    BMW N47 N47S1 N47N N57 ZF GS6-45DZ

    BMW N47 N47S1 N47N N57 ZF GS6X45DZ

Installation Instructions

!!! PMC Motorsport parts are intended for motorsport use on race tracks. Parts should be installed by professionals using the appropriate tools in workshops equipped for this purpose !!!

The flywheel is made from aluminum and cast iron and are fully recyclable.

Check also our complete conversion kits under the complete kits tab.

Symbol
K0HB7-240-LT
Producer code
5903707418220
GM Chevrolet engine list
Chevrolet LT1 V-GEN 8-crankshaft boltsMore

GM 6.2 Liter V8 Small Block LT1

Displacement: 6.2L / 376 cu. in.
Aspiration: Natural
Introduced: 2014 model year
Discontinued: -
Predecessor: LS3 / Gen 4 Small Block
Successor: LT2
Assembly: Tonawanda, New York



Specifications

Type: 6.2L Gen V V8 Small Block
Displacement: 6.2L (6162cc / 376 ci)
Engine orientation: Longitudinal
Compression ratio: 11.5:1
Valve configuration: Overhead valves
Valves per cylinder: 2
Assembly site: Tonawanda, New York, USA
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 103.25 x 92mm
Fuel system: Direct Injection
Fuel type: Premium Recommended
Maximum Engine Speed: 6600 RPM
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Composite
Exhaust manifold: Cast Nodular Iron
Main bearing caps: Cast Nodular
Crankshaft: Forged Steel
Camshaft: Billet Steel
Connecting rods: Forged Powder Metal
Additional Features
Active Fuel Management
Variable Valve Timing (VVT)
Electronic throttle control
Extended life accessory drive belt
Extended life coolant
Extended life spark plugs
Oil Life Monitor System
Dexos 5W30
Dual-pressure control and variable displacement oil pump
58x crank timing
Emissions Controls
Catalytic converter
Three-way catalyst
Positive crankcase ventilation



Vehicle Applications

  • 2014 Chevrolet C7 Corvette Stingray Base Exhaust
  • 2014 Chevrolet C7 Corvette Stingray Performance Exhaust
  • 2015-2019 Chevrolet C7 Corvette Stingray Base Exhaust
  • 2015-2019 Chevrolet C7 Corvette Stingray Performance Exhaust
  • 2017-2019 Chevrolet C7 Corvette Grand Sport
  • 2016-present Chevrolet Camaro SS
  • 2020-present Chevrolet Camaro LT1
Chevrolet LT4 V-GEN 8-crankshaft boltsMore

GM 6.2 Liter Supercharged Small Block V8 LT4

Displacement: 6.2L / 376 cu. in.
Aspiration: Forced Induction (Supercharger)
Introduced: 2014 model year
Discontinued: -
Predecessor: LS9 / Gen 4 Small Block
Successor: -
Assembly: Tonawanda, New York (Z06, CTS-V, ZL1); Performance Build Center, Bowling Green Kentucky (CT5-V Blackwing)



Specifications


Displacement: 6162cc (376 ci)
Engine Orientation: Longitudinal
Compression ratio: 10.0:1
Valve configuration: Overhead valves
Valves per cylinder: 2
Assembly sites
For CTS-V, Camaro ZL1 Tonawanda, New York
For Corvette Z06: Bowling Green, Kentucky
Valve lifters: Hydraulic roller
Firing order: 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3
Bore x stroke: 103.25 x 92mm
Fuel system: DI
Fuel Type: Premium required
Maximum Engine Speed: 6600 RPM
Drive Belt Rib Count: 8
Materials
Block: Cast aluminum
Cylinder head: Cast aluminum
Intake manifold: Cast Aluminum Supercharger
Exhaust manifold: Cast Stainless (Corvette) or Fabricated Stainless (CTS-V)
Main bearing caps: Cast Nodular
Crankshaft: Forged steel
Camshaft: Billet Steel
Connecting rods: Forged Powder Metal
Emissions Controls
Catalytic converter
Three-way catalyst
Positive crankcase ventilation
Additional Features
1.74 L/rev Supercharger
Integrated dual coolant-to-air-intercoolers
Active Fuel Management
Variable Valve Timing (VVT)
Electronic throttle control
Extended life coolant
Extended life spark plugs
Oil Life Monitor System
Dexos 5W30
Dual-pressure control and variable displacement oil pump
Dry sump (Corvette only)
58x crank timing



Vehicle Applications

  • 2015 – 2019 Chevrolet C7 Corvette Z06 GM
  • 2015 – 2019 Chevrolet C7 Corvette Z06
  • 2016 – 2019 Cadillac CTS-V Sedan
  • 2017 – present Chevrolet Camaro ZL1
  • 2017 – present Chevrolet Camaro ZL1
  • 2022 – present Cadillac CT5-V Blackwing
  • 2022 – present Cadillac CT5-V Blackwing
  • 2023 – present Cadillac Escalade-V
GM 5.3 Liter V8 EcoTec3 L83
GM 5.3 Liter V8 EcoTec3 L84
GM 6.2 Liter V8 EcoTec3 L87
Manual gearbox (Diesel)
BMW N47 N47S1 N47N N57 ZF GS6-45DZ
BMW N47 N47S1 N47N N57 (xDrive) ZF GS6X45DZ 6-speed
BMW N57 ZF GS6-53DZ HB7 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THB7 code HB7 6-speed

  • BMW Engine: N57
  • BMW OE: 23 00 7 606 344 / 23 00 7606344 / 23007606344
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number:  1067 010 02223.00-7594141 / 23 00 7594141 / 23007594141

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er F10 F11

  • F11 530D N57
BMW N57 ZF GS6-53DZ HAF 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THAF code HAF 6-speed

  • BMW Engine: N57
  • BMW OE:
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number:  1067 081 155 / 23.00-4605402 / 23 00 4605402 / 23004605402

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er F10 F11

  • F11 530D N57
BMW N57 N57N ZF GS6-53DZ HS1 6-speedMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THS1 code HS1 6-speed

  • BMW Engine: N57 N57N
  • BMW OE: 23 00 7 624 205 / 23 00 7634205 / 23007634205
  • Bell housing: 1067 401 154 / 1067401154
  • Sticker number: 23.00-7613546 / 23 00 7613546 / 23007613546

Ratio

  • 1 - 5.080
  • 2 - 2.804
  • 3 - 1.783
  • 4 - 1.260
  • 5- 1.000
  • 6 - 0.835
  • R- 4.607

BMW 5-Series 5er F10 F11 LCI

  • F10 530D N57
  • F10N 530D N57N
  • F11 530D N57
  • F11N 530D N57N
Clutch Set
Flywheel Type
Single Disc
Diameter of Friction Plate
240mm / 9.45"
Recommended clutch pressure plate
Sachs Performance 88 308 200 1243 / 883082.001243
Sachs XTend 3000 951 952 (M57N M57N2)
Clutch disc
Dedicated to your gearbox - 240mm / 9.45"
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
GM Chevrolet LSX LSA LT1 LT4 OE
Flexplate / ring gear / Drive plate required
GM Chevrolet LSX LSA LT1 LT4 OE
ADDITIONAL INFORMATION
Set includes
Clutch cover - pressure plate bolts kit
Crankshaft bolts kit
Flywheel centering sleeve
Material
Aluminium
Replaceable friction surface
Yes
Gearbox adapter required
F0M57-LS
Product sales codes included
K0HB7-240-LT
EAN
5903707415526
