PMC Motorsport adapter / conversion kit / clutch kit Volvo White T5 T6 - BMW M57n ZF GS6-53DZ HGD JGA E60 525D 530D - 215mm / 8.46" + Sachs XTend 3000.950.709-S max. 700Nm / 516.12 lb/ft Twin disc

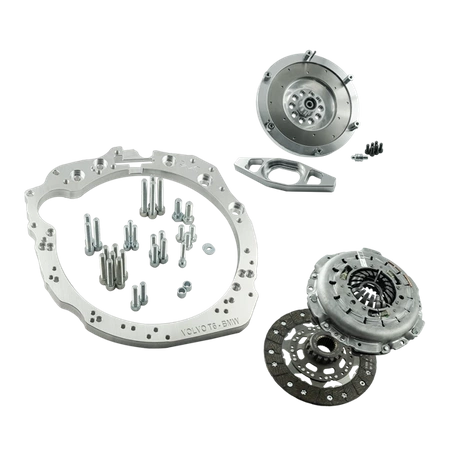

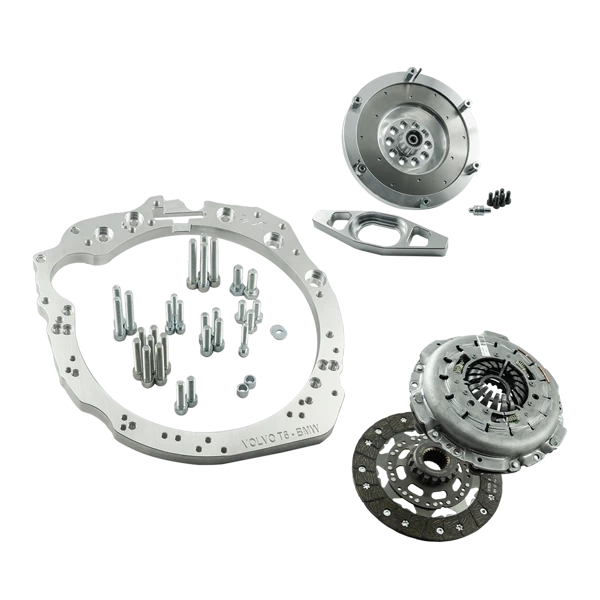

Clutch kit allowing the connection (swap / conversion) of the Volvo White T5 T6 engine with a manual 6-speed ZF (ZF Friedrichshafen) GS6 gearbox from BMW. The adapter is designed for the very popular and durable 6-speed ZF GS6-53DZ gearbox. The kit includes a Sachs XTend 3000.950.709-S twin-disc clutch: a self-adjusting pressure plate, two organic clutch discs, and a release bearing with a clutch fork. Maximum torque: 700Nm / 516.12 lb/ft.

Are you planning to perform a Volvo White T5 T6 swap in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace an automatic transmission with a manual one from BMW and gain new possibilities. PMC Motorsport adapters are not only for gearbox replacements in Volvo White T5 T6, but also provide support in implementing Volvo White SWAPs in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

PMC Motorsport gearbox adapters are synonymous with precision and top quality. The design process based on 3D scanning and inspection using a measuring arm ensures a perfect fit. Production on modern CNC machines guarantees ideal alignment of the engine and gearbox, which is crucial for the durability of the drivetrain.

Additional Information

Why choose BMW gearboxes?

Availability and price. Millions of cars produced and their worldwide availability guarantee the accessibility of spare parts. Both individual parts and complete transmissions are easily available at authorized dealers (ASO) and on the secondary market.

Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can handle very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAPs in high-power projects intended for daily use.

ZF Friedrichshafen GS6-53DZ

The ZF Friedrichshafen GS6-53DZ 6-speed manual gearbox (S6-53DZ) is an ideal solution for motorsport-prepared cars due to its high durability (1000Nm+) and low price. Input shaft spline type (Male): 32.5x35-26N

ZF GS6-53DZ HGD THGD
ZF GS6-53DZ JGA TJGA

To mount the flywheel, it is necessary to use the flywheel from the automatic Volvo version (part no. 1275370) and Volvo OE 9454743 bolts (not included). The clutch fork should be mounted on the higher release bearing position.

FAQ

1. Which starter motor should be used with the PMC Motorsport Volvo - BMW adapter?

For the adapter installation, the Volvo OE 1 005 821 977 starter motor must be used.

2. Which ring gear should be used for the PMC Motorsport Volvo - BMW flywheel?

When installing the PMC Motorsport Volvo - BMW flywheel, you must use the ring gear (flywheel) from the automatic Volvo version (OE number: 1275370).

3. Can I use the PMC Motorsport Volvo - BMW gearbox adapter for ZF 8HP?

Yes, the PMC Motorsport gearbox adapter itself is universal and fits most BMW gearboxes available on the market (applies to adapters manufactured after 2022). If you wish to change the gearbox to a ZF 8HP automatic, the standard flywheel must be replaced with an 8HP converter adapter (PMC Motorsport).

4. Which clutch can I use with the PMC Motorsport flywheel?

The Volvo - BMW flywheel was designed for the clutch pressure plate from BMW M57 / M57N / M57N2 / N54 / B58 / BMW E46 M3 / Sachs Performance 883082.001243. Clutches from ACT / Spec / Tanaci are very often used with our kit (it is important that the custom pressure plate also fits the BMW OE flywheel: BMW M57 / M57N / M57N2 / N54 / B58). For your gearbox, you must use a clutch disc with the appropriate spline, a dedicated release kit, and a slave cylinder.
