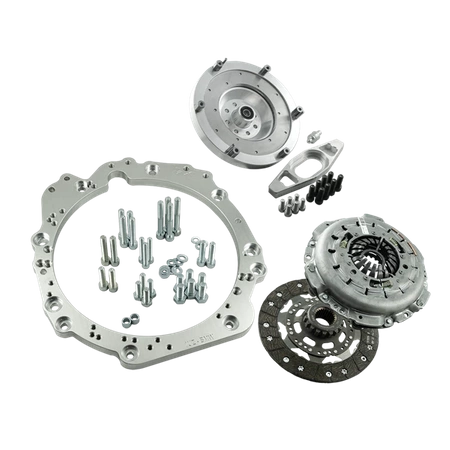

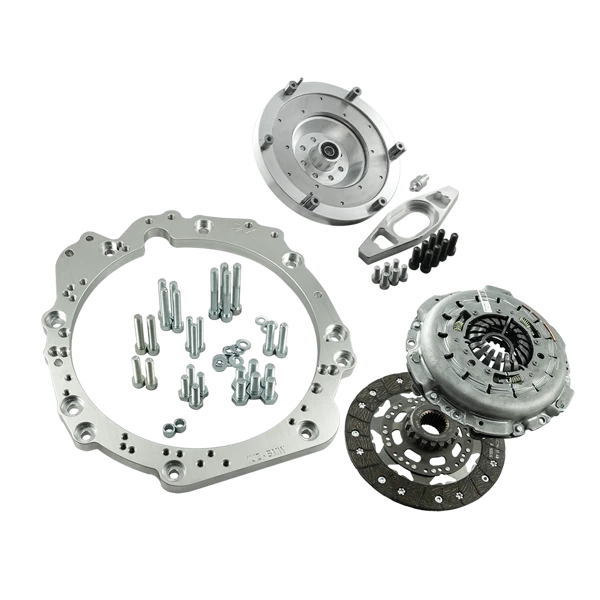

  • PMC Motorsport Stage 2 – clutch kit Toyota Lexus V8 UZ 1UZ 3UZ – 6-speed manual BMW M57N ZF GS6-53DZ HGD JGA HGA E60 530d / E46 330d – 215 mm / 8.46" Twin disc – Sachs XTend 3000 950 709 – max. 700 Nm / 516 lb⋅ft

1 363,00 EUR
incl. VAT / set
of
Express checkout 1-Click(without registration)
The product is available in very small quantities
The product is available in very small quantities
14 days for easy returns
This product is not available in a stationary store
Safe shopping

In a set

Gearbox adapter Toyota 1UZ 3UZ - Manual BMW ZF5 GS5-39DZ GS6-53DZ GS6-53BZ / 8HP / DCT
Gearbox adapter Toyota 1UZ 3UZ - Manual BMW ZF5 GS5-39DZ GS6-53DZ GS6-53BZ / 8HP / DCT (1 pcs.)
365,00 EUR / pcs.
Sachs 3000950709S - without a bearing
Sachs 3000950709S - without a bearing (1 pcs.)
399,00 EUR / pcs.
Flywheel Toyota 1UZ 3UZ - BMW M57n GS6-53DZ HGD JGA - 215mm / 8.46" Twin Disc
Flywheel Toyota 1UZ 3UZ - BMW M57n GS6-53DZ HGD JGA - 215mm / 8.46" Twin Disc (1 pcs.)
599,00 EUR / pcs.

PMC Motorsport – gearbox adapter plates

PMC Motorsport Stage 2 – clutch kit Toyota Lexus V8 UZ 1UZ 3UZ – 6-speed manual BMW M57N ZF GS6-53DZ HGD JGA HGA E60 530d / E46 330d – 215 mm / 8.46" Twin disc – Sachs XTend 3000 950 709 – max. 700 Nm / 516 lb⋅ft

Complete Stage 2 clutch kit designed for engine swap / conversion of the Toyota / Lexus V8 UZ 1UZ-FE 3UZ-FE engine with the ZF GS6-53DZ HGD / JGA / HGA 6-speed manual gearbox sourced from BMW diesel M57N / M57N2 (E60 / E61 530d, E46 330d), including xDrive versions GS6X53DZ HGE / JGB. The kit includes a transmission adapter plate, custom PMC Motorsport twin disc 215 mm flywheel, and a Sachs XTend 3000 950 709 twin disc clutch from BMW E9x M3 V8 – self-adjusting pressure plate (SAC), two clutch discs, and a release bearing with clutch fork. The kit's maximum torque rating is 700 Nm (516 lb⋅ft). An ideal solution for high-power builds – daily driving, drift, and motorsport.

Planning a Toyota / Lexus V8 UZ 1UZ 3UZ swap into your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter plate is a reliable solution. Replace the automatic transmission with a BMW manual gearbox and unlock new potential.

PMC Motorsport adapter plates not only provide an automatic-to-manual conversion for cars equipped with Toyota / Lexus V8 UZ engines, but also facilitate UZ swaps into BMW and other platforms such as Nissan or Mazda.


Aluminum gearbox adapter plate engineered to make gearbox installation as straightforward as possible without radical modifications such as cutting the bellhousing – only an opening for the starter needs to be prepared. Custom flywheels dedicated to PMC Motorsport adapters are made from lightweight aluminum with a replaceable friction surface, fully inspected and dynamically balanced prior to dispatch. Flywheel designed for the Sachs XTend 3000 950 709 (3000.950.709-S) 215 mm (8.46") twin disc clutch from BMW E9x M3 V8. Twin friction discs transmit significantly higher torque than a single disc of the same diameter, maintaining pedal comfort thanks to the self-adjusting clutch pressure plate. Adapter plate thickness: 20 mm (0.78").

PMC Motorsport gearbox adapter plates are synonymous with precision and premium quality. Our design process relies on 3D laser scanning and coordinate measuring arm inspection to guarantee an exact fit. CNC manufacturing ensures flawless concentricity and alignment between the engine and transmission, which is critical for drivetrain longevity.


PMC Motorsport production in Poland

All of our manufacturing and R&D engineering facilities are located in Poland. More than 90% of all components are manufactured entirely in-house.

Selection Guidance & After-Sales Support – PMC Motorsport Support

The PMC Motorsport team will help you select the ideal kit. If you have any questions during installation, our team provides full technical support. You can reach out to us via our contact form.

Individual Component Purchase

Every single component of our conversion kits is available in our product lineup and can be purchased separately.

ISO 9001:2015 Certification PMC Motorsport

Thousands of adapter plates produced and satisfied customers worldwide.

PMC Motorsport adapters are proven both in high-performance daily drivers and in professional, competition-grade motorsport builds.

From the very beginning, quality has been our cornerstone. Each part undergoes rigorous quality control inspections after every manufacturing phase. Every component we produce is laser-engraved with its unique production serial number.

Quality confirmed by PN-EN ISO 9001:2015 certification.

PMC Motorsport Worldwide Shipping

We ship our products to virtually every country across the globe. European Union countries (excluding islands) and the United Kingdom have shipping calculated automatically. For countries not listed, our team will calculate shipping costs upon placing an order and update your order total. You will receive an email confirmation with final shipping charges.

PLEASE NOTE: Shipping quotes along with product prices do not include any customs duties or local import taxes that may apply in the destination country.

0% VAT

0% VAT applies to customers with an active EU VAT number (B2B transactions outside Poland) as well as export orders outside the European Union.

Following successful VIES validation, we update the order to remove VAT charges.

Compatible Engines:

Toyota / Lexus V8 UZ

Toyota / Lexus 1UZ-FE

Toyota / Lexus 3UZ-FE

Compatible Gearboxes:

ZF S6-53 GS6-53DZ 6-speed

ZF S6-53 GS6-53DZ HGD (THGD) BMW M57N / M57N2 E60 530d

ZF S6-53 GS6-53DZ JGA (TJGA) BMW M57N / M57N2 E60 530d

ZF S6-53 GS6-53DZ HGA (THGA) BMW M57N E46 330d

ZF S6X53 GS6X53DZ HGE (THGE) BMW M57N / M57N2 E60 530xd

ZF S6X53 GS6X53DZ JGB (TJGB) BMW M57N / M57N2 E60 530xd


Additional Information

Motorsport grade components – professional installation

PMC Motorsport components are designed for motorsport and closed-circuit racetrack use.

Parts must be installed by experienced professionals with expertise in engine swaps and automotive fabrication – in equipped workshop environments using dedicated tools.

PMC Motorsport adapter plate installation manual

The adapter installation guide covers the essential steps required to physically bolt the engine and gearbox together outside the vehicle chassis.

Depending on the specific chassis, additional modifications may be required, such as custom engine mounts, modified engine mounts/bushings, firewall adjustments, transmission tunnel clearance, or driveshaft length modification.

Fully recyclable materials

Our adapter plates are manufactured entirely from recyclable materials.

Installation Instructions

Installing the custom flywheel requires an automatic flexplate (ring gear) from a Toyota / Lexus OE 32101-50010 and the 4.5 mm spacer washer positioned between the engine block and flexplate, Toyota OE 32116-50010 (not included). Bolt the flywheel to the crankshaft using the supplied bolts torqued to 72 Nm (53.1 lb⋅ft) with threadlocker applied. The clutch release bearing and clutch fork are included in the kit – mount the clutch fork on the higher pivot position of the release bearing, and shorten the release bearing supplied with the Sachs XTend kit by 5 mm according to the diagram below. The GS6-53DZ HGA gearbox (E46 330d) bolts to the adapter plate in the exact same pattern as the M57 GS5-39DZ gearbox – refer to the M57 transmission installation diagram; while HGD, JGA, HGE, and JGB transmissions follow the M57N diagram. An original Toyota UZ OEM starter must be used (OE, not included).

Installation of PMC adapter Toyota Lexus UZ 1UZ 3UZ to BMW ZF GS6-53DZ HGD JGA (M57N / M57N2, E60 530d) gearbox

Installation of PMC adapter Toyota Lexus UZ 1UZ 3UZ to BMW ZF GS6-53DZ HGA (M57N, E46 330d) gearbox – mounted like M57 GS5-39DZ

Installation of Toyota UZ flexplate ring gear with OE 32116-50010 spacer

Installation manual for PMC flywheel Toyota Lexus UZ 1UZ 3UZ – BMW ZF GS6-53DZ HGD JGA HGA for Sachs XTend 215 mm twin disc clutch

Shortening release bearing by 5 mm when installing 215 mm twin disc clutch with ZF GS6-53DZ gearbox – PMC Toyota UZ kit


Frequently Asked Questions

Which engines are compatible with this kit?

Toyota / Lexus V8 UZ family engines: 1UZ-FE (e.g., Lexus LS 400, SC 400, GS 400, Toyota Celsior, Crown, Soarer, Aristo) and 3UZ-FE (e.g., Lexus LS 430, GS 430, SC 430, Toyota Soarer, Crown Majesta).

Which gearboxes are compatible with this kit?

BMW 6-speed manual ZF GS6-53DZ transmissions from M57N / M57N2 engines: HGD (THGD) and JGA (TJGA) from E60 / E61 530d, HGA (THGA) from E46 330d, as well as xDrive models GS6X53DZ HGE (THGE) and JGB (TJGB) from E60 530xd. Input shaft spline: 32.5x35-26N.

How is the HGA gearbox from BMW E46 330d mounted?

The ZF GS6-53DZ HGA gearbox mounts to the adapter plate following the same bolt pattern as the M57 GS5-39DZ transmission – see the M57 gearbox mounting diagram in the "Installation Instructions" section. All other gearboxes (HGD, JGA, HGE, JGB) follow the M57N diagram.

Is it necessary to cut or modify the gearbox bellhousing?

No. The adapter is specifically engineered to prevent cutting the bellhousing – only an opening for the starter needs to be prepared.

What additional parts are required for installation?

An automatic transmission flexplate (ring gear) from a Toyota / Lexus UZ, OE 32101-50010, along with the 4.5 mm spacer between the engine block and flexplate, Toyota OE 32116-50010. You will also need a clutch slave cylinder matching your specific gearbox and an OEM Toyota UZ starter. These parts are not included in the kit.

Which clutch is included in the kit?

A Sachs XTend 3000 950 709 (3000.950.709-S) twin disc clutch kit from the BMW E9x M3 V8 (diameter 215 mm / 8.46"): self-adjusting pressure plate, two clutch friction discs with 32.5x35-26N splines (26 teeth) for the ZF GS6-53DZ gearbox, and a release bearing with clutch fork.

What maximum torque can the Stage 2 kit hold?

The maximum torque capacity of this kit is 700 Nm (516 lb⋅ft).

Does the release bearing require modification?

Yes. When installing this twin disc setup, the release bearing included with the Sachs XTend kit must be shortened by 5 mm, and the clutch fork must be positioned on the higher seat of the bearing. Refer to the illustration in the "Installation Instructions" section.

Which starter motor should be used?

An OEM Toyota UZ starter motor (OE). The starter motor is not included in the kit.

What does the kit include?

An aluminum gearbox adapter plate with mounting bolts, custom PMC Motorsport 215 mm twin disc flywheel with replaceable friction surface, crankshaft bolts, pressure plate bolts, and the Sachs XTend 3000 950 709 clutch assembly (pressure plate, two friction discs) with release hardware (release bearing and clutch fork). The clutch slave cylinder is not included.

Can I purchase only the adapter plate or only the flywheel?

Yes. Every component in this kit is available for purchase separately – including an adapter plate with flywheel bundle without the clutch kit.

Does the price include customs duties for shipments outside the EU?

No. Product prices and shipping quotes do not include customs duties, import tariffs, or local handling fees that may be charged in the destination country.

Can I purchase with 0% VAT?

Yes, if you are a registered B2B customer within the European Union (outside Poland) with an active EU VAT number verified in VIES, or if you are ordering for export outside the European Union.

Is the included installation manual sufficient for a complete swap?

The manual strictly covers the mechanical mating of the engine and gearbox outside the vehicle chassis. Depending on your chassis, additional custom fabrication may be necessary (engine mounts, crossmembers, firewall modification, transmission tunnel clearance, driveshaft length). Professional installation is strongly advised.


Please note that a lightweight single-mass flywheel delivers immediate, uncompromising throttle response at the expense of eliminating OEM damping elements. This creates a much more direct drivetrain connection, which may result in a noticeable increase in transmission gear chatter and drivetrain noise. This is a normal and expected characteristic in performance and motorsport applications resulting from rigid drivetrain coupling.

Symbol
S2-UZ-HGD-709
Producer code
5903707409389
Specification
Toyota engine list
Toyota / Lexus V8 1UZ 1UZ-FEMore
  • 1989–2000 Lexus LS 400/Toyota Celsior
  • 1989–2002 Toyota Crown/Toyota Crown Majesta
  • 1991–2000 Lexus SC 400/Toyota Soarer
  • 1992–2000 Lexus GS 400/Toyota Aristo
  • 1995–1997 SARD MC8/MC8-R
Toyota / Lexus V8 3UZ 3UZ-FEMore
  • Lexus LS 430 (2000-2006)
  • Lexus GS 430 (2000-2007)
  • Lexus SC 430/Toyota Soarer (2001-2010)
  • Toyota Crown Majesta (2004-2010)
  • Hongqi HQ430
Manual gearbox (Diesel)
6-speed ZF GS6-53DZ HGD BMW E60 530D M57n M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGD code HGD

  • Bell housing : 1067 401 060 / 1067401060
  • Sticker number : 1067 010 003 / 23.00-7522205 / 23 00 7522205 / 23007522205
  • BMW 5' E60 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E61 525D 530D M57n ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
  • BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - THGD / BMW OE 23 00 7526820 / 23 00 7526820
6-speed ZF GS6-53DZ JGA BMW E60 530D M57n M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - TJGA code JGA

  • Bell housing: 1067 401 060 / 1067401060
  • Sticker number: 1067 010 013 / 23.00-7 565 218 / 23 00 7565218 / 23007565218
  • BMW 5' E60 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E60 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E61 525D 530D M57n ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
  • BMW 5' E61 LCI 525D 530D M57n2 ZF GS6-53DZ - TJGA / BMW OE 23 00 7571426 / 23 00 7 571 426
6-speed ZF GS6X53DZ HGE BMW E60 530xD M57n M57n2 xDrive
6-speed ZF GS6X53DZ JGB BMW E60 530xD M57n M57n2 xDrive
6-speed ZF GS6-53DZ HGA BMW E46 330D M57nMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGA code HGA

Bell housing : 1067 401 061 / 1067301061

Sticker number: 1067 010 001 / 23.00-7522202 / 23 00 7522202 / 23007522202

  • BMW 3' E46 330D 330cD M57n ZF GS6-53DZ - THGA / BMW OE 23 00 7 501 342 / 23 00 7501342
6-speed ZF GS6X53DZ HGB BMW E46 330xD X3 M57n xDriveMore

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6X53DZ - THGB code HGB xDrive

Bell housing : 1067 401 061 / 1067301061

Sticker number: 1067 012 001 / 23.00-7522203 / 23 00 7522203 / 23007522203

  • BMW 3' E46 330xD M57n ZF GS6-53DZ - THGB / BMW OE 23 00 7 531 347 / 23 00 7531347
  • BMW X3 E83 3.0 M57n ZF GS6-53DZ - THGB / BMW OE 23 00 7 531 347 / 23 00 7531347
Clutch information
Set with Clutch
Yes
Clutch Set included
Sachs XTend 3000 950 709 / 3000.950.709-S BMW E9X V8 M3
Release bearing required
Included
Clutch fork required
Included
Clutch Slave Cylinder required
Dedicated to your gearbox
Clutch pressure plate
Self-adjusting
Yes
Clutch disc
Clutch disc
Included
Type of clutch disc
Sprung
Torsional Vibration Damper on the Disc
No
Type of friction linings
Organic
Spline
32,5x35-26N (GS6-53DZ / BZ)
Spline Count
26
Specyfikacja koło zamachowe
Flywheel Type
Sztywne / Jednomasowe / 2-tarczowe / Ø215mm / 8,46"
Diameter of Friction Plate
215mm / 8.46"
Replaceable friction surface
Yes
Starter required (not included)
Toyota UZ (OE)
Flexplate / ring gear / Drive plate required
Toyota Lexus OE 32101-50010 + one spacer OE 32116-50010 4.5mm between the engine block and the flexplate
Gearbox adapter specification
Gearbox adapter thickness
20mm / 0.78"
ADDITIONAL INFORMATION
Max torque
700Nm / 516,12 lb⋅ft
Adapter Kit Type
Daily
Set includes
Aluminium gearbox adapter
Gearbox adapter bolts
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Sachs XTend 3000 950 709
Clutch fork
Release Bearing - Dual-Height / Two-Position
Custom Clutch fork pivot pin / Ball
