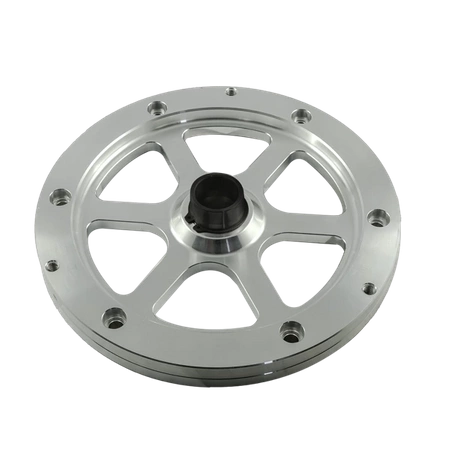

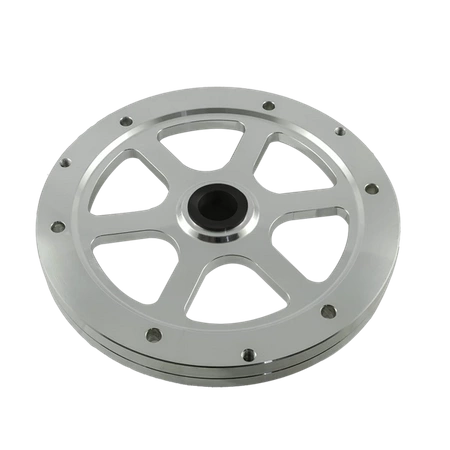

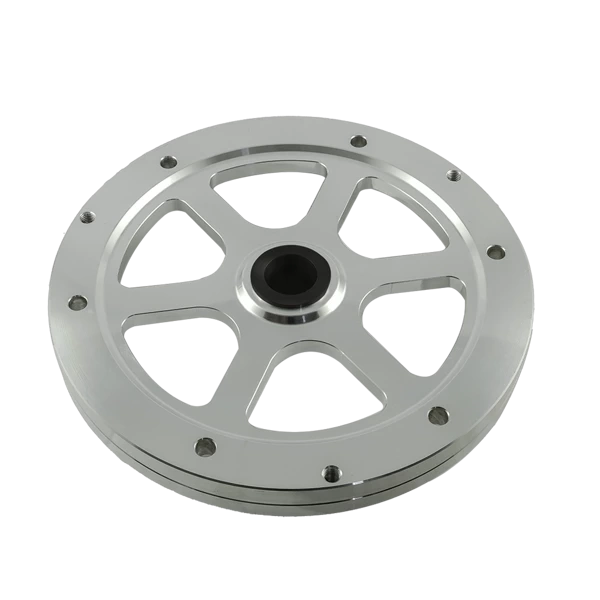

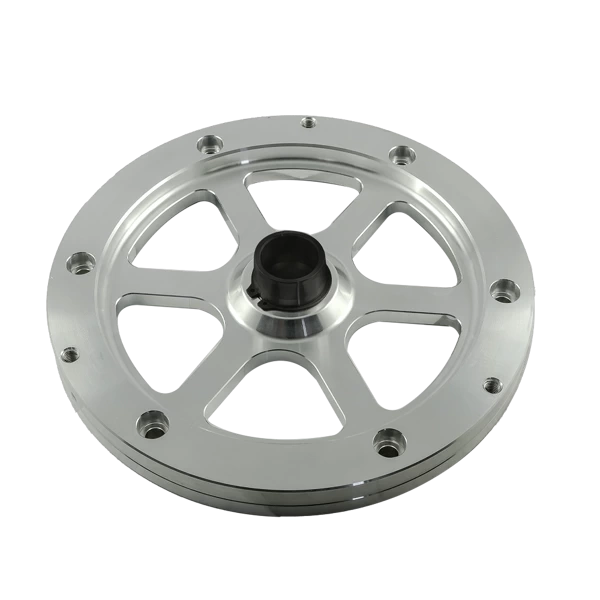

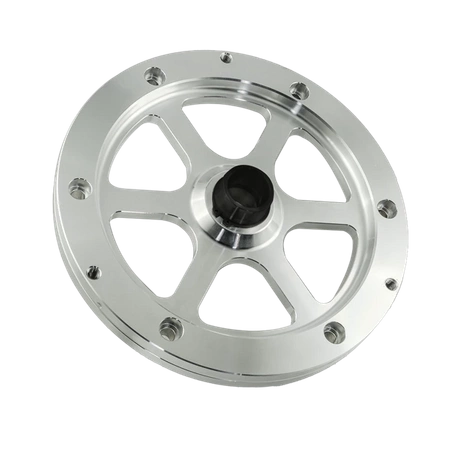

Torque converte adapter BMW ZF 8HP - Chevrolet LS
- PMC Motorsport torque converter adapter BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 - Chevrolet LS
Save by buying more
PMC Motorsport torque converter adapter BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 - Chevrolet LS
Aluminum torque converter adapter enabling to mate (SWAP / conversion) of the Chevrolet LS , with the automatic ZF (ZF Friedrichshafen) gearbox from BMW. Supported automatic transmissions ZF 8HP 8HP50 8HP51 8HP70 8HP75
Why PMC Motorsport?
Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.
Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.
Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.
Perfect Alignment. Our adapters ensure perfect alignment between the engine and gearbox.
Made in EU. Our entire production and design department is located within the European Union.
Spare part Purchase. We offer every component of our kit separately. If you need a spare part, contact us at office@pmcmotorsport.com.
Fast International Shipping. We ship our products to all countries worldwide. Shipping prices to European Union countries (excluding islands) and the United Kingdom are calculated automatically. For countries not on the list, our team will provide a shipping calculation after purchase.
0% VAT - for customers with active European VAT
Assistance in Selection and After-Sales Support. The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, we provide technical support. You can reach us via Facebook, Instagram, or email: office@pmcmotorsport.com.
|
|
Automatic BMW ZF 8HP gearbox list : |
|
Manual
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
GM 6.2 Liter V8 Small Block LT1
| Displacement: | 6.2L / 376 cu. in. |
| Aspiration: | Natural |
| Introduced: | 2014 model year |
| Discontinued: | - |
| Predecessor: | LS3 / Gen 4 Small Block |
| Successor: | LT2 |
| Assembly: | Tonawanda, New York |
Specifications
| Type: | 6.2L Gen V V8 Small Block |
| Displacement: | 6.2L (6162cc / 376 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 11.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Tonawanda, New York, USA |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92mm |
| Fuel system: | Direct Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6600 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Nodular Iron |
| Main bearing caps: | Cast Nodular |
| Crankshaft: | Forged Steel |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Variable Valve Timing (VVT) | |
| Electronic throttle control | |
| Extended life accessory drive belt | |
| Extended life coolant | |
| Extended life spark plugs | |
| Oil Life Monitor System | |
| Dexos 5W30 | |
| Dual-pressure control and variable displacement oil pump | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2014 Chevrolet C7 Corvette Stingray Base Exhaust
- 2014 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Base Exhaust
- 2015-2019 Chevrolet C7 Corvette Stingray Performance Exhaust
- 2017-2019 Chevrolet C7 Corvette Grand Sport
- 2016-present Chevrolet Camaro SS
- 2020-present Chevrolet Camaro LT1
GM 6.2 Liter Supercharged Small Block V8 LT4
| Displacement: | 6.2L / 376 cu. in. |
| Aspiration: | Forced Induction (Supercharger) |
| Introduced: | 2014 model year |
| Discontinued: | - |
| Predecessor: | LS9 / Gen 4 Small Block |
| Successor: | - |
| Assembly: | Tonawanda, New York (Z06, CTS-V, ZL1); Performance Build Center, Bowling Green Kentucky (CT5-V Blackwing) |
Specifications
| Displacement: | 6162cc (376 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 10.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly sites | |
| For CTS-V, Camaro ZL1 | Tonawanda, New York |
| For Corvette Z06: | Bowling Green, Kentucky |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92mm |
| Fuel system: | DI |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6600 RPM |
| Drive Belt Rib Count: | 8 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Cast Aluminum Supercharger |
| Exhaust manifold: | Cast Stainless (Corvette) or Fabricated Stainless (CTS-V) |
| Main bearing caps: | Cast Nodular |
| Crankshaft: | Forged steel |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Additional Features | |
| 1.74 L/rev Supercharger | |
| Integrated dual coolant-to-air-intercoolers | |
| Active Fuel Management | |
| Variable Valve Timing (VVT) | |
| Electronic throttle control | |
| Extended life coolant | |
| Extended life spark plugs | |
| Oil Life Monitor System | |
| Dexos 5W30 | |
| Dual-pressure control and variable displacement oil pump | |
| Dry sump (Corvette only) | |
| 58x crank timing | |
Vehicle Applications
- 2015 – 2019 Chevrolet C7 Corvette Z06 GM
- 2015 – 2019 Chevrolet C7 Corvette Z06
- 2016 – 2019 Cadillac CTS-V Sedan
- 2017 – present Chevrolet Camaro ZL1
- 2017 – present Chevrolet Camaro ZL1
- 2022 – present Cadillac CT5-V Blackwing
- 2022 – present Cadillac CT5-V Blackwing
- 2023 – present Cadillac Escalade-V
