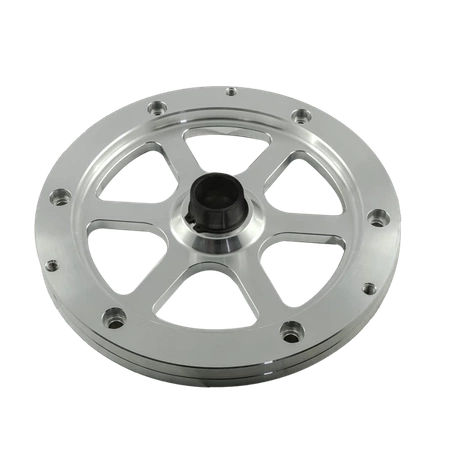

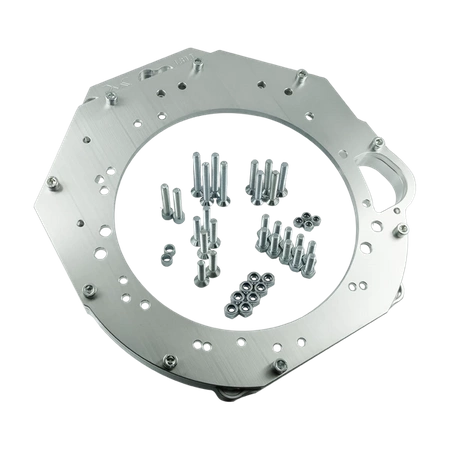

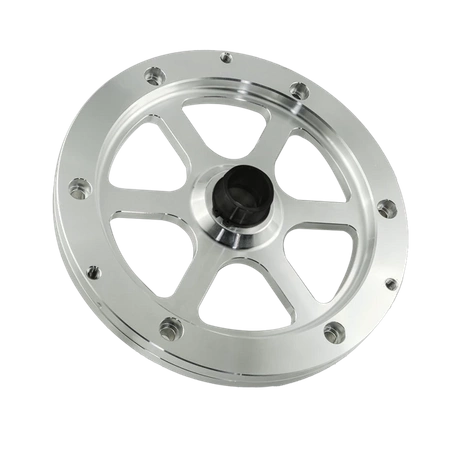

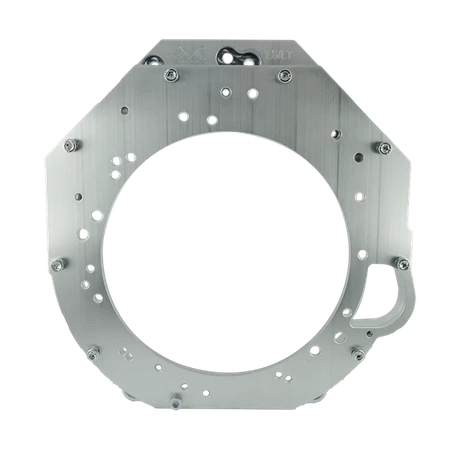

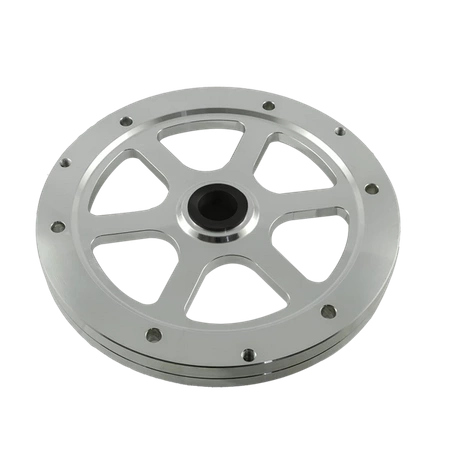

Adapter Kit GM Chevrolet LS - BMW ZF 8HP 8HP75 8HP70 8HP50 8HP51
- Aluminum adapter kit enabling the connection (swap / conversion) of GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS Vortec engines with an automatic ZF 8HP gearbox (ZF Friedrichshafen) from BMW.
In a set
PMC Motorsport adapter / conversion kit for GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 Vortec - BMW ZF 8HP 8HP50 8HP51 8HP70 8HP75 8HP76
Adapter enabling the connection (swap / conversion) of a GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 Vortec engine with a BMW-derived 8-speed ZF 8HP automatic transmission (ZF Friedrichshafen). The kit includes: an aluminium gearbox adapter and a torque-converter adapter.
8HP Shifter and TCU
Our offer includes the 8HP shifter and TCU for transmission management, complete with a wiring harness.
Why choose PMC Motorsport parts and adapters?
Professionalism
From design to implementation, our parts go through an extensive process. Every component for which we manufacture parts has been measured with a measuring arm and a 3D scanner. Prototypes undergo numerous tests to eliminate any potential issues in use. We use only certified materials from proven suppliers, supported by a modern CNC machine park and an experienced team.
Perfect alignment
Our adapters guarantee a perfect fit between the engine and the gearbox.
Made in Poland
Our entire production facility and design department are located in Poland.
Pre-purchase guidance and after-sales support
The PMC Motorsport team will help you select the right kit, and if you have any doubts during installation, we will provide technical support. You can contact us via Facebook, Instagram or email: office@pmcmotorsport.com
Purchase of individual components
Each component of our kit can be purchased separately. If you need a spare part, write to us at: office@pmcmotorsport.com
Fast international shipping
We ship our products to almost every country in the world. For EU countries (excluding islands) and the United Kingdom, shipping costs are calculated automatically. For countries not on the list, after placing the order our team will prepare a shipping quotation and add it to the order.
0% VAT
0% VAT for customers with an active European VAT number (option for B2B customers outside Poland).
Experience
Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used both in daily drivers and in professional projects intended for competitive motorsport.
Quality confirmed by certificate
From the very beginning we have focused on the quality of the parts we manufacture. After each production stage, the component is inspected. Every sub-assembly we produce is engraved with a serial number. Our quality is confirmed by the PN-EN ISO 9001:2015 certificate.
Why choose BMW gearboxes?
Availability and price. Millions of vehicles produced and their global presence ensure the availability of spare parts. Both individual parts and complete gearboxes are readily available at authorised service centres and on the aftermarket.
Strength and reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can handle very high torque loads (some models 1000 Nm+), while providing excellent reliability. They are ideal for swaps in high-power projects intended for everyday use.
Speed and convenience. Using new-generation ZF 8HP or Getrag DCT DKG automatic gearboxes delivers an ultra-fast shift time (0.2 seconds).
| Compatible engines: |
GM Small Block Chevrolet LS GM 5.7 Liter V8 Small Block Chevrolet LS1 GM 6.0 Liter V8 Small Block Chevrolet LS2 GM 6.2 Liter V8 Small Block Chevrolet LS3 GM 5.7 Liter V8 Small Block Chevrolet LS6 GM 7.0 Liter V8 Small Block Chevrolet LS7 GM 7.0 Liter V8 Small Block Chevrolet L99 GM Chevrolet Vortec Chevrolet Vortec 4800 LR4 Chevrolet Vortec 5300 LM7 L59 LM4 L33 Chevrolet Vortec 6000 (VortecMAX) L76 L77 L96 LFA LQ4 LQ9 LZ1 LY6 Chevrolet Vortec 6200 L92 L94 L9H |
| Compatible BMW automatic gearboxes: |
ZF 8HP 8HP50 8HP51 ZF 8HP50 GA8HP50Z GA8HP50X BMW B37 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B38 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B47 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B48 F-series ZF 8HP50 GA8HP50Z GA8HP50X BMW B58 F-series ZF 8HP51 GA8HP51Z GA8HP51X BMW B48 F-series ZF 8HP51 GA8HP51Z GA8HP51X BMW B58 G-series ZF 8HP 8HP70 8HP75 8HP76 RWD / AWD xDrive ZF 8HP70 GA8HP70Z GA8HP70X BMW N57 F-series ZF 8HP75 GA8HP75Z GA8HP75X BMW N57 F-series (AWD xDrive) ZF 8HP75 GA8HP75Z GA8HP75X BMW B57 G-series ZF 8HP76 GA8HP76Z GA8HP76X BMW B57 G-series ZF 8HP76 GA8HP76Z GA8HP76X BMW B57 G-series (AWD xDrive) ZF 8HP76 GA8HP76Z GA8HP76X BMW S55 G-series |
Installation guide
!!! PMC Motorsport parts are intended exclusively for motorsport use on race tracks. Installation must be carried out by professionals using the proper tools in suitably equipped workshops. !!!
The installation guide provides a basic assembly diagram of the engine and gearbox outside the vehicle.
First, mount the gearbox adapter to the engine.
GM 5.7 Liter V8 Small Block Chevrolet LS1
Displacement: 5.7L / 346 cu. in.
Aspiration: Natural
Introduced: 1997 model year
Discontinued: 2005
GM Chevrolet
Chevrolet Corvette 1997-2000
Chevrolet Corvette 2001-2004
Chevrolet Camaro Z28 1998-2000
Chevrolet Camaro SS 1998-2000
Chevrolet Camaro Z28 2001-2002
Chevrolet Camaro SS 2001-2002
Pontiac
Pontiac Firebird Formula 1998-2000
Pontiac Firebird Trans Am 1998-2000
Pontiac Firebird Formula 2001-2002
Pontiac Firebird Trans Am 2001-2002
Holden
Holden VT.II Commodore, VT.II Calais 1999–2000
Holden Statesman, Caprice 1999–2003
Holden VX Commodore, VX Berlina, VX Calais, VU Ute 2000–2002
Holden Monaro 2001–2002
Holden Commodore SV8 and SS, Ute S and SS, Monaro 2002-2003
Holden Berlina, Ute S, One Tonner S 2003-2004
Holden Commodore SV8 and SS, Calais, Ute SS, Caprice 2003-2004
Holden Monaro 2003-2004
Holden Statesman 2003-2004
Holden Adventra 2003-2005
Holden VY.II Crewman 2003-2005
Holden Berlina, Calais, One Tonner, Crewman 2004-2005
Holden Statesman 2004-2005
Holden Commodore SV8 and SS, Ute SS 2004-2005
Holden Caprice 2004-2005
Holden Monaro 2004-2005
Holden Adventra 2005-2006
Holden Special Vehicles HSV VT.II ClubSport, HSV VT.II Senator, HSV VT SV99, HSV WH Grange 1999–2000
Holden Special Vehicles HSV VX ClubSport, HSV VX Senator, HSV WH Grange 2000-2002
Holden Special Vehicles HSV V2.I GTO Coupe 2001-2003
Holden Special Vehicles HSV Y-Series I: ClubSport, Senator, Maloo 2002-2003
Holden Special Vehicles HSV V2.II GTO Coupe
Holden Special Vehicles HSV V2.III GTO Coupe 2003-2004
Holden Special Vehicles HSV Y-Series II: ClubSport, Senator, Maloo, HSV WK Grange 2003-2004
Holden Special Vehicles HSV Y-Series Avalanche 2003-2005
Holden Special Vehicles HSV V2 Coupe 4 2004
Holden Special Vehicles HSV Z-Series Coupe 4 2004-2005
Holden Special Vehicles HSV Y-Series Avalanche XUV 2004-2005
Holden Special Vehicles – Callaway HSV VT.II GTS 2000
Holden SpecialVehicles – Callaway HSV VX GTS 2000–2001
Holden Special Vehicles – Callaway HSV VX Senator 300 2000-2001
Holden Special Vehicles – Callaway VX SV300 2001–2002
Holden Special Vehicles – Callaway HSV V2 GTS Coupe 2001–2004
Holden Special Vehicles – Callaway HSV Y-Series GTS 2002–2004
GM 6.0 Liter V8 Small Block LS2 Engine
Displacement: 6.0L / 364 cu. in.
Aspiration: Natural
Introduced: 2005 model year
Discontinued: 2009
Predecessor: LS1 / Gen 3 Small Block
Successor: LS3
Assembly: Saint Catherines, Ontario, Canada
Specifications
| Type: | 6.0L Gen IV V8 Small Block |
| Displacement: | 6.0L (5965cc / 364 ci) |
| Engine orientation: | Longitudinal |
| Compression ratio: | 10.9:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Saint Catherines, Ontario, Canada |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 101.6 x 92mm |
| Fuel system: | Sequential Port Fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Cast Iron |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
| Additional Features | |
| Active Fuel Management | |
| Electronic throttle control | |
| Oil Life Monitor System | |
| 58x crank timing | |
| Emissions Controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle Applications
- 2005-2007 Chevrolet C6 Corvette (Coupe / Convertible)
- 2005-2006 Chevrolet SSR
- 2005-2006 Pontiac GTO
- 2006-2009 Chevrolet TrailBlazer SS
- 2006-2007 Cadillac CTS-V
- 2008-2009 Saab 9-7X Aero
GM 5.7 Liter V8 Small Block LS6 Engine
| Displacement: | 5.7L / 346 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2001 model year |
| Discontinued: | 2005 |
| Predecessor: | LS1 / Gen 3 Small Block |
| Successor: | LS2 |
| Assembly: | Saint Catherines, Ontario, Canada |
Specifications
| Type: | 5.7L Gen III V8 Small Block |
| Displacement: | 5.7L (5670cc / 346 ci) |
| Engine orientation: | Longitudinal |
| Engine Mass: 458 pounds / 207.745 kilograms | |
| Compression ratio: | 10.5:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | St. Catherine's, Ontario, Canado |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 99 x 92mm |
| Fuel system: | Sequential Port-fuel Injection |
| Fuel type: | Premium Recommended |
| Maximum Engine Speed: | 6500 RPM |
| Emissions controls | |
| Catalytic converter | |
| Positive crankcase ventilation | |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Cast Iron |
| Main bearing caps: | Steel |
| Crankshaft: | Cast Iron |
| Camshaft: | Billet Steel |
| Connecting rods: | Forged Powder Metal |
Vehicle Applications
- 2001 Chevrolet Corvette C5 Z06
- 2002-2004 Chevrolet Corvette C5 Z06
- 2004-2005 Cadillac CTS-V
GM 7.0 Liter V8 LS7 Engine
| Displacement: | 7.0L / 427 cu. in. |
|---|---|
| Aspiration: | Natural |
| Introduced: | 2006 model year |
| Discontinued: | 2015 |
| Predecessor: | LS2 / Gen 3 Small Block |
| Successor: | – |
| Assembly: | Wixom, Michigan |
Specifications
| Type: | 7.0L Gen IV V8 Small Block |
| Displacement: | 7008 cc (427.6 ci) |
| Engine Orientation: | Longitudinal |
| Compression ratio: | 11.0:1 |
| Valve configuration: | Overhead valves |
| Valves per cylinder: | 2 |
| Assembly site: | Performace Build Center in Wixom, Michigan |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 104.8 X 101.6 |
| Bore Center (mm): | 111.76 |
| Bore Area (cm2) (total engine bore area): | 689.75 |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium Fuel required |
| Engine Mass (kg/lbs): | 206 / 454 |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | Cast aluminum |
| Intake manifold: | Composite |
| Exhaust manifold: | Stainless Steel |
| Main bearing caps: | Forged steel |
| Crankshaft: | Forged 4140 steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged Titanium |
| Additional features | |
| Extended life spark plugs | |
| Titanium Intake Valves | |
| Extended life coolant | |
| Oil level sensor | |
| Oil Life System | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
Vehicle
- 2014 – 2015 Chevrolet Camaro Z/28
- 2011 – 2013 Chevrolet Corvette C6 Z06
- 2013 Chevrolet Corvette C6 427 Convertible
Chevrolet Vortec 4800
Chevrolet Vortec LR4
Chevrolet Vortec 5300
Chevrolet Vortec LM7
Chevrolet Vortec L59
Chevrolet Vortec LM4
Chevrolet Vortec L33
Chevrolet Vortec 6200
Chevrolet Vortec L92
Chevrolet Vortec L94
Chevrolet Vortec L9H
GM 6.2 Liter V8 Supercharged LSA Engine
| Displacement: | 6.2L / 376 cu. in. |
|---|---|
| Aspiration: | Supercharged |
| Introduced: | 2009 model year |
| Discontinued: | 2015 |
| Predecessor: | LS3 / Gen IV Small Block |
| Successor: | LT4 / Gen V Small Block |
| Assembly: | St. Catharines, Ontario, Canada |
Specifications
| Type: | 6.2L Gen IV V8 Small Block |
| Displacement: | 6162 cc (376 ci) |
| Engine Orientation | Longitudinal |
| Compression ratio: | 9.1:1 |
| Valve configuration: | Overhead valves (2 valves per cylinder) |
| Assembly site: | Silao, Mexico |
| Valve lifters: | Hydraulic roller |
| Firing order: | 1 – 8 – 7 – 2 – 6 – 5 – 4 – 3 |
| Bore x stroke: | 103.25 x 92 mm |
| Fuel system: | Sequential fuel injection |
| Fuel Type: | Premium required |
| Maximum Engine Speed: | 6200 RPM |
| Materials | |
| Block: | Cast aluminum |
| Cylinder head: | A356-T6 rotocast cast aluminum |
| Intake manifold: | Cast aluminum |
| Exhaust manifold CTS: | High silicon / high moly cast iron |
| Exhaust manifold Camaro: | Cast stainless steel |
| Main bearing caps: | Nodular Iron |
| Crankshaft: | Forged steel |
| Camshaft: | Hollow steel |
| Connecting rods: | Forged powder metal |
| Additional features | |
| 1.9 L/rev Supercharger | |
| Integrated single coolant to air intercooler | |
| Piston oil spray cooling | |
| Direct mount ignition coils | |
| Emissions controls | |
| Catalytic converter | |
| Three-way catalyst | |
| Positive crankcase ventilation | |
| Valves per cylinder | 2 |
| Bore Center (mm) | 111.76 |
Vehicle Applications
- 2012-2015 Chevrolet Camaro ZL1
- 2008-2013 Cadillac CTS-V
Chevrolet Vortec 6000
Chevrolet Vortec L76
Chevrolet Vortec L77
Chevrolet Vortec L96
Chevrolet Vortec LFA
Chevrolet Vortec LQ4
Chevrolet Vortec LQ9
Chevrolet Vortec LZ1
Chevrolet Vortec LY6
