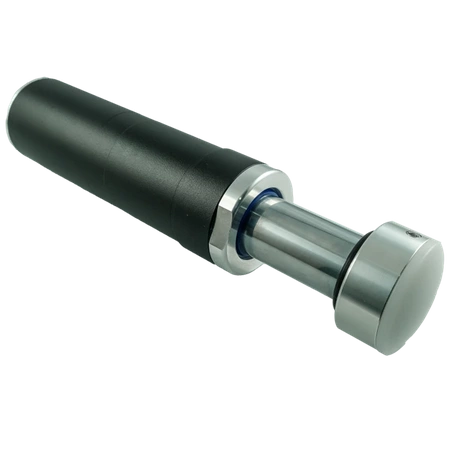

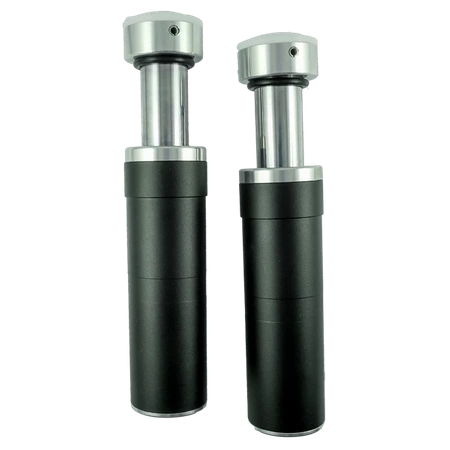

PMC Motorsport Bump Stop Kit – 2" Hydraulic Suspension Bump Stops + Adjustable Mounting Brackets

PMC Motorsport hydraulic suspension bump stops are professional-grade components engineered for the rigorous demands of modern off-road use. Their main role is to absorb energy during full compression of the suspension, protecting the chassis and driveline from damage. The kit includes a 2" (50.8 mm) hydraulic bump stop and adjustable travel limit brackets, allowing precise tuning based on the vehicle's sprung mass and terrain type.

Using hydraulic suspension bump stops significantly reduces harsh bottom-outs of the shock absorbers, resulting in greater durability of the suspension, improved handling and enhanced comfort in extreme terrain. Properly selected bump stops stabilize the vehicle on landings, protect the chassis, and assist spring and damper function.

The PMC Motorsport kit is the ideal solution for UTVs, buggies, baja rally vehicles, expedition 4x4s, and military or tactical off-road applications. Its compact design, adjustability, and robust construction make it a premium-level product.

Installation Instructions:

	1. Loosen the M8 clamp screws. 2. Remove the 2” bump stop from the clamp and adjustment sleeve.
	3. Compress the locking mechanism inside the adjustment sleeve.
	4. Change the position of the locking tab inside the adjustment sleeve.
	5. To increase adjustment range, rotate the adjustment sleeve.
	6. Set the locking tab in the desired position. 7. Each step adjusts position by 5 mm. Adjustment range is 25 mm. 8. Slide the adjustment sleeve onto the bump stop. 9. Insert the bump stop back into the clamp. 10. Tighten the clamp screws to 23 Nm.

The PMC Motorsport hydraulic bump stop kit provides a precise and reliable tuning solution for off-road builders and enthusiasts. Fine adjustment lets you tailor suspension behavior to axle loads and driving style.
