Adapter Kit Mercedes-Benz M112 M113 M113K - Jaguar Land Rover ZF 8HP
- PMC Motorsport Aluminum Gearbox Adapter Mercedes-Benz M112 M113 M113K - ZF 8HP Jaguar / Land Rover 4-bolt mounting
In a set
PMC Motorsport adapter / conversion kit Mercedes-Benz M112 M113 M113K – ZF 8HP Jaguar / Land Rover (4 converter bolts)
Adapter enabling the connection (swap / conversion) of Mercedes-Benz M112 (V6), M113 (V8), and M113K (V8 Kompressor) engines with the modern 8-speed automatic transmission ZF 8HP in Jaguar / Land Rover version (ZF Friedrichshafen), featuring a 4-bolt torque converter pattern. The kit includes an aluminum gearbox adapter plate with mounting bolts and a torque converter adapter.
The adapter fits Mercedes-Benz M112, M113, and M113K engines with the automatic version flywheel (flexplate / starter ring gear) OE A 273 030 03 12.
Planning an engine swap with a Mercedes-Benz M112 / M113 / M113K and looking to utilize a readily available ZF 8HP transmission from a Jaguar or Land Rover? The ZF 8HP provides 8 gears, ultra-fast shift times (approx. 0.2 s), and high torque capacity – an excellent combination with Mercedes engines, both for daily driving and drift or motorsport projects.
In our offer, you will also find an 8HP shifter / gear lever and a TCU controller with wiring harness to control the ZF 8HP transmission.

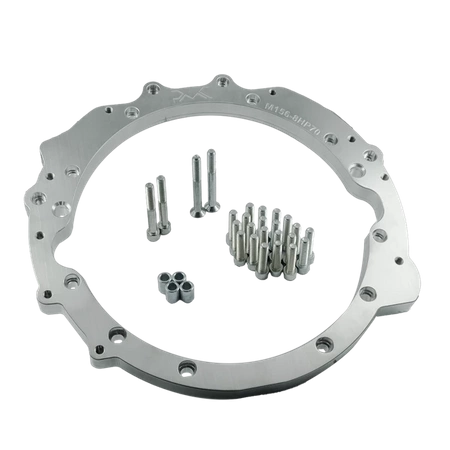

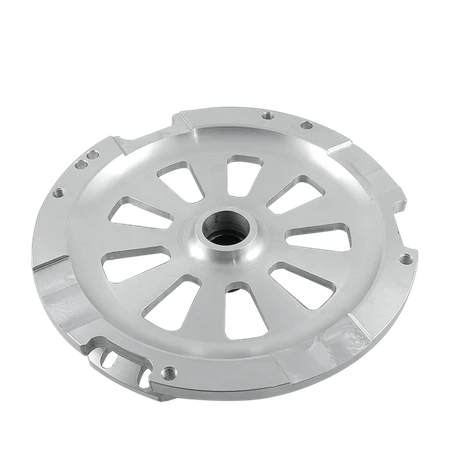

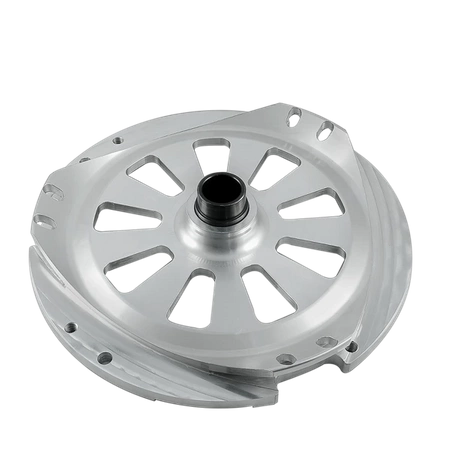

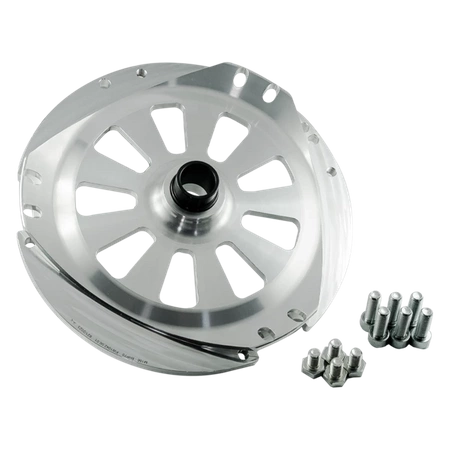

The aluminum gearbox adapter plate has been designed to make installing the ZF 8HP transmission as straightforward as possible. The torque converter adapter (included) connects the Mercedes-Benz automatic version flexplate OE A 273 030 03 12 to the 4-bolt torque converter of the Jaguar / Land Rover ZF 8HP gearbox. Gearbox adapter plate thickness: 25 mm (0.98").
PMC Motorsport gearbox adapters are synonymous with precision and premium quality. A design process based on 3D scanning and quality control using a measuring arm ensure a perfect fit. Production on state-of-the-art CNC machines guarantees ideal concentricity between the engine and transmission, which is crucial for the durability of the drivetrain.
All of our manufacturing and R&D design department are located in Poland. Over 90% of components are manufactured in-house by our company.
Selection assistance and after-sales support – PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit and provide technical support in case of any doubts during installation. You can contact us via the contact form.
Purchasing individual components
Every component of the kit can be purchased separately.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used both in daily drivers and in professional motorsport projects.
From the beginning, we focus on the quality of manufactured parts. The component is inspected after every production stage. Each part produced by us is engraved with a production serial number.
Quality confirmed by PN-EN ISO 9001:2015 certificate.
We ship our products practically to all countries worldwide. For European Union countries (excluding islands) and the United Kingdom, shipping costs are calculated automatically. For countries outside the list, after placing an order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the total order cost.
NOTE: The provided shipping quote along with the product price does not include customs duties / import taxes, which may apply depending on the destination country.
0% VAT
0% VAT for customers with an active EU VAT number (option for B2B customers outside Poland) and in the case of export outside EU borders.
Upon positive verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: |
Mercedes-Benz engines with automatic version flexplate OE A 273 030 03 12 Mercedes-Benz M112 V6 Mercedes-Benz M113 V8 4.3 E43 / 5.0 E50 Mercedes-Benz M113 AMG 5.4 E55 Mercedes-Benz M113K AMG 5.4 E55 ML Kompressor |
| Compatible automatic transmissions: |
ZF 8HP Jaguar / Land Rover 8-speed Version with 4-bolt torque converter |
Additional information
PMC Motorsport parts are intended for motorsport and racetrack use.
Installation should be performed by professionals experienced in engine swaps and vehicle modifications – in workshops and using properly suited tools.
The adapter installation manual covers only the basic knowledge required to physically mate the engine and transmission outside the vehicle body.
Depending on the specific car, additional modifications may be required, such as adapting engine mounts, bushings, firewall, transmission tunnel, driveshaft length, etc.
We manufacture our adapters from fully recyclable materials.
Installation manual
The gearbox adapter plate is installed first onto the engine. To mate the Mercedes-Benz M112 / M113 / M113K engine with the ZF 8HP Jaguar / Land Rover transmission, you must use the flexplate (automatic transmission flywheel) from the automatic version Mercedes-Benz OE A 273 030 03 12 (not included), the PMC Motorsport torque converter adapter (included), and the 4-bolt torque converter from your ZF 8HP transmission.
To mount the adapter, use the original Mercedes-Benz (OE) starter motor from the respective engine (not included).
Mount the torque converter adapter to the flexplate (automatic flywheel) from the automatic version Mercedes-Benz, and then bolt the 4-bolt torque converter from the ZF 8HP Jaguar / Land Rover gearbox to it.
Frequently Asked Questions
Which engines does this adapter fit?
It fits Mercedes-Benz engines M112 (V6), M113 (V8 4.3 / 5.0 as well as AMG 5.4), and M113K (AMG 5.4 Kompressor) with the automatic version flywheel (flexplate) OE A 273 030 03 12.
Which transmissions does the adapter fit?
To 8-speed automatic ZF 8HP transmissions from Jaguar / Land Rover with a 4-bolt torque converter. For ZF 8HP transmissions from BMW, separate adapters are available in our offer.
How to connect the ZF 8HP Jaguar / Land Rover torque converter to the Mercedes-Benz engine?
Using the PMC Motorsport torque converter adapter included in the kit. The torque converter adapter bolts to the automatic version flexplate Mercedes-Benz OE A 273 030 03 12, and is then connected to the 4-bolt torque converter of your ZF 8HP transmission.
What additional parts do I need to purchase for installation?
The automatic version flexplate (starter ring gear / flywheel) Mercedes-Benz OE A 273 030 03 12 and the original Mercedes-Benz starter motor from the respective engine. To control the transmission, you will also need a TCU controller with wiring harness and an 8HP shifter. These parts are not included in the kit.
Which starter motor should be used?
The original Mercedes-Benz (OE) starter motor from the respective engine. The starter motor is not included in the kit.
What is included in the kit?
Aluminum gearbox adapter plate (25 mm) with mounting bolts and torque converter adapter.
Does the price include customs duty for shipping outside the European Union?
No. The product price and shipping quote do not include customs duties or import taxes that may occur in the destination country.
Can I buy with 0% VAT?
Yes, if you are a B2B customer outside Poland with an active EU VAT ID (verified in the VIES system) or for orders exported outside the EU.
Is the included manual sufficient for installation?
The manual describes mating the engine and gearbox outside the vehicle body. Depending on the car, additional modifications may be required: mounts, bushings, firewall, transmission tunnel, driveshaft length. We recommend installation by professionals.
Mercedes-Benz M113
-
Mercedes-Benz M113 4.3 E43
- 1997–2000 Mercedes-Benz C 43 AMG (W202)
- 1997–2002 Mercedes-Benz E 430 (W210)
- 1998–2002 Mercedes-Benz CLK 430 (C208)
- 1999–2001 Mercedes-Benz ML 430 (W163)
- 1999–2006 Mercedes-Benz S 430 (W220)
-
Mercedes-Benz M113 5.0 E50
- 1999–2001 Mercedes-Benz SL 500 (R129)
- 1998–2008 Mercedes-Benz G 500 (W463)
- 1999–2006 Mercedes-Benz S 500 (W220)
- 1998–2006 Mercedes-Benz CL 500 (C215)
- 2001–2008 Mercedes-Benz ML 500 (W163)
- 2001–2006 Mercedes-Benz SL 500 (R230)
- 2002–2006 Mercedes-Benz CLK 500 (C209)
- 2002–2006 Mercedes-Benz E 500 (W211)
- 2004–2006 Mercedes-Benz CLS 500 (C219)
- 2005-2007 Mercedes-Benz ML 500 (W164)
- 2006–2007 Mercedes-Benz R 500 (W251)
- 2008–2017 SsangYong Chairman W
Mercedes-Benz M113 AMG
-
Mercedes-Benz M113 AMG 5.4 E55
- 1997 Mercedes-Benz CLK 55 AMG F1 safety car (C208)
- 1997–2002 Mercedes-Benz E 55 AMG (W210)
- 1998–2000 Mercedes-Benz C 55 AMG (W202)
- 1999–2001 Mercedes-Benz SL 55 AMG (R129)
- 1999–2003 Mercedes-Benz G 55 AMG (W463)
- 1999–2002 Mercedes-Benz S 55 AMG (W220&V220)
- 1999–2002 Mercedes-Benz CLK 55 AMG (C208)
- 1999–2002 Mercedes-Benz CL 55 AMG (C215)
- 2000–2003 Mercedes-Benz ML 55 AMG (W163)
- 2002–2006 Mercedes-Benz CLK 55 AMG (C209)
- 2004–2010 Mercedes-Benz SLK 55 AMG (R171)
- 2003–2007 Mercedes-Benz C 55 AMG (W203)
- 2006–2008 Mercedes-Benz SLK 55 AMG Black Series (R171)
-
Mercedes-Benz M113 AMG 5.4 E55ML Kompressor
- 2002–2006 Mercedes-Benz S 55 AMG (W220)
- 2002–2008 Mercedes-Benz SL 55 AMG (R230)Ź
- 2003–2006 Mercedes-Benz CL 55 AMG (C215)
- 2003–2006 Mercedes-Benz E 55 AMG (W211)
- 2004–2006 Mercedes-Benz CLK DTM AMG (C209)
- 2004–2006 Mercedes-Benz CLS 55 AMG (C219)
- 2004–2011 Mercedes-Benz G 55 AMG (W463)
- 2005 Fisker Tramonto V8
- 2005 Laraki Fulgura V8
