Basic Wiring Harness for TCU
- This is a basic/universal option to get most cars running with the TurboLamik TCU 2.0 and their 8HP conversion.
Save by buying more

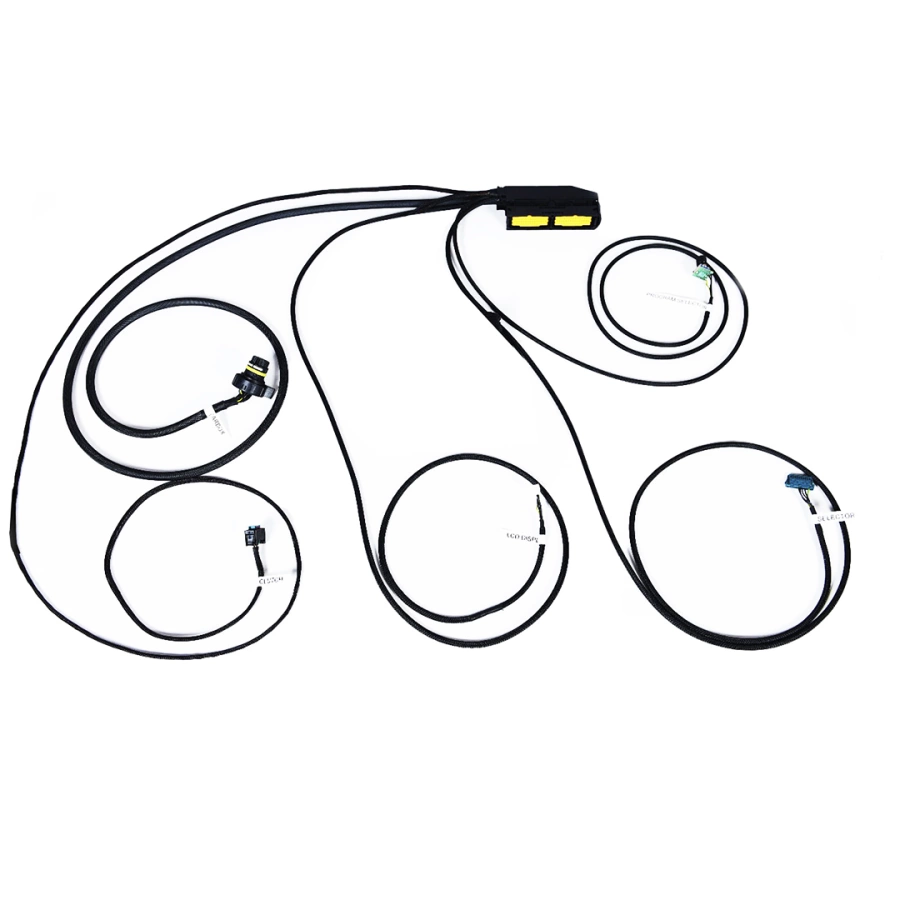

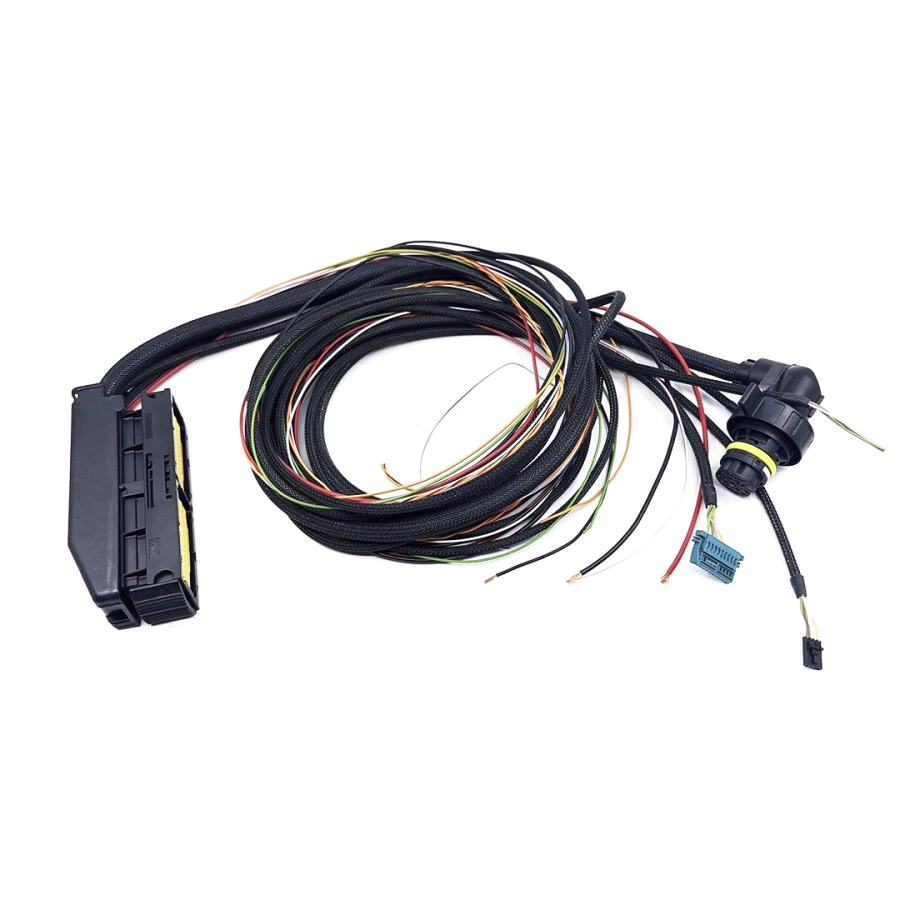

TurboLamik - Basic Wiring Harness for TCU
This is a basic/universal option to get most cars running with the TurboLamik TCU 2.0 and their 8HP conversion.
The length of each wire is listed in the table - before purchasing, ensure that they will fit your car. The harness is not fully terminated - you will need to terminate the ends yourself.
The wires are designed to be longer - we assume it is easier to shorten the wire than to extend it.
| Wire Function | Wire Length |
|---|---|
| TCU to Transmission | 2000 mm |
| TCU to Shift Selector | 1500 mm |
| Shift Selector Type | BMW 10-pin |
| TCU to Display | 1500 mm |
| TCU to Switch/Programmer/Virtual Clutch | 1500 mm |
| TCU to Ground | 700 mm |
| TCU to Power Supply | 700 mm |
| TCU to Ignition | 700 mm |
| TCU to Engine CAN | 1200 mm |
| TCU to Foot Brake Signal | 1500 mm |
| TCU to Shift Paddles (Ground Signal) | 1500 mm |
