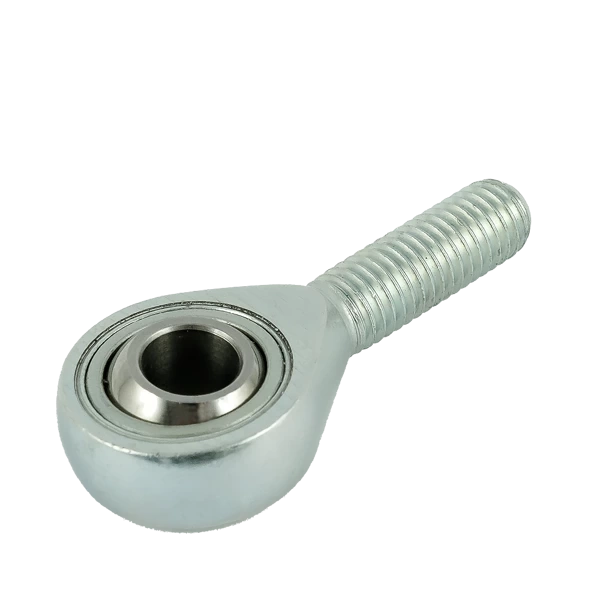

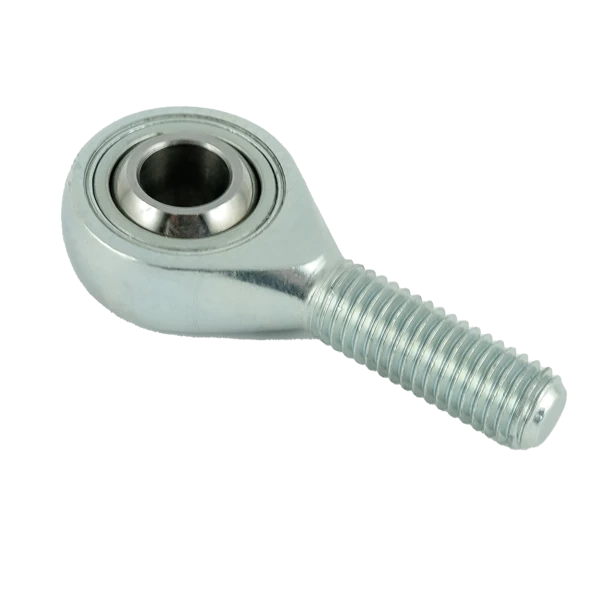

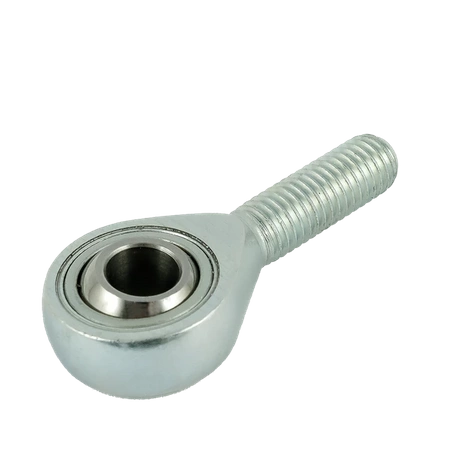

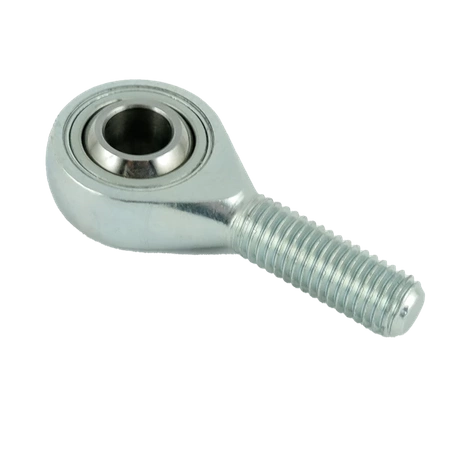

Tie rod end / tie rod end - uniball GA 12 FLURO - M12 right (male)
- Tie rod end / tie rod end - uniball GA 12 FLURO - M12 right (male)
Tie rod end / tie rod end - uniball GA 12 FLURO - M12 right (male)
GA Series - Rod end with external thread made of free-machining steel or heat-treatable steel, zinc-plated, lubricated through a concave ball-shaped grease fitting.
Particularly suitable for axial loads. Dimensional series K - standard.
Friction Pair - steel/bronze
Housing:
up to size 12: free-machining steel: [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13], turned
from size 14: heat-treatable steel: [DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023], forged
Bearing bush: special brass CuZn40Al1
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
32 / 1.26"
W - width of the inner ring [mm /inch]
16 / 0.63"
T - width of the outer ring [mm /inch]
12 / 0.47"
L- Lenght [mm /inch]
54 / 2.13"
GM - Thread length [mm /inch]
32 / 1.26"
Deflection angle
26°
Maximum static load [kN / lbs]
25.5 / 5732.63
Maximum dynamic load [kN / lbs]
10.0 / 2248.09
Weight
87g / 0.19180lbs
