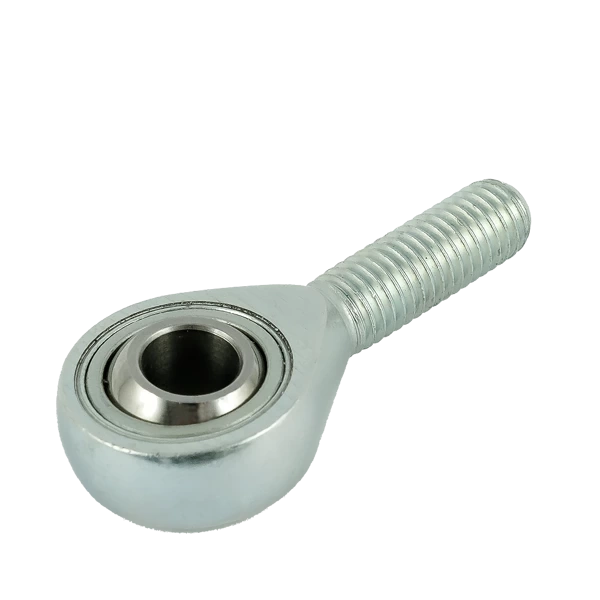

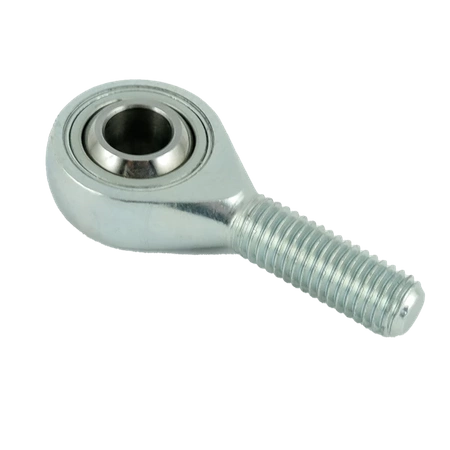

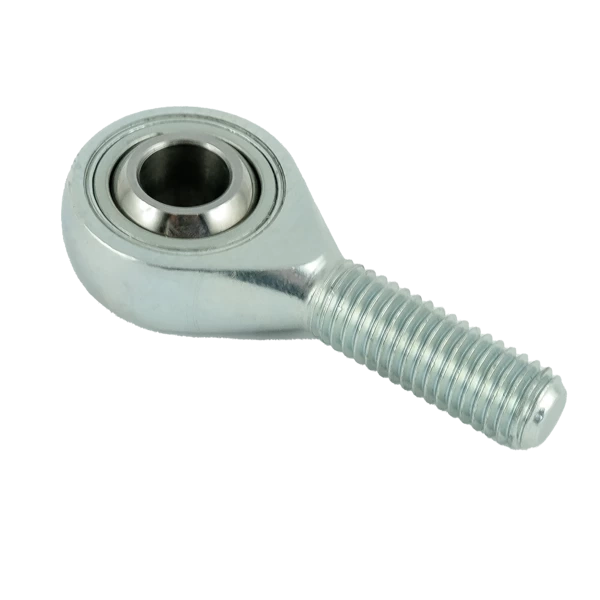

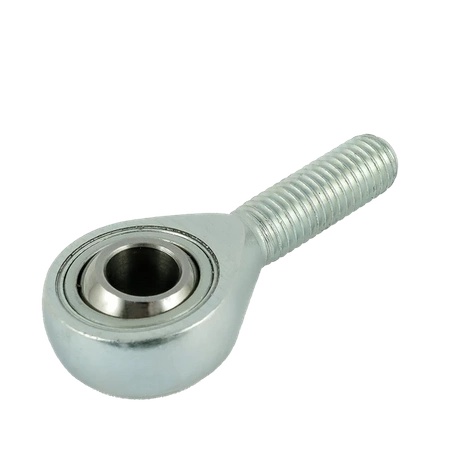

Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)
- Tie rod end / tie rod end - uniball GAXS 20 FLURO - M20x1.5 right (male)
GAXS 20 FLURO rod end - M20x1.5
GAXS Series - Rod end with external thread made of heat-treated steel, galvanized, lubricated through a concave ball grease nipple. For use under high tensile/compressive loads. Dimensional Series K - for demanding applications.
Friction pair - chrome-plated steel/bronze
Housing: heat-treated steel [DE FR IT 42CrMo4, SE 2244, GB 708M40, US Aisi4140], forged
Bearing liner: special bronze CuSn8
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
50 / 1.97"
W - width of the inner ring [mm /inch]
25 / 0.99"
T - width of the outer ring [mm /inch]
18 / 0.71"
L- Lenght [mm /inch]
78 / 3.07"
GM - Thread length [mm /inch]
47 / 1.85"
Deflection angle
28°
Maximum static load [kN / lbs]
93.5 / 21019.64
Maximum dynamic load [kN / lbs]
31.5 / 7081.48
Weight
348g / 0,77lbs
