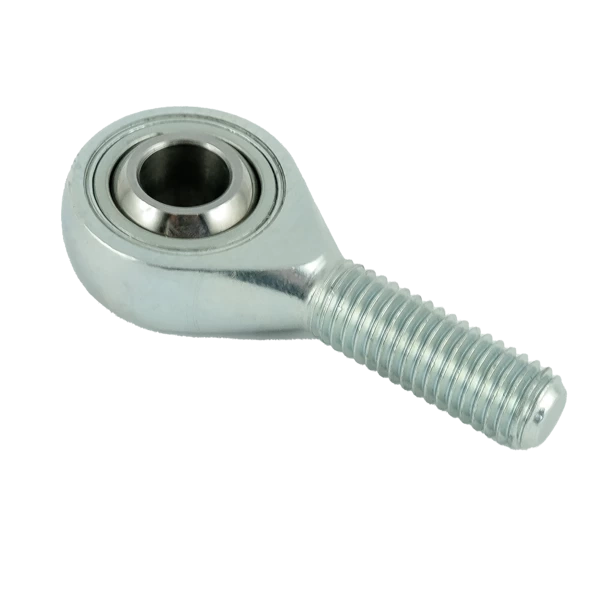

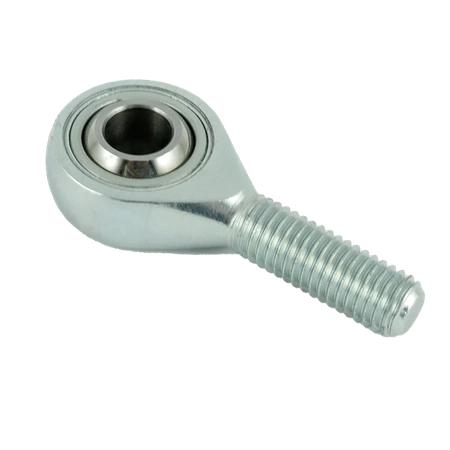

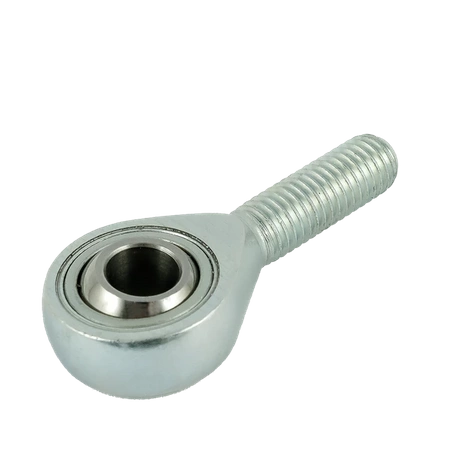

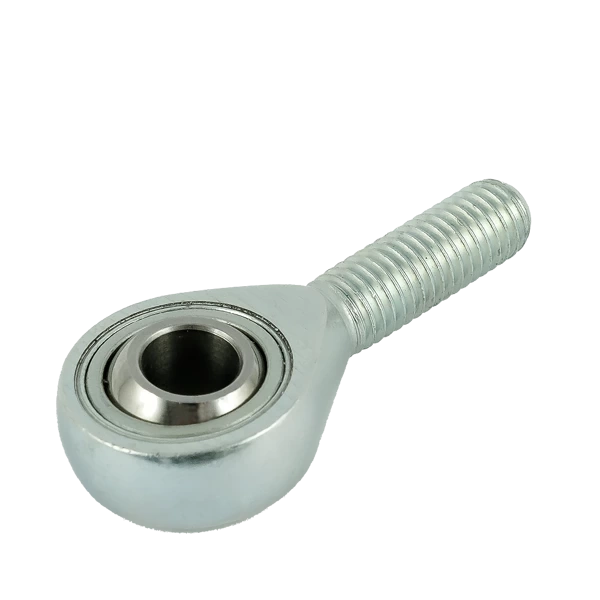

Tie rod end / tie rod end - uniball GAXS 25 FLURO - M24x2 right (male)
- Tie rod end / tie rod end - uniball GAXS 25 FLURO - M24x2 right (male)
GAXS 25 FLURO rod end - M24x2
GAXS Series - Rod end with external thread made of heat-treated steel, galvanized, lubricated through a concave ball grease nipple. For use under high tensile/compressive loads. Dimensional Series K - for demanding applications.
Friction pair - chrome-plated steel/bronze
Housing: heat-treated steel [DE FR IT 42CrMo4, SE 2244, GB 708M40, US Aisi4140], forged
Bearing liner: special bronze CuSn8
Inner ring: bearing steel: [DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
60 / 2.36"
W - width of the inner ring [mm /inch]
31 / 1.22"
T - width of the outer ring [mm /inch]
22 / 0.87"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
57 / 2.24"
Deflection angle
28°
Maximum static load [kN / lbs]
135.0 / 30349.24
Maximum dynamic load [kN / lbs]
47.0 / 10566.02
Weight
600 g / 1.323 lbs
