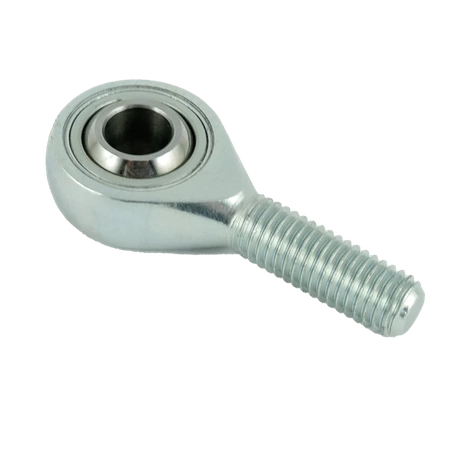

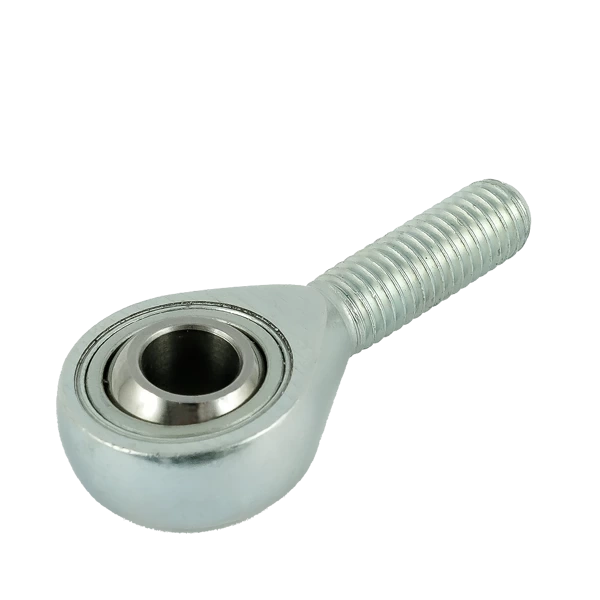

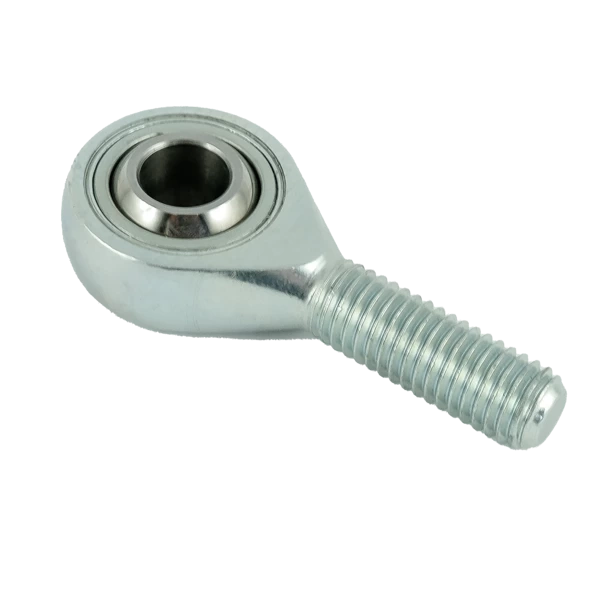

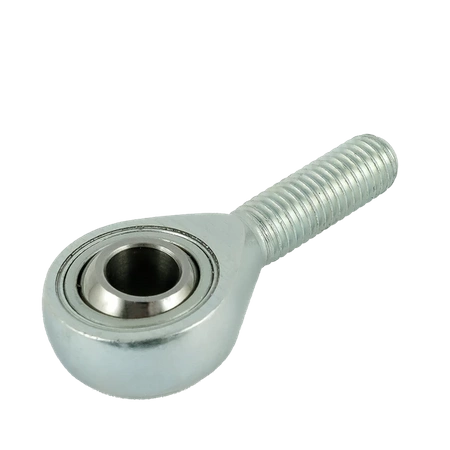

Tie rod end / tie rod end - uniball GARS 16 FLURO - M16 right (male)
- Tie rod end / tie rod end - uniball GARS 16 FLURO - M16 right (male)
Rod End GARS 16 FLURO - M16
GARS Series - Rod end with external thread made of stainless steel, lubricated through a concave ball socket. For use in corrosion-prone areas. Dimensional series K - stainless.
Friction pair - chrome-plated steel/steel
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, machined
Bearing shell: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
21 / 0.83"
T - width of the outer ring [mm /inch]
15 / 0.59"
L- Lenght [mm /inch]
66 / 2.60"
GM - Thread length [mm /inch]
40 / 1.57"
Deflection angle
30°
Maximum static load [kN / lbs]
60.5 / 13600.94
Maximum dynamic load [kN / lbs]
21.5 / 4833.39
Weight
189 g / 0,41667 lbs
