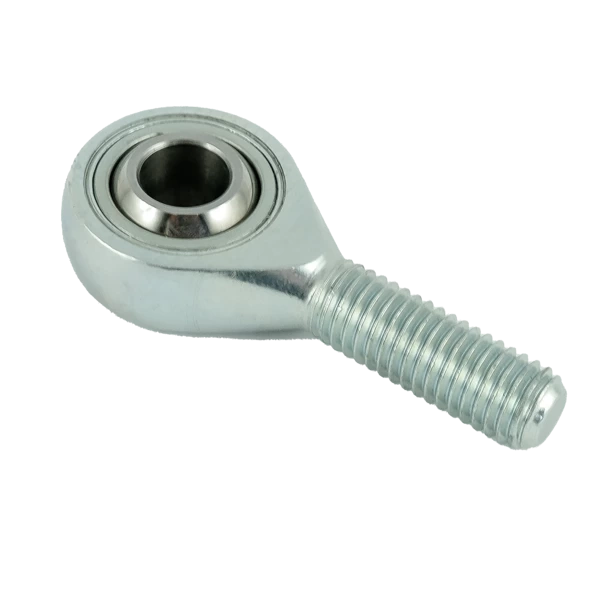

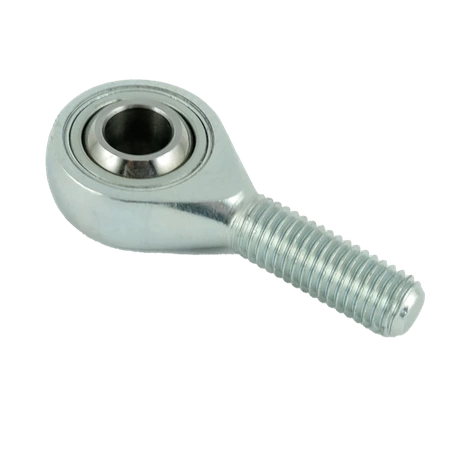

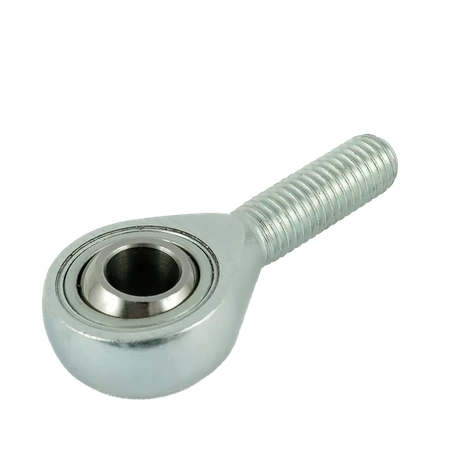

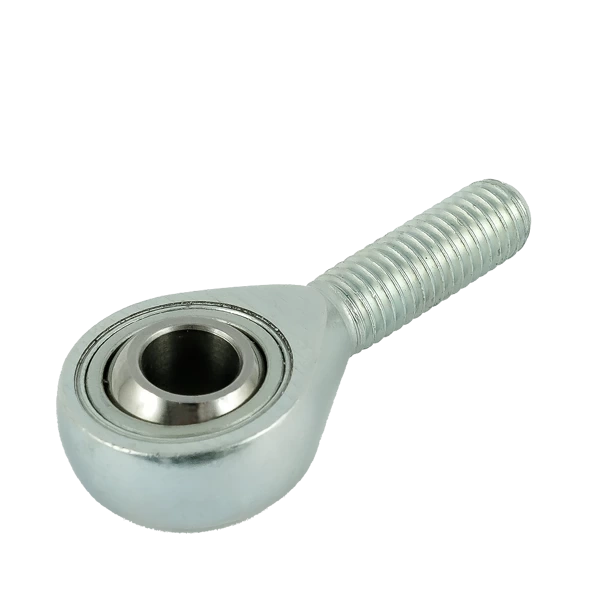

Tie rod end / tie rod end - uniball GARS 12 R FLURO - M12 right (male)
- Tie rod end / tie rod end - uniball GARS 12 R FLURO - M12 right (male)
Rod End GARS 12 R FLURO - M12
GARS Series - Rod end with stainless steel housing and inner ring, lubricated through a concave ball socket. For use in corrosion-prone areas. Dimensional series K - stainless.
Friction pair - NIRO/bronze
Housing: stainless steel 1.4057, forged, polished. Size 40 made of stainless steel 1.4057, machined
Bearing shell: special bronze CuSn8
Inner ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, hard chrome-plated on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
32 / 1.26"
W - width of the inner ring [mm /inch]
16 / 0.63"
T - width of the outer ring [mm /inch]
12 / 0.47"
L- Lenght [mm /inch]
54 / 2.13"
GM - Thread length [mm /inch]
32 / 1.26"
Deflection angle
26°
Maximum static load [kN / lbs]
42.0 / 9441.98
Maximum dynamic load [kN / lbs]
13.5 / 3034.92
Weight
87g / 0.19180lbs
