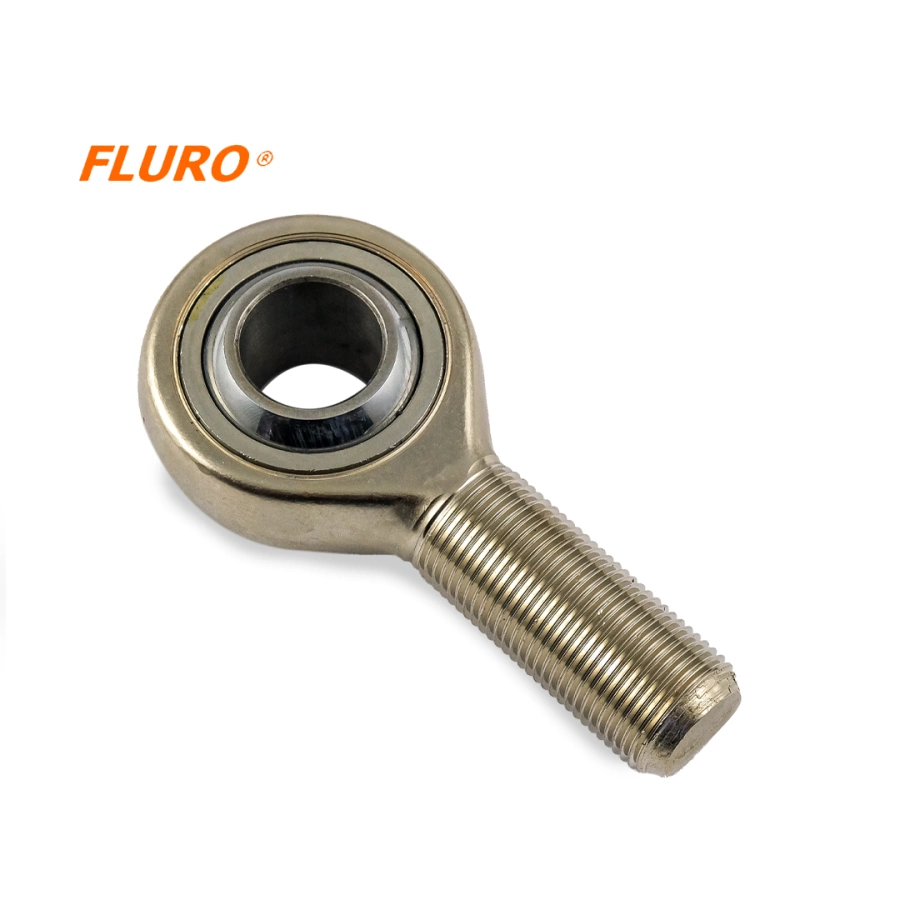

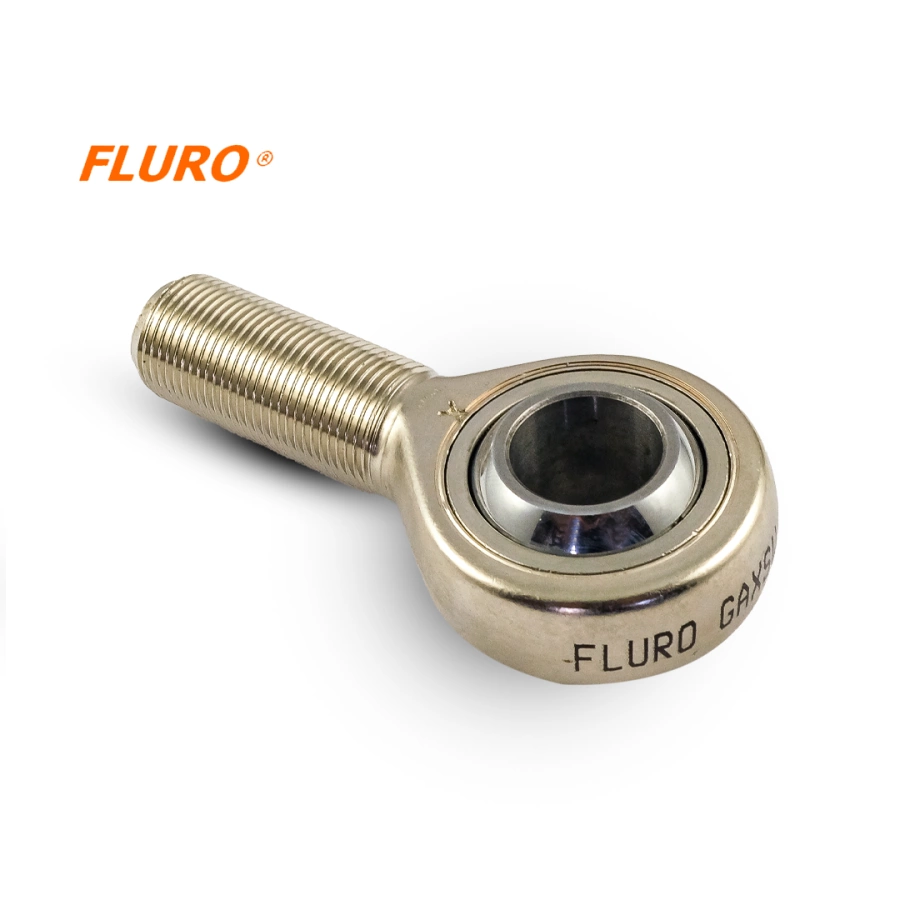

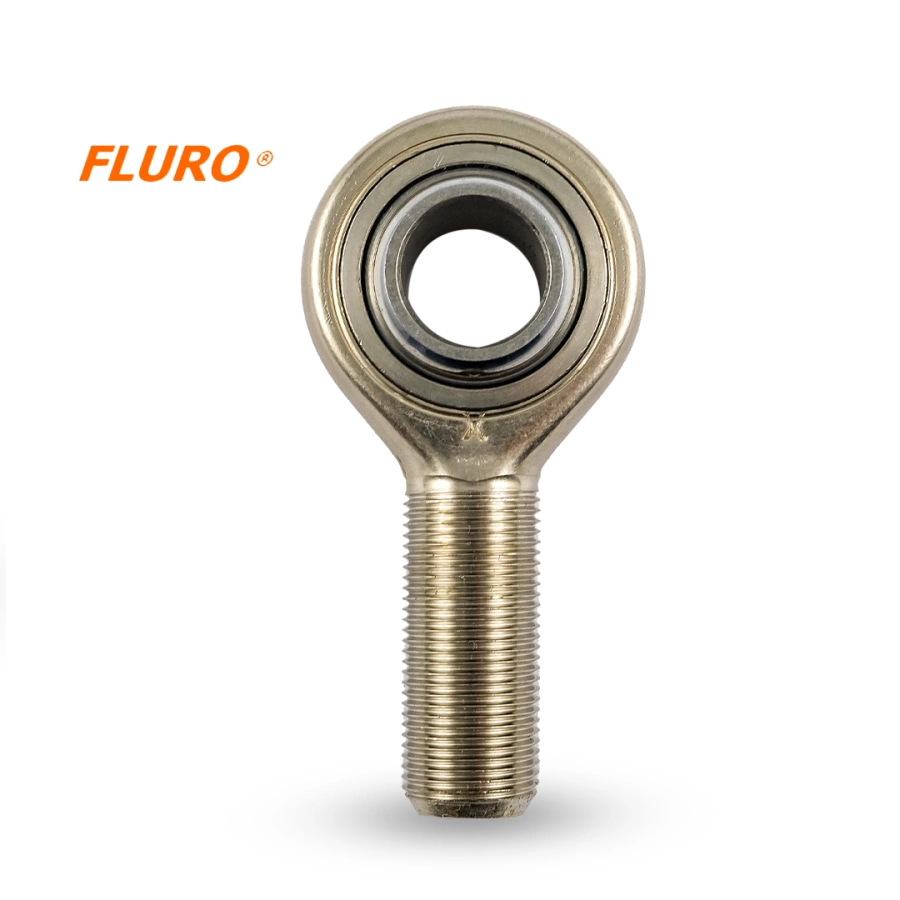

Tie rod end / tie rod end - uniball GAXSW 35 FLURO - M36x2 (male)
- Tie rod end / tie rod end - uniball GAXSW 35 FLURO - M36x2 (male)
GAXSW 35 FLURO Tie Rod End - M36x2
GAXSW Series - Tie rod end with external thread made of heat-treated steel, galvanized, with PTFE insert (maintenance-free).
For use under high dynamic tensile/compressive loads. Dimensional series K - maintenance-free.
Sliding pair - chrome-plated steel/PTFE
Housing: heat-treated steel [DE / FR / IT 42CrMo4 SE 2244, GB 708M40, Aisi 4140], forged
Bearing liner: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13] with bonded PTFE layer.
Inner ring: bearing steel [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished
Specification

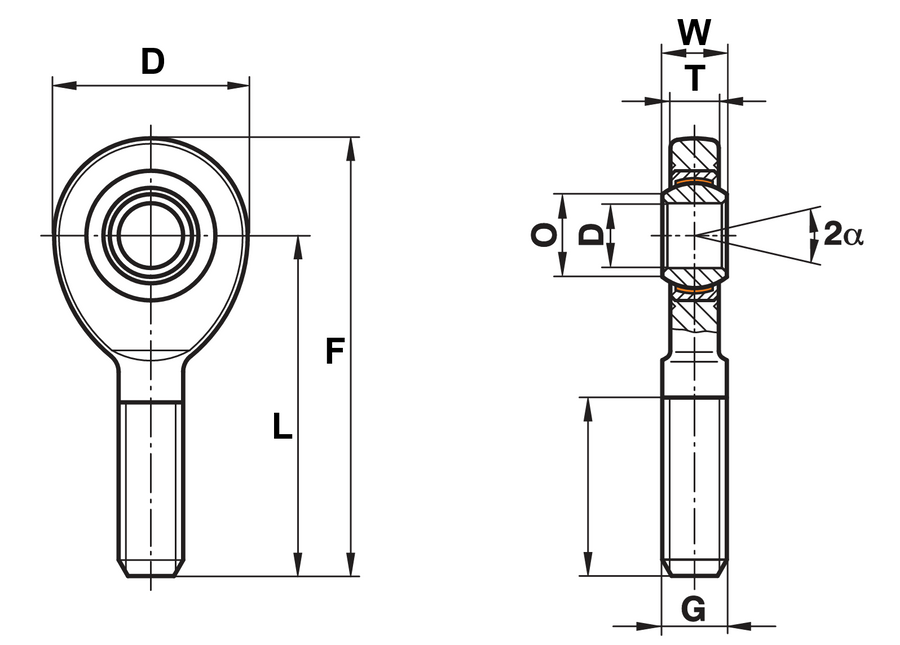

D - external diameter of the rod head [mm /inch]
80 / 3.15"
W - width of the inner ring [mm /inch]
43 / 1.69"
T - width of the outer ring [mm /inch]
28 / 1.10"
L- Lenght [mm /inch]
125 / 4.92"
GM - Thread length [mm /inch]
73 / 2.87"
Deflection angle
38°
Maximum static load [kN / lbs]
230.0 / 51706.06
Maximum dynamic load [kN / lbs]
205.0 / 46085.83
Weight
1600 g / 3.53 lbs
