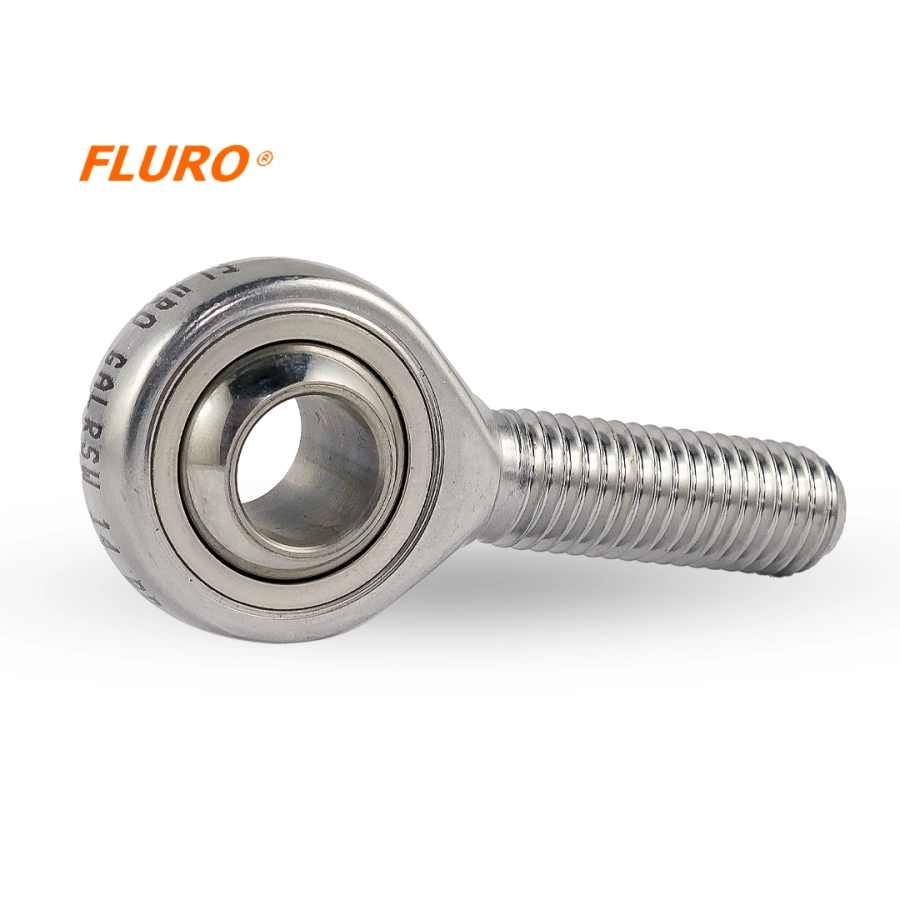

Tie rod end / tie rod end - uniball GARSW 25.RR FLURO - M24x2 right (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
60 / 2.36"
W - width of the inner ring [mm /inch]
31 / 1.22"
T - width of the outer ring [mm /inch]
22 / 0.87"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
57 / 2.24"
Deflection angle
30°
Maximum static load [kN / lbs]
118.0 / 26527.46
Maximum dynamic load [kN / lbs]
122.0 / 27426.69
Weight
600 g / 1.323 lbs
