Stage 2 BMW M57n M57n2 - Nissan Patrol Y61 ZD30 / Y61 TD42 - 215mm / 8.46" Twin disc
- PMC Motorsport Stage 2 Gearbox Adapter / Clutch Kit BMW M57n M57n2 (Large Bellhousing) - Nissan Patrol Y61 ZD30 TD42 - 215mm / 8.46" Twin Disc + Sachs XTend 3000 950 709S max. 700Nm / 516.12 lb⋅ft
In a set

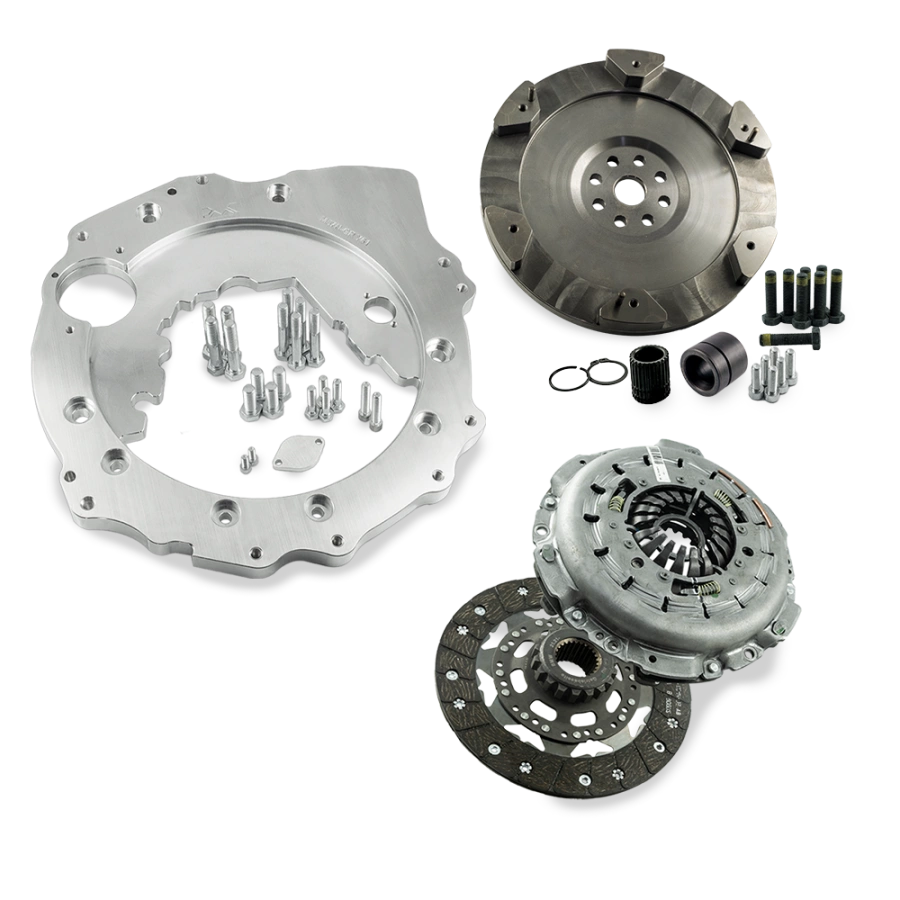

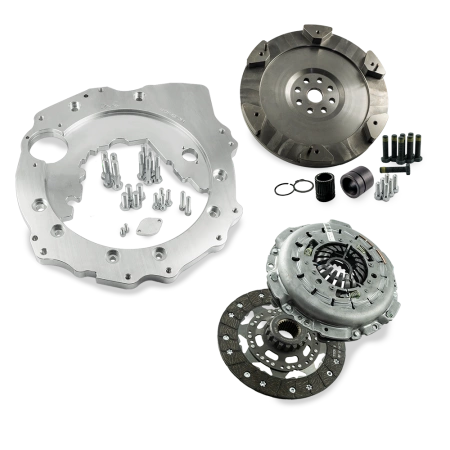

PMC Motorsport Stage 2 Gearbox Adapter / Clutch Kit BMW M57n M57n2 (Large Bellhousing) - Nissan Patrol Y61 ZD30 TD42 - 215mm / 8.46" Twin Disc + Sachs XTend 3000 950 709S max. 700Nm / 516.12 lb⋅ft

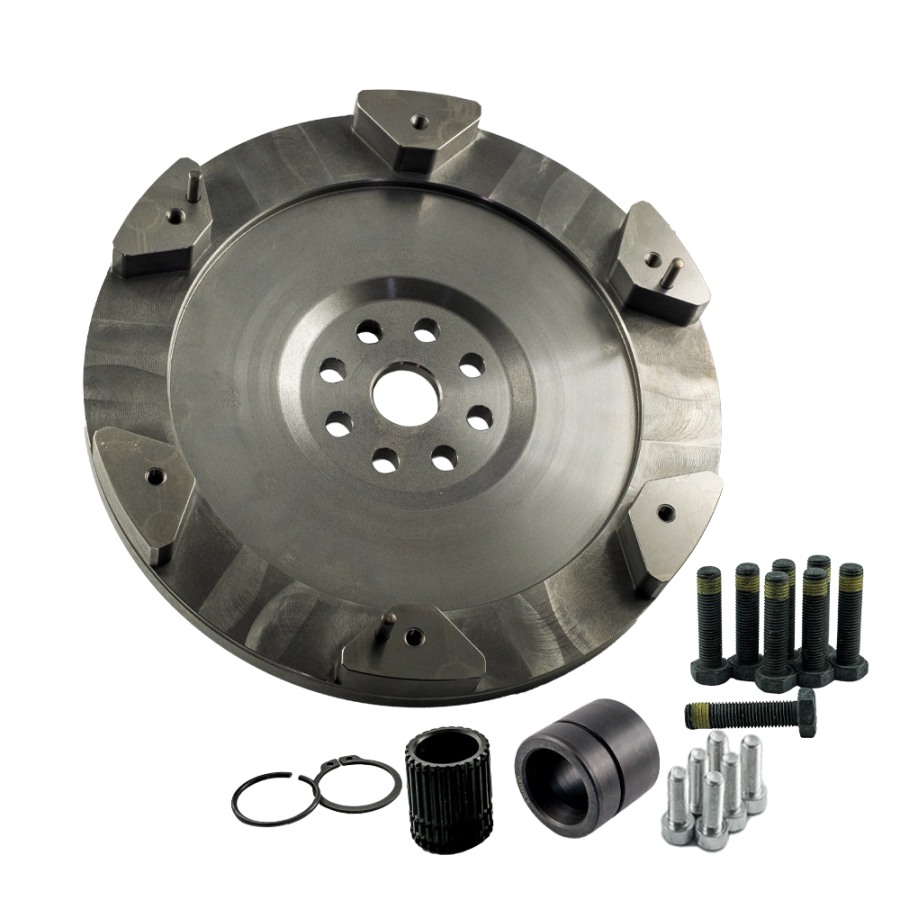

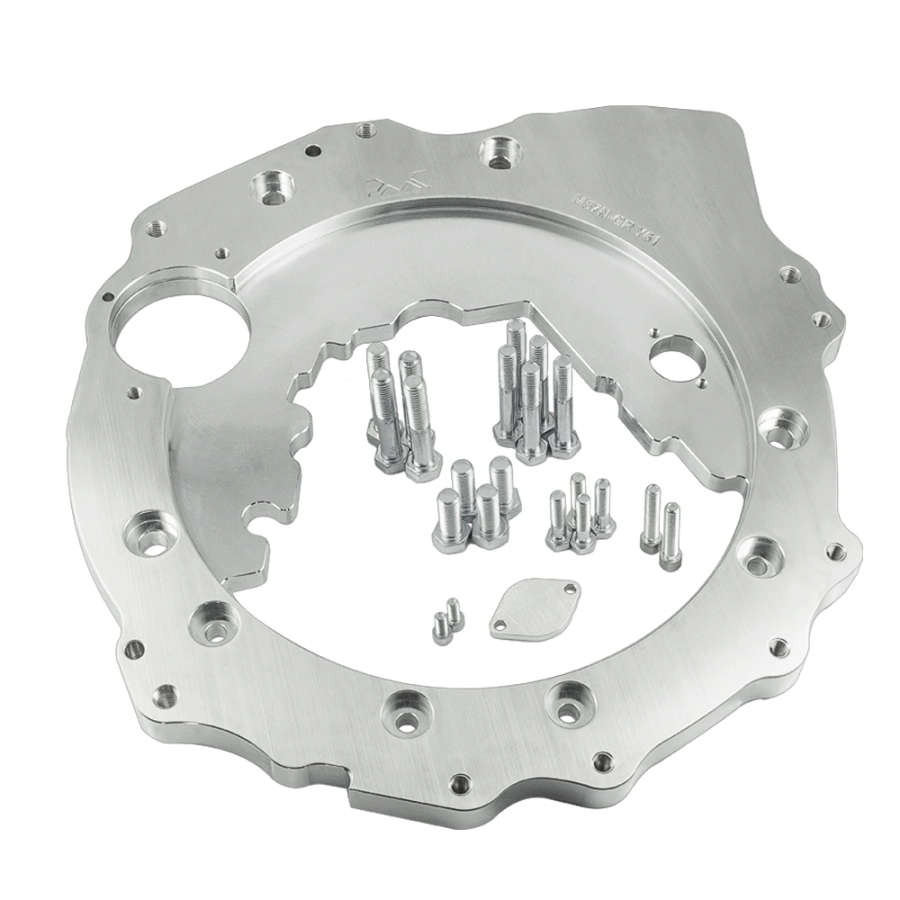

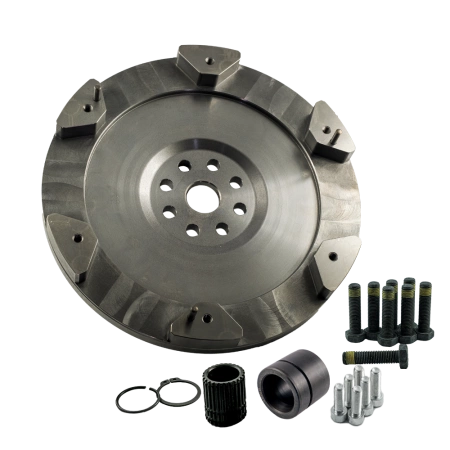

Do you want to perform an engine SWAP of the BMW M57n M57n2 306D2-EU4 218HP 306D3 306D4 306D5 and keep the drivetrain of your Nissan Patrol? - Our clutch kit is the perfect solution for you. The kit includes a gearbox adapter and a cast iron flywheel along with a Sachs XTend twin-disc clutch set. The custom cast iron / rigid flywheel by PMC Motorsport weighs similar to the original BMW M57 OE dual-mass flywheel.
PMC Motorsport gearbox adapters are a synonym for precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal alignment of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured by our company.
Selection assistance and after-sales support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for your needs. In case of any doubts during installation, we provide technical support. You can reach us via the contact form.
Single component purchase
In our offer, we have every single element of our kit available for individual purchase.
Thousands of manufactured adapters and satisfied customers all over the world.
PMC Motorsport adapters are used both in Daily cars and in professional projects dedicated to motorsport.
From the beginning, we focus on the quality of the parts we produce. After each production stage, the element is inspected. Every component we manufacture is engraved with a production serial number.
We confirm quality with the ISO PN-EN ISO 9001:2015 certificate
We ship our products to almost all countries in the world. EU countries (except islands) and the UK have automatically calculated shipping costs. For countries not on the list, our team will prepare a shipping calculation after the order is placed and add it to the order. You will receive an email with the total cost.
NOTE: The sent shipping quote along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for Customers with an active European VAT number (option for B2B customers from outside Poland) and in the case of export outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: |
BMW BMW M57n M57D30 306D2-EU4 218HP BMW M57n2 M57D30 306D3 306D4 306D5 |
| Compatible gearboxes: |
Nissan Patrol Y61 ZD30 / TD42 5-speed FS5R30A manual 5-speed FS5R50B manual |
Additional Information
PMC Motorsport parts are intended for motorsport use. For use on race tracks only.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.

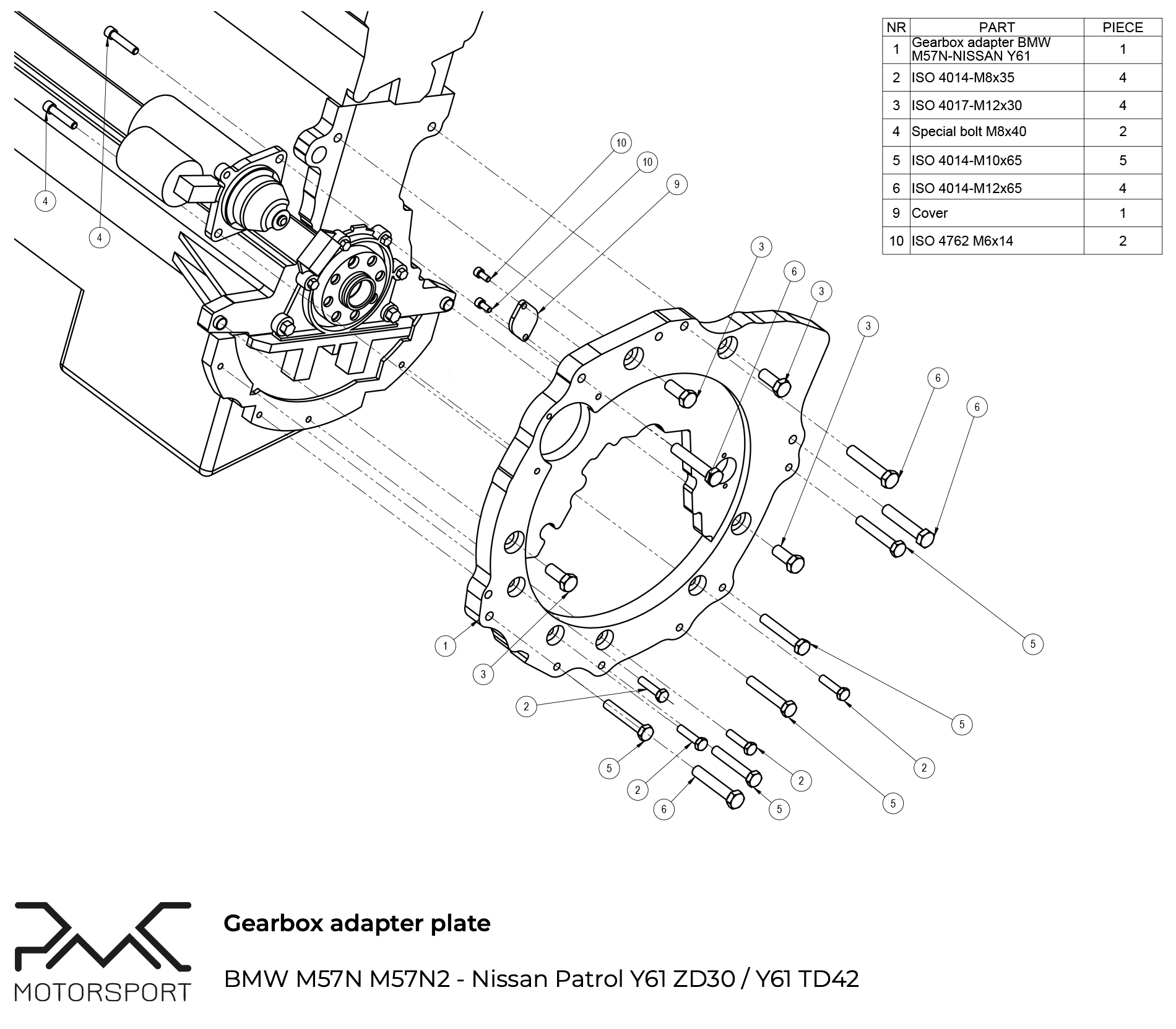

The adapter installation manual contains only the basic knowledge necessary for the physical connection of the engine and the gearbox outside the car body.
Depending on the car, additional modifications may be required, such as: adjusting mounts, bushings, engine firewall, gearbox tunnel, driveshaft length, etc.
Our adapters are made of materials that are fully recyclable.
For the installation of the custom flywheel, it is necessary to use the starter ring gear / flywheel from the BMW automatic version OE 11227788746 / 11 22 7 788 746
BMW M57N
- BMW M57TUD30 160 kW (218 HP) 500Nm
- BMW M57TUD30 535d 200 kW (272HP) 560Nm
- BMW M57T2D25 145 kW (197 HP) 400 Nm
- BMW M57T2D30 170 kW (231 HP) 500 Nm
BMW M57N2
- BMW M57N2 - 306D3 173 kW (235 HP) 520 Nm (5 E60/61 530d, X5 E70 3.0d, X6 E71 30dX)
- BMW M57N2 - 306D5 210 kW (286 HP) 580 Nm (5 E60/61 535d, X5 E70 3.0sd i 3.5d, X6 E71 35dX)
