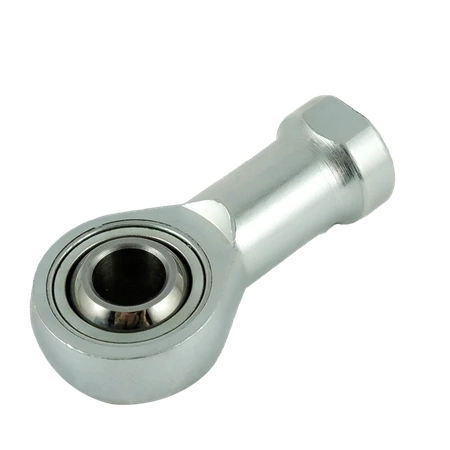

Rod End / Tie Rod End - Uniball GIRSW 40 RR FLURO - M42x2 Right (Female)
- GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free). Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments.
Rod End FLURO GIRSW RR
GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free).
Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional Series K - stainless steel, maintenance-free.
Friction Pair: NIRO / PTFE
Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US Aisi 431] forged, polished from size 40 - turned
Bearing Bushing - special bronze CuSn8 with bonded PTFE layer
Inner Ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / USA Aisi 52100 ] hardened, ground, polished, hard chrome-plated on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
90 / 3.54"
W - width of the inner ring [mm /inch]
49 / 1.93"
T - width of the outer ring [mm /inch]
35 / 1.38"
L- Lenght [mm /inch]
142 / 5.59"
GM - Thread length [mm /inch]
60 / 2.36"
Kąt wychylenia
32°
Maximum static load [kN / lbs]
235.0 / 52830.10
Maximum dynamic load [kN / lbs]
286.0 / 64295.36
Weight
2770 g / 6.107 lbs
