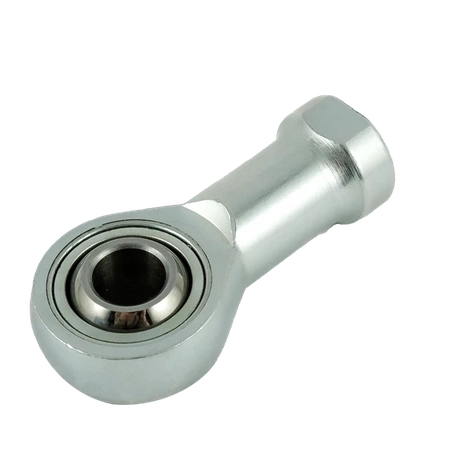

Rod End / Tie Rod End - Uniball GIRSW 14x1.5 FLURO - M14x1.5 Right (Female)
- GIRSW Series – Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free). Suitable for high dynamic tensile/compressive loads in corrosion-prone environments.
FLURO GIRSW Rod End
GIRSW Series - Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free).
Suitable for high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction pair: chromed steel / PTFE
Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned
Bearing bushing - special bronze CuSn8 with bonded PTFE layer
Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
36 / 1.42"
W - width of the inner ring [mm /inch]
19 / 0.75"
T - width of the outer ring [mm /inch]
13.5 / 0.53"
L- Lenght [mm /inch]
57 / 2.24"
GM - Thread length [mm /inch]
25 / 0.98"
Kąt wychylenia
32°
Maximum static load [kN / lbs]
39.5 / 8879.95
Maximum dynamic load [kN / lbs]
42.0 / 9441.98
Weight
115 g / 0.254 lbs
