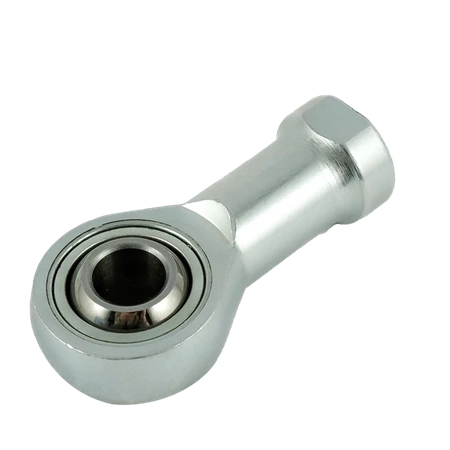

Rod end / tie rod end - uniball GILSW 16x1.5 FLURO - M16x1.5 left internal (female)
Rod end / tie rod end - uniball GILSW 16x1.5 FLURO - M16x1.5 left internal (female)
Rod end / tie rod end - uniball GILSW 16x1.5 FLURO - M16x1.5 left internal (female)

Rod end / tie rod end - uniball GILSW 16x1.5 FLURO - M16x1.5 left internal (female)

+ Add to compareAdd to shopping list
  • GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free). For use under dynamic loads.
30,40 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is in constant sale
Shipment tomorrow
Free and fast delivery
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Free delivery to a parcel locker or collection pointMore information
Smile - deliveries from online stores when ordering more than EUR16.73 are free
You buy and get delivery for free!
deliveries from online shops atorders for EUR16.73 are free.
Free delivery includes delivery to an InPost parcel locker or an Orlen Paczka collection point
Smile is a service

FLURO GISW Rod End



GISW Series - Rod end with internal thread made of free-cutting steel or heat-treated steel, zinc-plated, with PTFE liner (maintenance-free).

For use under dynamic loads. Dimensional series K - maintenance-free design.

Friction pair: steel/PTFE

Housing:

up to size 12 - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] turned

from size 14 - heat-treated steel [ DE C22 / FR XC25 / IT C21 / SE 1450 /UK 070M20 / USA M1023 ] forged

size 50 - heat-treated steel [ DE C45 / FR 1C45 / IT C45 / SE 1650 / UK 080M46 / Aisi 1045 ] turned

Bearing bush - free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 /UK 230M07 /12L 13 ] with bonded PTFE layer

Inner ring - bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / Aisi 52100 ] hardened, ground, polished

Brand
FLURO
Symbol
GILSW 16x1.5
Type
Fluro GISW - Series
Thread
M16x1.5
Type of thread
Left Internal
Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
21 / 0.83"
T - width of the outer ring [mm /inch]
15 / 0.59"
L- Lenght [mm /inch]
64 / 2.52"
GM - Thread length [mm /inch]
28 / 1.10"
Kąt wychylenia
30°
Maximum static load [kN / lbs]
32.0 / 7193.89
Maximum dynamic load [kN / lbs]
52.5 / 11802.47
Weight
230 g / 0.507 lbs
