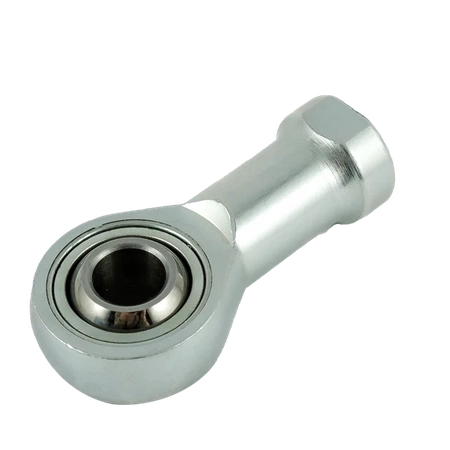

Rod end / tie rod end - uniball GILRSW 10 FLURO - M10 left-hand internal (female)
- GIRSW Series – Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free). Suitable for high dynamic tensile/compressive loads in corrosion-prone environments.
FLURO GIRSW Rod End
GIRSW Series - Rod end with internal thread made of stainless steel, with PTFE liner (maintenance-free).
Suitable for high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction pair: chromed steel / PTFE
Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned
Bearing bushing - special bronze CuSn8 with bonded PTFE layer
Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
L- Lenght [mm /inch]
43 / 1.69"
GM - Thread length [mm /inch]
20 / 0.79"
Kąt wychylenia
26°
Maximum static load [kN / lbs]
28.3 / 6362.09
Maximum dynamic load [kN / lbs]
23.4 / 5260.53
Weight
76 g / 0.168 lbs
