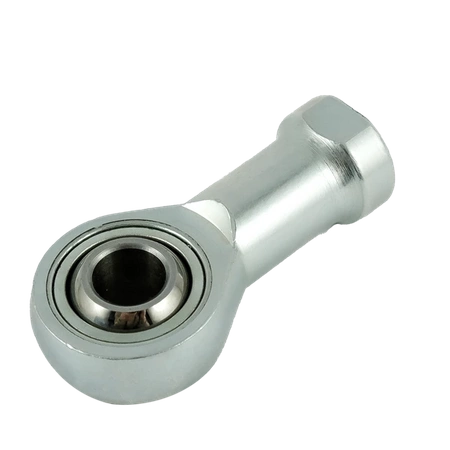

Rod end / tie rod end - uniball GILRSW 12 RR FLURO - M12 left-hand internal (female)
- GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free). Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments.
Rod End FLURO GIRSW RR
GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free).
Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional Series K - stainless steel, maintenance-free.
Friction Pair: NIRO / PTFE
Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned
Bearing bushing - special bronze CuSn8 with bonded PTFE layer
Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
32 / 1.26"
W - width of the inner ring [mm /inch]
16 / 0.63"
T - width of the outer ring [mm /inch]
12 / 0.47"
L- Lenght [mm /inch]
50 / 1.97"
GM - Thread length [mm /inch]
22 / 0.87"
Kąt wychylenia
26°
Maximum static load [kN / lbs]
34.5 / 7754.11
Maximum dynamic load [kN / lbs]
32.0 / 7193.89
Weight
115 g / 0.254 lbs
