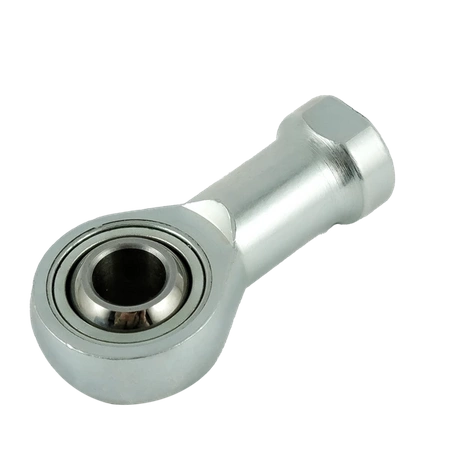

Rod end / tie rod end - uniball GILRSW 16 RR FLURO - M16 left-hand internal (female)
- GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free). Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments.
Rod End FLURO GIRSW RR
GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free).
Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional Series K - stainless steel, maintenance-free.
Friction Pair: NIRO / PTFE
Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned
Bearing bushing - special bronze CuSn8 with bonded PTFE layer
Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
42 / 1.65"
W - width of the inner ring [mm /inch]
21 / 0.83"
T - width of the outer ring [mm /inch]
15 / 0.59"
L- Lenght [mm /inch]
64 / 2.52"
GM - Thread length [mm /inch]
28 / 1.10"
Kąt wychylenia
30°
Maximum static load [kN / lbs]
60.5 / 13600.94
Maximum dynamic load [kN / lbs]
52.5 / 11802.47
Weight
230 g / 0.507 lbs
