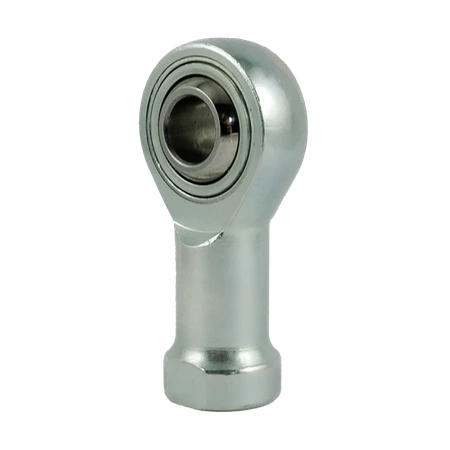

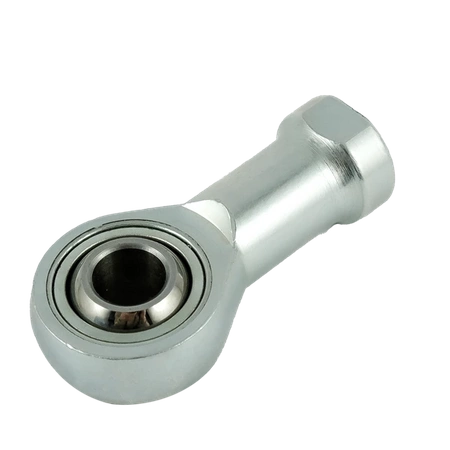

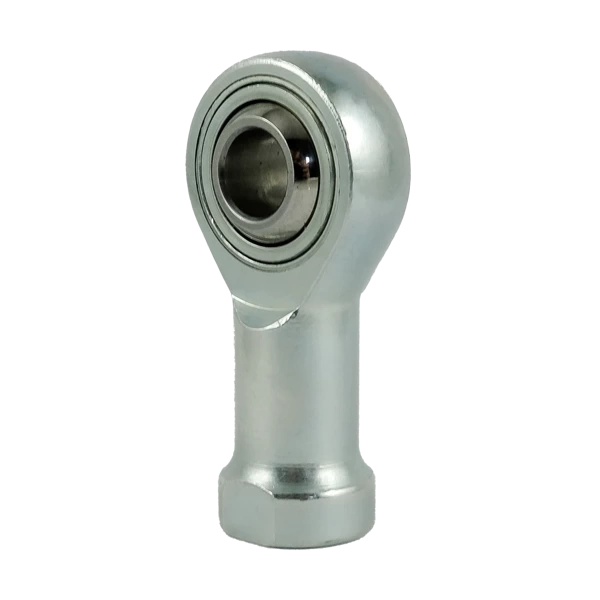

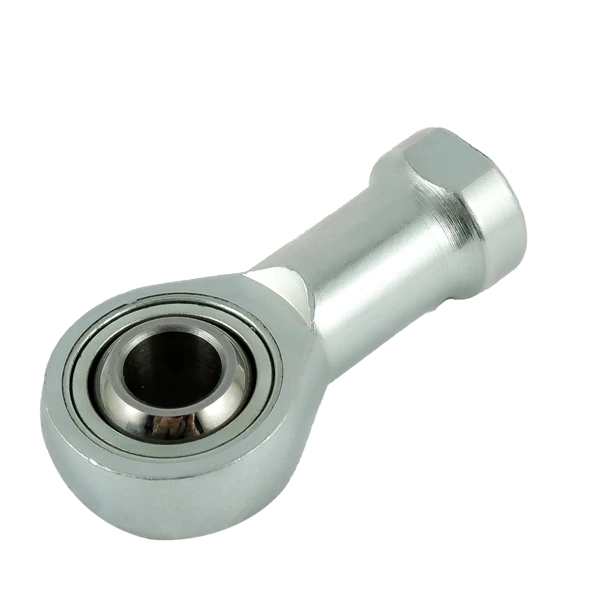

Rod end / tie rod end - uniball GILRSW 22 RR FLURO - M22x1.5 left-hand internal (female)
- GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free). Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments.
Rod End FLURO GIRSW RR
GIRSW RR Series - Rod End - all stainless steel components, with PTFE liner (maintenance-free).
Designed for use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional Series K - stainless steel, maintenance-free.
Friction Pair: NIRO / PTFE
Housing: stainless steel 1.4057 [DE X20CrNi172 / FR Z15CN16-02 / IT X16CrNi16 / SE 2321 / UK 431S29 / US AISI 431], forged, polished; from size 40 - turned
Bearing bushing - special bronze CuSn8 with bonded PTFE layer
Inner ring - bearing steel [DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / US AISI 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces.
Specification
D - external diameter of the rod head [mm /inch]
54 / 19,69'
W - width of the inner ring [mm /inch]
28 / 1.10"
T - width of the outer ring [mm /inch]
20 / 0.79"
L- Lenght [mm /inch]
84 / 3.31"
GM - Thread length [mm /inch]
37 / 1.46"
Deflection angle
30°
Maximum static load [kN / lbs]
100 / 22480.89
Maximum dynamic load [kN / lbs]
97.0 / 21806.47
Weight
540 g / 1.019 lbs
