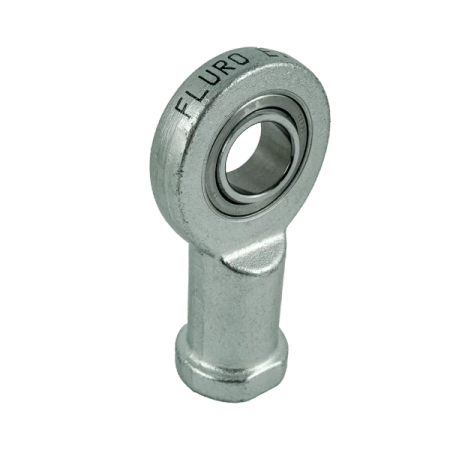

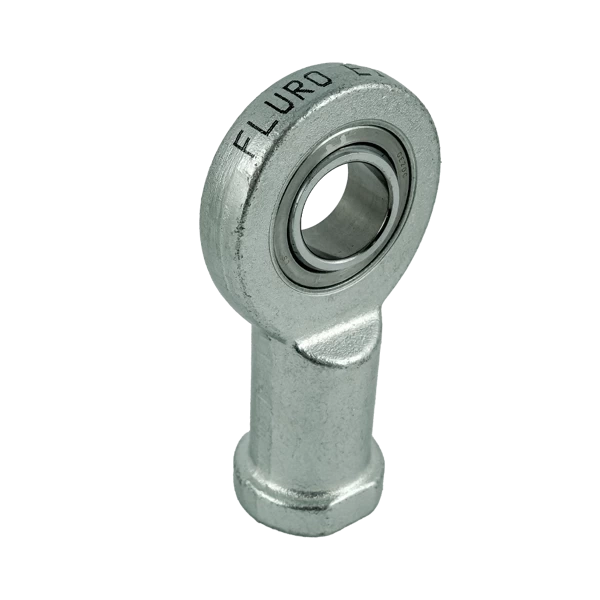

Rod end / tie rod end - uniball EI 16x1.5 D-NIRO FLURO - M16x1.5 right-hand internal (female)
- Series EI..D-NIRO – stainless steel rod end with internal thread, equipped with maintenance-free GE..EC-NIRO spherical plain bearing.
FLURO Rod End EI - NIRO
Series EI – rod end, dimensional series E with internal thread, made of stainless steel, with maintenance-free GE..EC-NIRO spherical plain bearing.
For use in applications involving high, one-sided loads and limited installation width in corrosion-prone environments.
Dimensional series E – maintenance-free, stainless steel.
Sliding contact pair: steel / PTFE
Housing: sizes 6 - 40 stainless steel 1.4301, forged, polished
from size 45 stainless steel 1.4301, turned
from size 50 stainless steel 1.4571, turned
Bearing – maintenance-free GE..EC-NIRO spherical plain bearing made of stainless steel
Specification
D - external diameter of the rod head [mm /inch]
46 / 1.81"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
11 / 0.43"
L- Lenght [mm /inch]
67 / 2.64"
GM - Thread length [mm /inch]
33 / 1.30"
Deflection angle
20°
Maximum static load [kN / lbs]
54.5 / 12252.09
Maximum dynamic load [kN / lbs]
22.5 / 5058.20
Weight
220 g / 0.485 lbs
