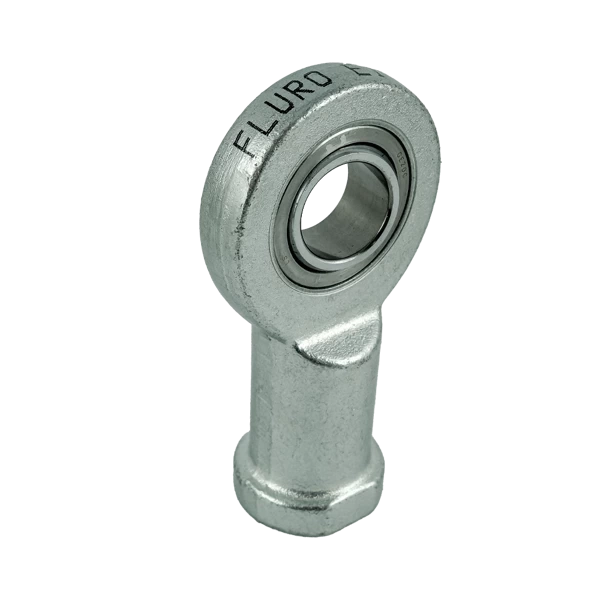

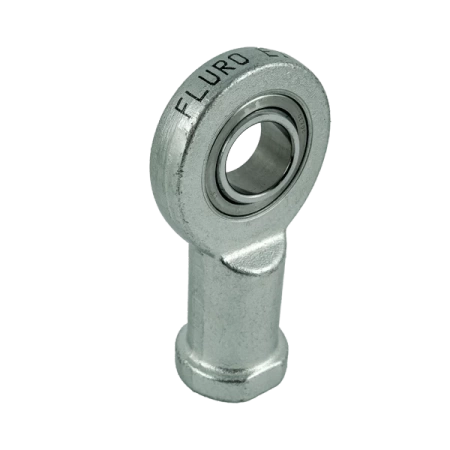

Rod end / tie rod end - uniball EI 10 So M8 FLURO - M8 right-hand internal (female)
- EL series - rod end head, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.
FLURO EL Rod End
EL Series - rod end, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with a maintenance-free spherical bearing.
For use in high, unidirectional loads and limited installation width.
Dimensional series E - maintenance-free.
Friction pair: steel / steel
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing - maintenance-free steel / PTFE GE...EC bearing
Specification
D - external diameter of the rod head [mm /inch]
25 / 0.98"
W - width of the inner ring [mm /inch]
9 / 0.35"
T - width of the outer ring [mm /inch]
6.5 / 0.26"
L- Lenght [mm /inch]
38 / 1.50"
GM - Thread length [mm /inch]
20 / 0.79"
Deflection angle
24°
Maximum static load [kN / lbs]
23.4 / 5260.53
Maximum dynamic load [kN / lbs]
8.6 / 1933.36
Weight
20 g / 0.044 lbs
