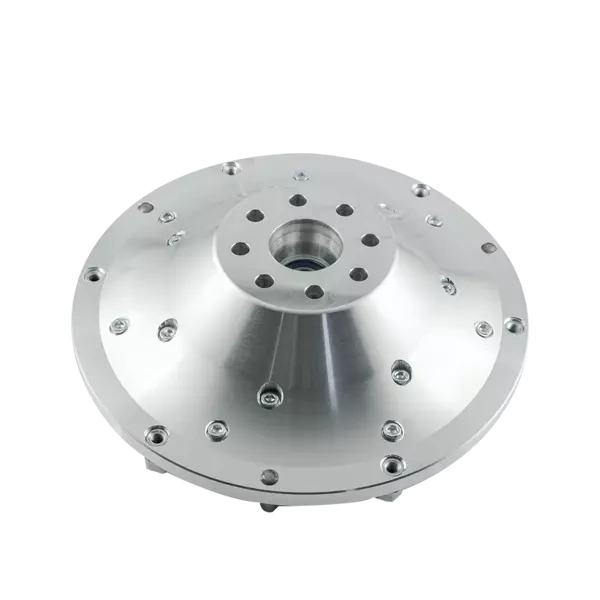

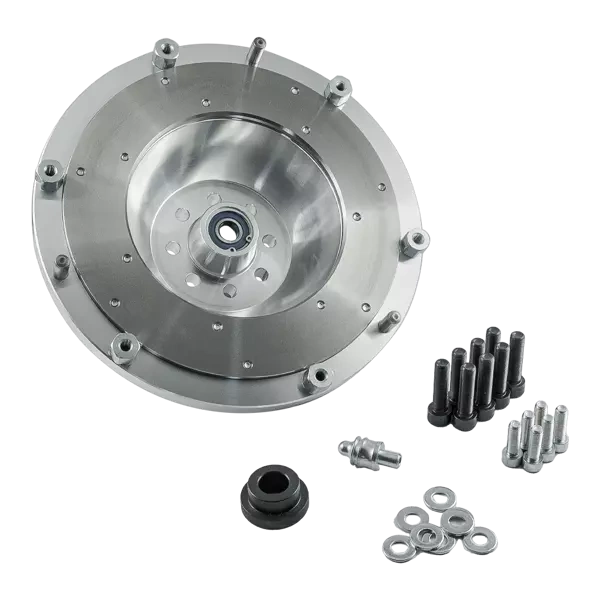

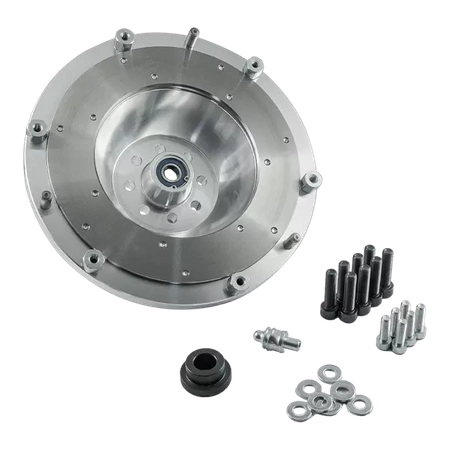

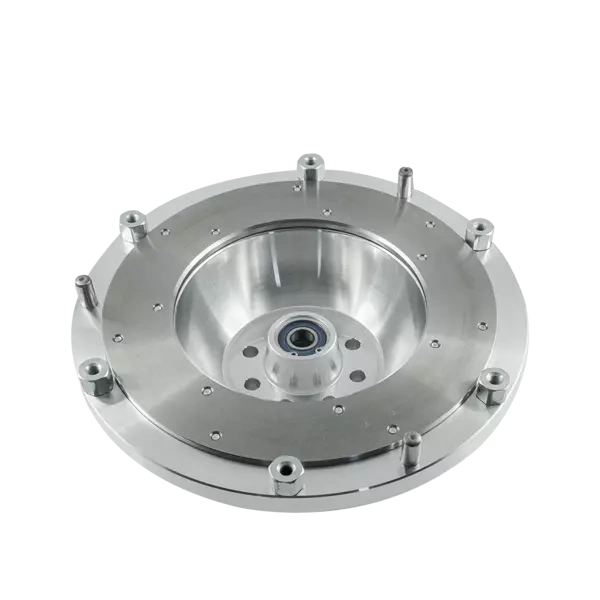

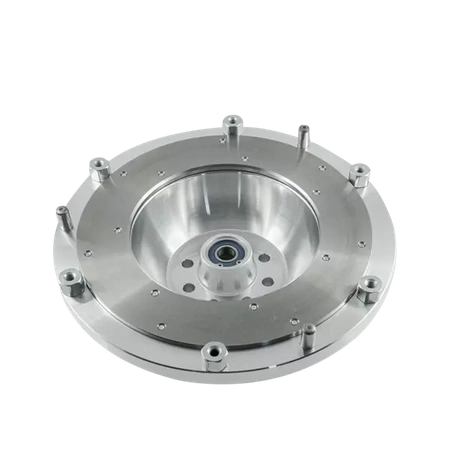

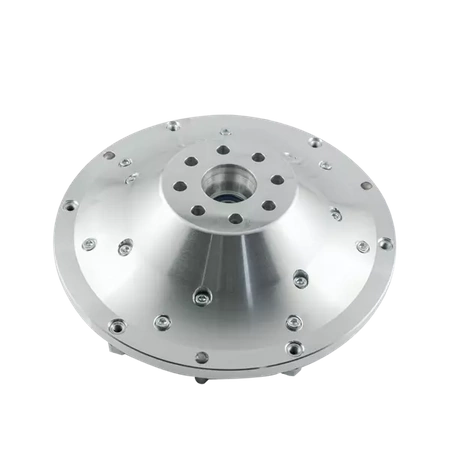

Flywheel Toyota JZ 1JZ 2JZ - BMW M47 ZF5 S5D-280Z - 240mm / 9.45"
- PMC Motorsport Lightweight custom aluminum flywheel Toyota JZ 1JZ 2JZ - BMW M47 ZF5 S5D-280Z - 240mm / 9.45"
PMC Motorsport Customowe koło zamachowe Toyota JZ 1JZ 2JZ - BMW M47 ZF5 S5D-280Z E46 320D E39 520D 5-biegów Diesel - 240mm / 9.45"
Aluminiowe customowe koło zamachowe umożliwiające połączenie (swap / konwersje) silnika Toyota JZ 1JZ 2JZ (wersji GE GTE VVT-i i non VVT-i) z manualną 5 biegową skrzynią ZF (ZF Friedrichshafen) S5D-280Z pochodzącą z BMW
PMC Motorsport gearbox adapters are a synonym for precision and top quality. The design process based on 3D scanning and inspection with a measuring arm ensure a perfect fit. Production on modern CNC machines guarantees ideal concentricity of the engine and gearbox, which is crucial for the durability of the drivetrain.
Our entire production and R&D department are located in Poland. More than 90% of the components are manufactured by our company.
Selection assistance and after-sales support - PMC Motorsport Support
The PMC Motorsport team will help you choose the right kit for you. In case of any doubts during installation, they will provide technical support. You can contact us via the contact form.
Individual component purchase
Our offer includes every element of our kit, which can be purchased separately.
Thousands of manufactured adapters and satisfied customers worldwide.
PMC Motorsport adapters are used in both daily cars and professional projects intended for motorsport.
From the beginning, we focus on the quality of the parts we manufacture. Every element is inspected after each stage of production. Every component produced by us is engraved with a production serial number.
Quality confirmed by ISO certificate PN-EN ISO 9001:2015
We ship our products to almost every country in the world. Shipping costs for European Union countries (excluding islands) and the UK are calculated automatically. For countries not on the list, our team will calculate shipping costs after the order is placed and add them to the order. You will receive an email with the order cost.
NOTE: The provided shipping quote along with the product price does not include additional fees / customs duties that may occur depending on the destination country.
0% VAT
0% VAT for customers with an active European VAT ID (option for B2B customers outside Poland) and for export outside the EU.
After positive verification in the VIES system, we modify the order by removing the charged VAT.
| Compatible engines: |
Toyota JZ Toyota 1JZ 1JZ-FSE 1JZ-GE 1JZ-GTE (non VVT-i / VVT-i version) Toyota 2JZ 2JZ-FSE 2JZ-GE 2JZ-GTE (non VVT-i / VVT-i version) |
| Compatible gearboxes: |
ZF (ZF Friedrichshafen) S5D-280Z 5-speed ZF S5D-280Z BMW M47 E39 520D E46 320D Diesel |
Additional Information
PMC Motorsport parts are intended for motorsport. For use on racing tracks.
Parts are intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.
The adapter installation manual contains only basic knowledge necessary for the physical connection of the engine with the gearbox outside the car body.
Depending on the car, additional modifications may occur, such as: fitting mounts, bushings, engine firewall, gearbox tunnel, driveshaft length, etc.
Our adapters are made from materials that are fully recyclable.
The flywheel requires the use of a PMC gearbox adapter. For installation, it is necessary to use an OE Toyota automatic transmission flexplate (part no. 32101-30090 | 32101-22050) and a 4.5mm spacer between the engine block and the ring gear (OE 32116-22020, not included). The clutch release fork should be mounted in the lower position of the release bearing.
FAQ
- Do I need an additional gearbox adapter for the PMC Motorsport Toyota 1JZ 2JZ flywheel?
Yes, to install the flywheel you need to use the 20mm PMC Motorsport F0BMW-JZ gearbox adapter.
- Which starter motor should I use with the PMC Motorsport Toyota 1JZ 2JZ flywheel?
You should use a Toyota JZ (OE) starter motor without an additional pinion shroud; Toyota Supra MKIV is recommended.
- What is the torque specification for the PMC Motorsport Toyota 1JZ 2JZ flywheel bolts?
The flywheel should be tightened to 72Nm / 53.1ft·lb, using thread locker.
- Does the PMC flywheel need additional balancing?
Every PMC Motorsport flywheel is balanced before shipping (our tolerance is 4g). In the case of installing a custom clutch kit, we recommend an additional check.
- BMW 3' E46 318D 320D M47 ZF S5D 280Z - THCI / BMW OE 23 00 7 503 247 / 23 00 7503247
- BMW 5' E39 520D M47 ZF S5D 280Z - THCM / BMW OE 23 00 7 505 380 / 23 00 7505380
