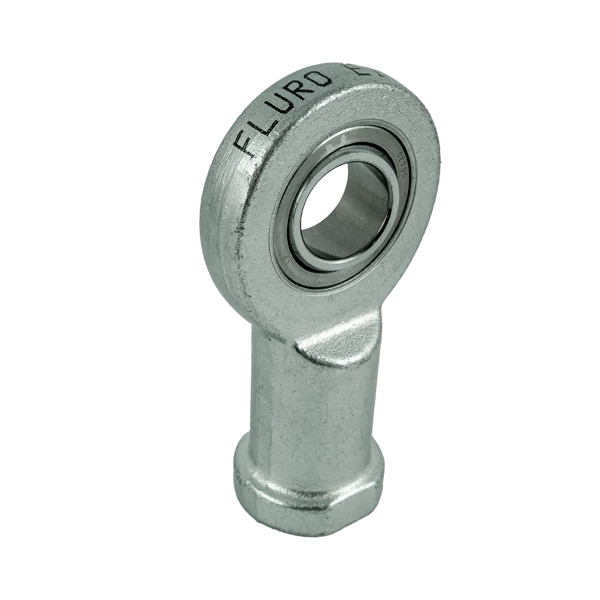

Rod end / linkage head - uniball EIL 12 D FLURO - M12 left-hand internal (female)
- EI series - rod end head, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.
FLURO EI Rod End
EI Series - rod end, dimensional series E with internal thread made of free-cutting steel or heat-treatable steel, zinc-plated, with a maintenance-free spherical bearing.
For use in high, unidirectional loads and limited installation width.
Dimensional series E - maintenance-free.
Friction pair: steel / PTFE
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing - maintenance-free steel / PTFE GE...EC bearing
Specification
D - external diameter of the rod head [mm /inch]
34 / 1.34"
W - width of the inner ring [mm /inch]
10 / 0.39"
T - width of the outer ring [mm /inch]
8 / 0.31"
L- Lenght [mm /inch]
50 / 1.97"
GM - Thread length [mm /inch]
23 / 0.91"
Deflection angle
22°
Maximum static load [kN / lbs]
31.0 / 6969.08
Maximum dynamic load [kN / lbs]
11.5 / 2585.30
Weight
96 g / 0.212 lbs
