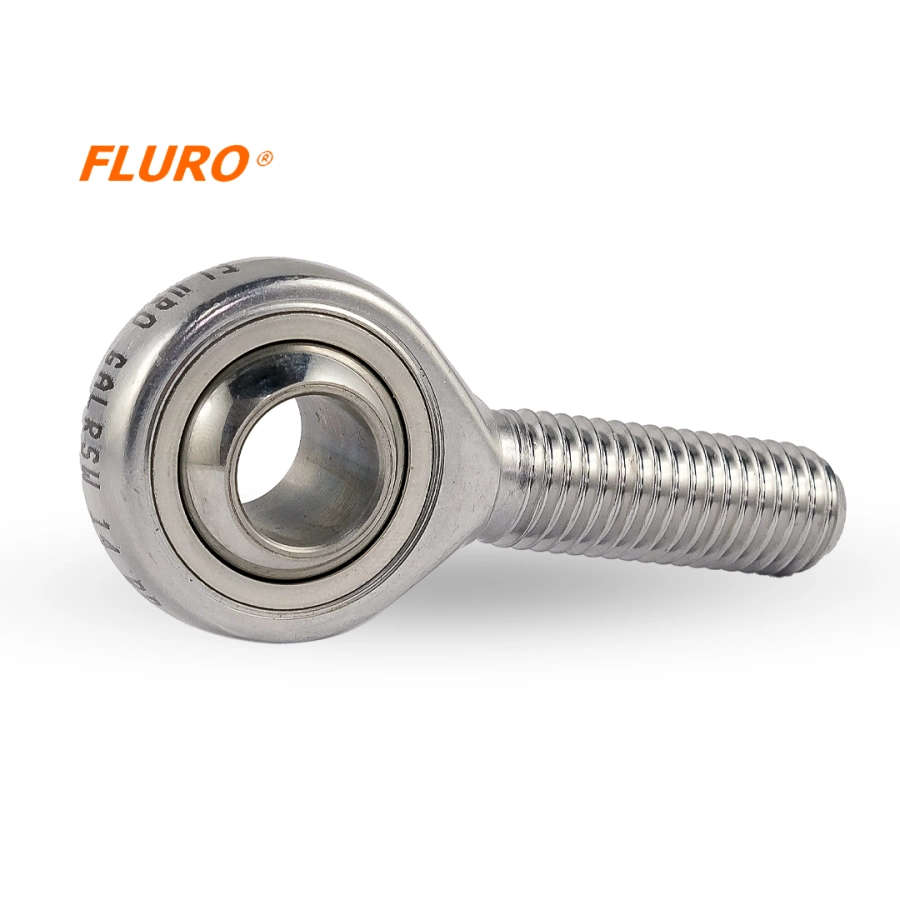

Rod end / linkage head - uniball GALRSW 22 RR FLURO - M22x1.5 left-hand external (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
54 / 19,69'
W - width of the inner ring [mm /inch]
28 / 1.10"
T - width of the outer ring [mm /inch]
20 / 0.79"
L- Lenght [mm /inch]
84 / 3.31"
GM - Thread length [mm /inch]
51 / 2.01"
Kąt wychylenia
30°
Maximum static load [kN / lbs]
100 / 22480.89
Maximum dynamic load [kN / lbs]
97.0 / 21806.47
Weight
443 g / 0,98 lbs
