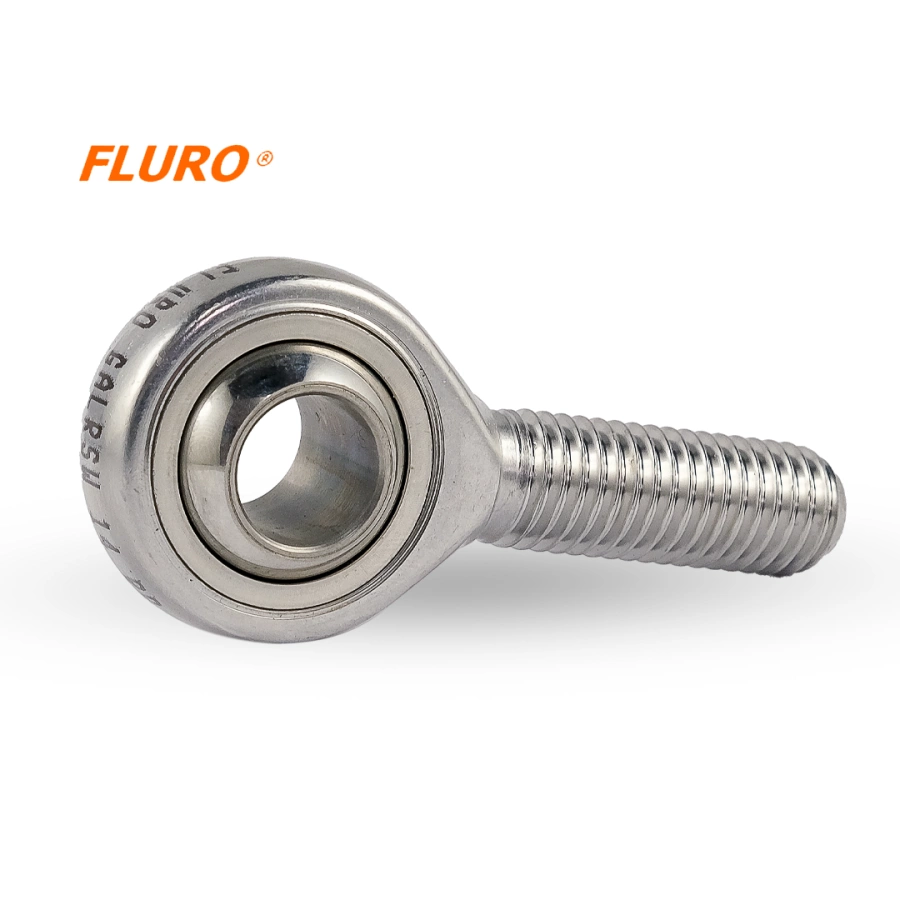

Rod end / linkage head - uniball GALRSW 30 RR FLURO - M30x2 left-hand external (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
70 / 2.755"
W - width of the inner ring [mm /inch]
37 / 1.46"
T - width of the outer ring [mm /inch]
25 / 0.98"
L- Lenght [mm /inch]
110 / 4.33"
GM - Thread length [mm /inch]
71 / 2.795"
Kąt wychylenia
34°
Maximum static load [kN / lbs]
155.0 / 34845.38
Maximum dynamic load [kN / lbs]
168 / 37767.90
Weight
1030 g / 2.27 lbs
