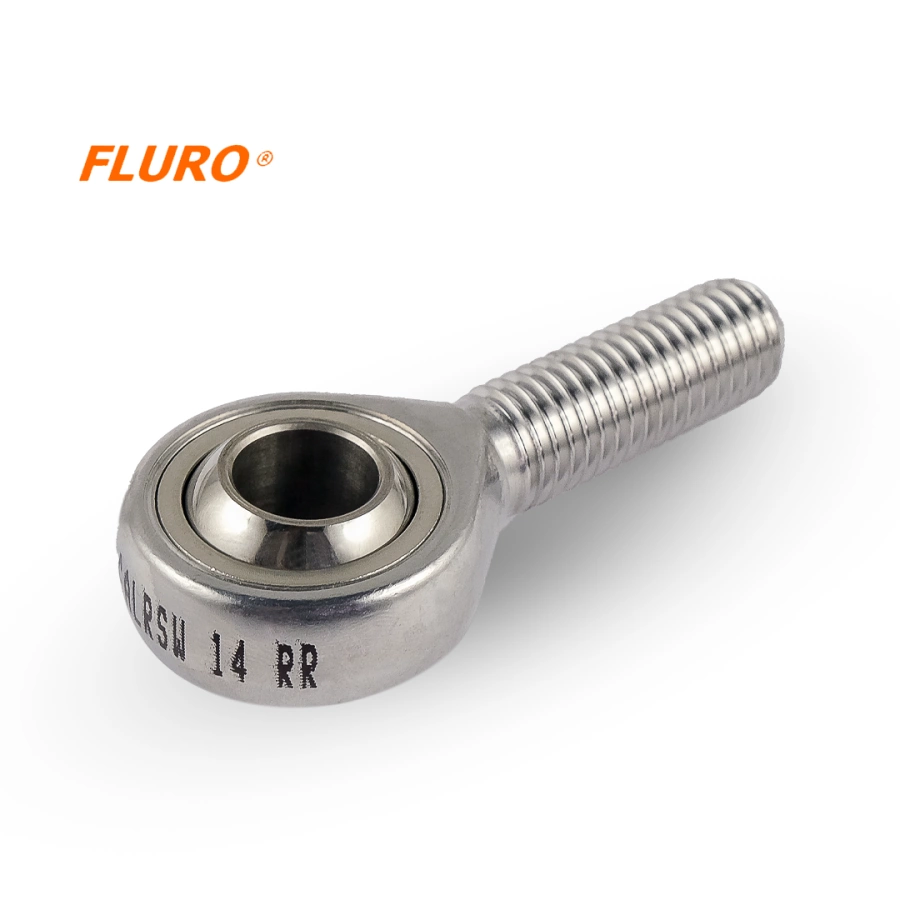

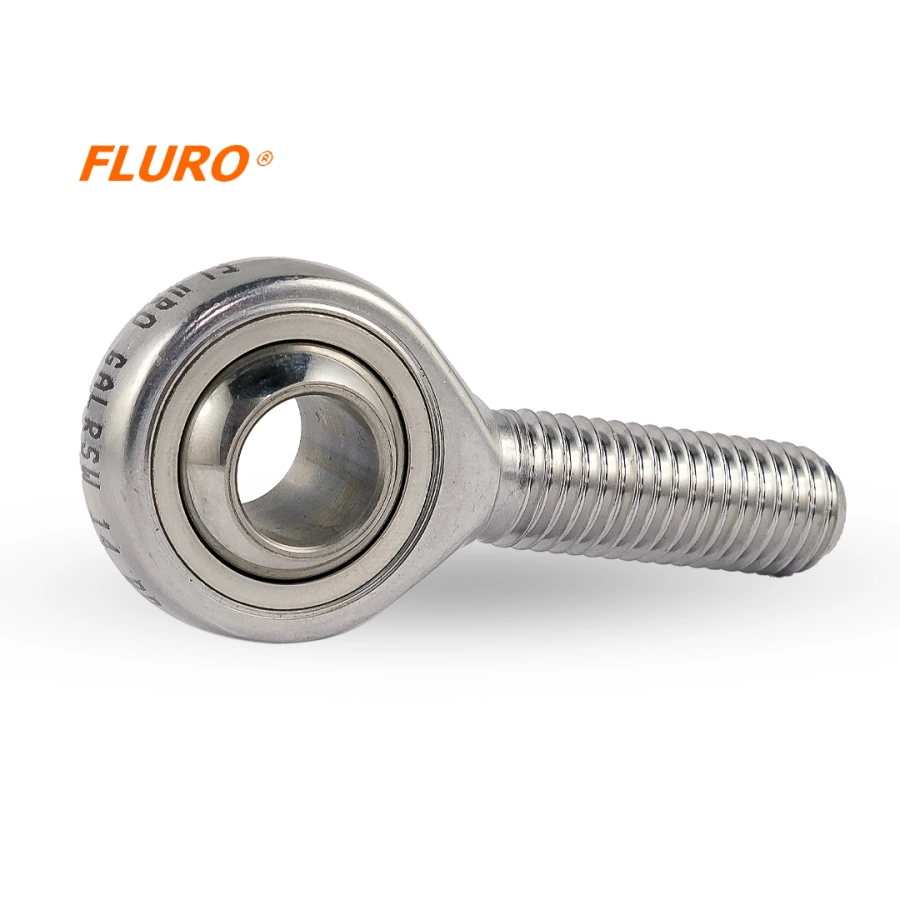

Rod end / linkage head - uniball GALRSW 5 RR FLURO - M5 left-hand external (male)
- GARSW RR Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments.
GARSW RR FLURO Rod End
GARSW Series - Rod end with external thread with (all stainless steel elements), with PTFE insert (maintenance-free). For use under high dynamic tensile/compressive loads in corrosion-prone environments. Dimensional series K - stainless, maintenance-free.
Friction Pair - NIRO/PTFE.
Housing: stainless steel 1.4057, forged, polished. Size made of stainless steel 1.4057, turned.
Bearing Bushing: special bronze CuSn8 with glued PTFE insert
Inner Ring: bearing steel: [ DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100], hardened, ground, polished, coated with hard chrome on sliding surfaces
Specification
D - external diameter of the rod head [mm /inch]
18 / 0,71"
W - width of the inner ring [mm /inch]
8 / 0.31"
T - width of the outer ring [mm /inch]
6 / 0.24"
L- Lenght [mm /inch]
33 / 1.30"
GM - Thread length [mm /inch]
19 / 0.75"
Deflection angle
26°
Maximum static load [kN / lbs]
6.2 / 1393.81
Maximum dynamic load [kN / lbs]
7.5 / 1686.07
Weight
13 g / 0.029 lbs
