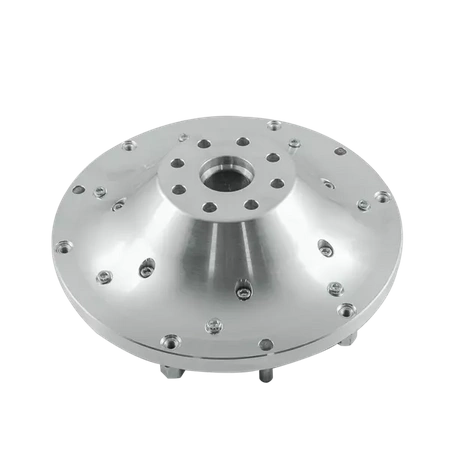

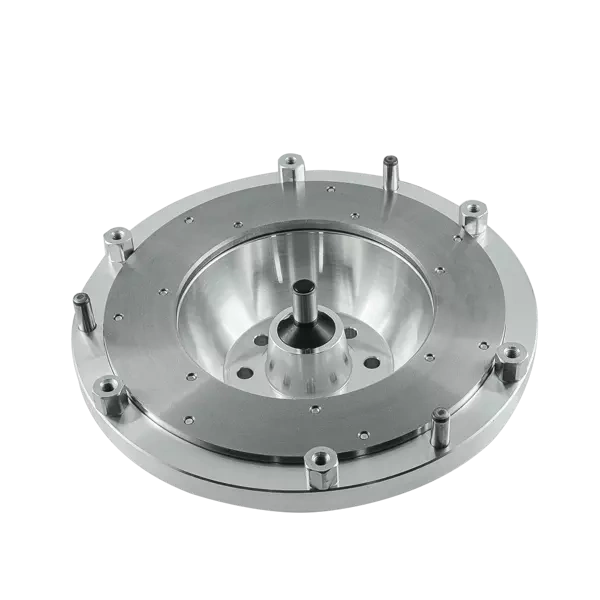

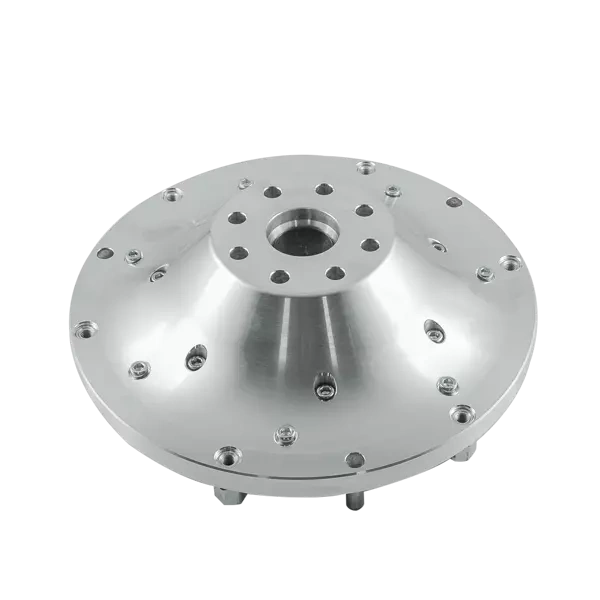

Flywheel Toyota UZ - BMW M57N GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota UZ - BMW M57N GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota UZ - BMW M57N GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota UZ - BMW M57N GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota UZ - BMW M57N GS6-53DZ HGU HGK - 240mm / 9.45"
Flywheel Toyota UZ - BMW M57N GS6-53DZ HGU HGK - 240mm / 9.45"

Flywheel Toyota UZ - BMW M57N GS6-53DZ HGU HGK - 240mm / 9.45"

  • Aluminum custom flywheel enabling connection (swap / conversion) of the Toyota Lexus V8 UZ 1UZ-FE 3UZ-FE engine with a manual 6-speed ZF GS6-53DZ (ZF Friedrichshafen) gearbox from a BMW E90 E91 E92 E93 325D 330D
539,00 EUR
incl. VAT / pcs.
of
Express checkout 1-Click(without registration)
The product is available in a very large quantity
The product is available in a very large quantity
14 days for easy returns
This product is not available in a stationary store
Safe shopping

PMC Motorsport Custom Flywheel Toyota Lexus V8 UZ 1UZ-FE 3UZ-FE - BMW M57n ZF GS6-53DZ HGU HGK E90 325D 330D 6-speed Diesel - SMF | 240mm / 9.45"

You want to combine the Toyota Lexus V8 UZ 1UZ-FE 3UZ-FE engine with manual 6-speed ZF GS6-53DZ gearbox? Our gearbox adapter is the perfect solution for you. Custom flywheels dedicated to adapters PMC Motorsport made of aluminum with replaceable friction surface, checked and balanced before shipping. Flywheel designed for a 240mm pressure type (GS6-53DZ BMW OE).

PMC Motorsport gearbox adapters are synonymous with precision and the highest quality. The design process based on 3D scanning and inspection using a measuring arm ensure perfect fit. Production on modern CNC machines guarantees perfect coaxiality of the engine and gearbox, which is crucial for the durability of the drive system.

Our entire production and R&D design department are located in Poland. Over 90% of the elements are manufactured by our company.

Help in choosing and after-sales support - Support PMC Motorsport

The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during installation, he will provide technical support. You can contact us via the contact form.

Single item purchase

Our offer includes every element of our set, which can be purchased separately.

Thousands of adapters produced and satisfied customers around the world.

The PMC Motorsport adapter is used both in everyday cars and in professional motorsport projects.

From the very beginning, we have focused on the quality of the parts we produce. After each stage of production, the element is inspected. Each component we produce is engraved with the production serial number.

We confirm the quality with the ISO PN-EN ISO 9001:2015 certificate

We send our products to virtually all countries in the world. European Union countries (except islands) and the UK have shipping calculated automatically. For countries not on the list, after placing your order, our team will prepare a shipping calculation and add it to your order. You will receive an email with the cost of your order.

NOTE The shipping quote sent along with the product price does not include additional fees/duties that may occur depending on the shipping country.

VAT 0%

VAT 0% for Customers with active European VAT (option for B2B customers from outside Poland) and in the case of export outside the EU.

After positive verification in the VIES system, we modify the order by removing the VAT charged from the order.

Matching engines: Matching gearboxes

Toyota/Lexus V8 UZ

Toyota/Lexus 1UZ-FE

Toyota/Lexus 3UZ-FE

ZF (ZF Friedrichshafen) S6-53 GS6-53DZ 6-speed

ZF S6-53 GS6-53DZ HGU (THGU) BMW M57n2 E9x 330D 325D

ZF S6-53 GS6-53DZ HGK (THGK) BMW M57n2 E9x 330D 325D

ZF S6X53 GS6X53DZ HGW (THGW) BMW M57n2 E9x 330D xDrive

ZF S6X53 GS6X53DZ HGL (THGL) BMW M57n2 E9x 330D xDrive

Additional information

PMC Motorsport parts are designed for motorsport. For use on racetracks

Parts intended for installation by professionals with knowledge of engine SWAPs and car modifications - in workshops and using tools appropriately adapted for this purpose.

The adapter installation instructions contain only the basic knowledge necessary to physically connect the engine with the gearbox outside the car body.

Depending on your car, there may be additional modifications such as: adjustment of mounts, cushions and engine bulkhead, gearbox tunnel, drive shaft length, etc.

We make adapters from fully recyclable materials.

The flywheel requires the use of a PMC gearbox adapter. To install the flywheel, it is necessary to use a flywheel from the automatic Toyota version OE 32101-50010 and a washer between the engine block and the rim OE 4.5mm 32116-50010 (not included). The clutch lever is mounted in the lower position of the release bearing

instrukcja montażu koła zamachowego PMC Toyota Lexus V8 UZ 1UZ 3UZ - BMW ZF GS6-53DZ HGU HGK 240mm">

instrukcja montażu podpory łapy sprzęgła PMC w skrzyni biegów BMW

instrukcja pozycji łapy sprzęgła na łożysku oporowym

Symbol
K0HGU-240-UZ
Specification
Toyota engine list
Toyota / Lexus V8 1UZ 1UZ-FEMore
  • 1989–2000 Lexus LS 400/Toyota Celsior
  • 1989–2002 Toyota Crown/Toyota Crown Majesta
  • 1991–2000 Lexus SC 400/Toyota Soarer
  • 1992–2000 Lexus GS 400/Toyota Aristo
  • 1995–1997 SARD MC8/MC8-R
Toyota / Lexus V8 3UZ 3UZ-FEMore
  • Lexus LS 430 (2000-2006)
  • Lexus GS 430 (2000-2007)
  • Lexus SC 430/Toyota Soarer (2001-2010)
  • Toyota Crown Majesta (2004-2010)
  • Hongqi HQ430
Manual gearbox (Diesel)
6-speed ZF GS6-53DZ HGU BMW E9x 325D 330D M57n2More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGU code HGU

Bell housing: 1067 401 161 / 1067401161

Sticker number: 1067 010 014 / 23.00-7565213 / 23 00 7565213 /

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGU / BMW OE 23 00 7 571 420 / 23 00 7571420
6-speed ZF GS6-53DZ HGK BMW E9x 325D 330D M57n2 More

BMW ZF (ZF Friedrichshafen S6-53) GS653DZ / GS6-53DZ - THGK code HGK

Bell housing : 1067 401 161 / 1067401161

Sticker number : 1067 010 004 / 23.00-7539000 / 23 00 7539000 / 23007539000

  • BMW 3' E90 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E90 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E91 LCI 325D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E92 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
  • BMW 3' E93 325D 330D M57n2 ZF GS6-53DZ - THGK / BMW OE 23 00 7 560 725 / 23 00 7560725
6-speed ZF GS6X53DZ HGW BMW E9x 330xD M57n2 xDrive
6-speed ZF GS6X53DZ HGL BMW E9x 330xD M57n2 xDrive
Clutch information
Recommended clutch pressure plate
BMW OE 21 21 7 545 068 | 21217545068
Sachs Performance 88 308 200 1243 / 883082.001243
Clutch disc diameter
Ø240mm / 9.45"
Clutch disc (Not included - OE part number)
BMW OE 21 20 7 583 172 | 21207583172 (GS6-53DZ / BZ)
Spline
32,5x35-26N (GS6-53DZ / BZ)
Spline Count
26
Required clutch release bearing (Not included - OE part number)
BMW OE 21 51 7 564 027 | 21517564027
Required clutch release fork (Not included - OE part number)
BMW OE 21 51 7 564 027 | 21517564027 (2-position)
Clutch Slave Cylinder required
BMW OE 21 52 6 775 924
BMW OE 21 52 6 785 964
BMW OE 21 52 1 158 903
BMW OE 21 52 6 766 277
Flywheel specification
Flywheel Type
SMF Rigid / Single-mass / Single-disc / Ø240mm / 9.45"
Flywheel weight PMC
5,20 kg / 11,46 lbs / 183,42 oz
Replaceable friction surface
Yes
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
72Nm 53,1ft·lb + Glue
Starter required (not included)
Toyota UZ (OE)
Flexplate / ring gear / Drive plate required
Toyota Lexus OE 32101-50010 + one spacer OE 32116-50010 4.5mm between the engine block and the flexplate
Required gearbox adapter
Gearbox adapter thickness
20mm / 0.78"
PMC gearbox adapter code
F0BMW-UZ
ADDITIONAL INFORMATION
Set includes
Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Custom Clutch fork pivot pin / Ball
Diameter of Friction Plate
240mm / 9.45"
