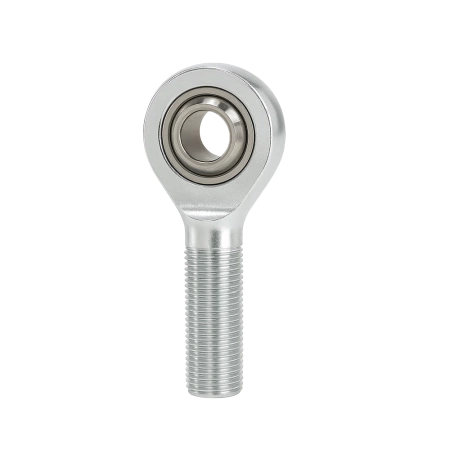

Rod end / linkage head – uniball EA 16 D FLURO – M16 right-hand external (male) thread.
- EA series – rod end, dimension series E with external thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.
FLURO EA Rod End
EA Series - rod end, dimension series E with external thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical plain bearing.
For use under high, unidirectional loads and limited installation width.
Dimension series E - maintenance-free.
Sliding pair: steel / PTFE
Housing:
up to size 10: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12: heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing - maintenance-free steel/PTFE bearing GE...EC
Specification
D - external diameter of the rod head [mm /inch]
46 / 1.81"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
11 / 0.43"
L- Lenght [mm /inch]
69 / 2.72"
GM - Thread length [mm /inch]
36 / 1.42"
Kąt wychylenia
20°
Maximum static load [kN / lbs]
54.0 / 12139.68
Maximum dynamic load [kN / lbs]
22.5 / 5058.20
Weight
190 g / 0.419 lbs
