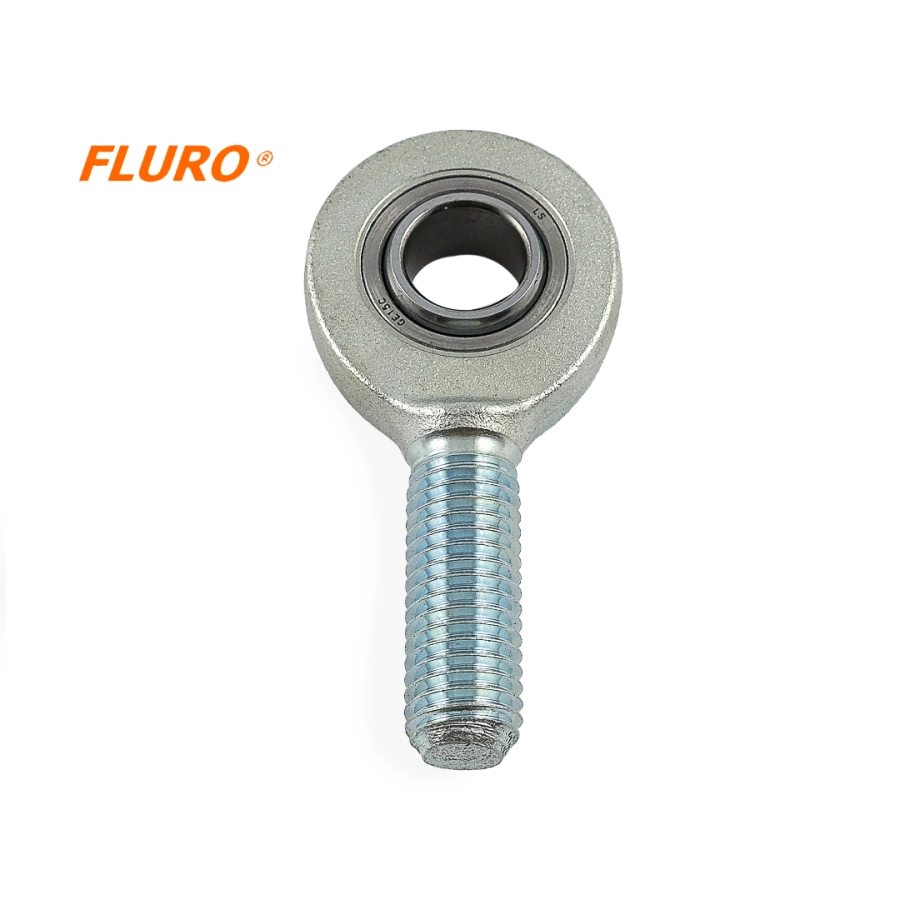

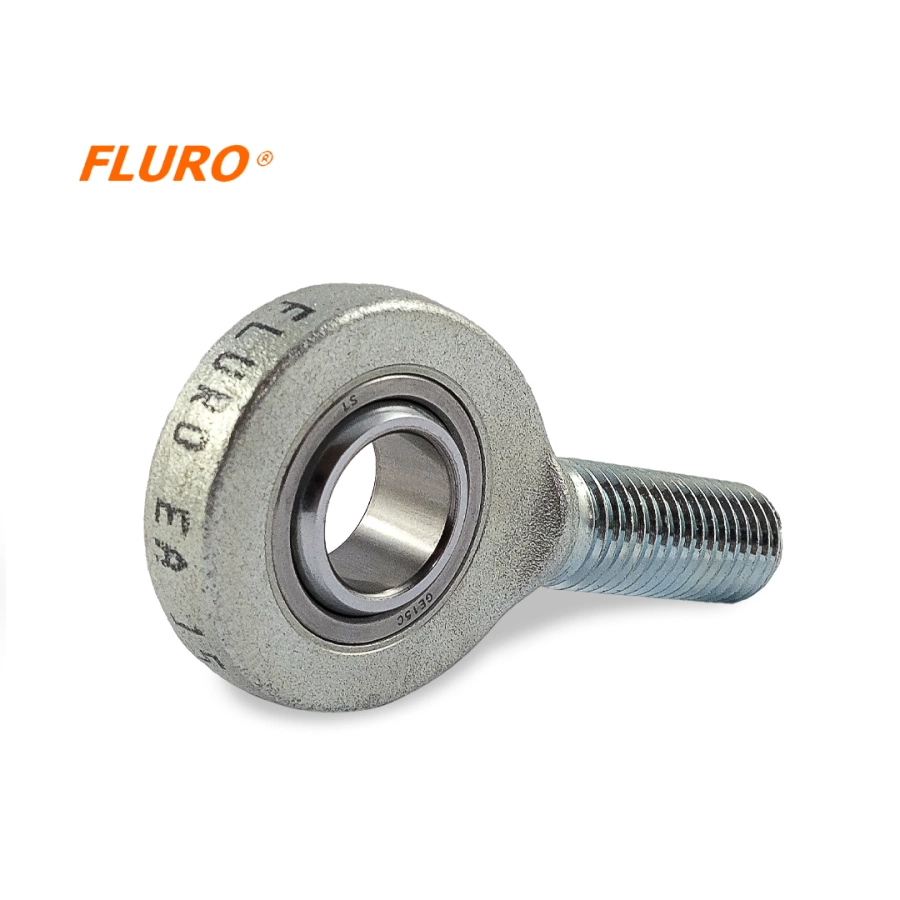

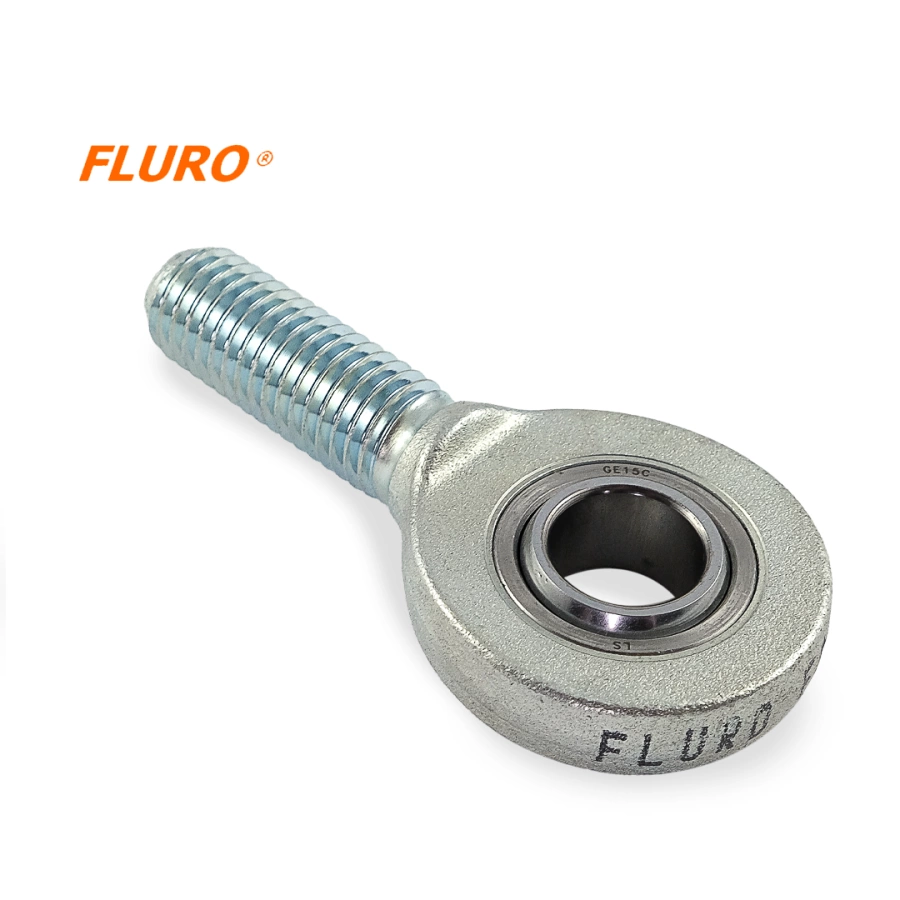

Rod end / linkage head – uniball EA 8 D FLURO – M8 right-hand external (male) thread.
- EA series – rod end, dimension series E with external thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical bearing.
FLURO EA Rod End
EA Series - rod end, dimension series E with external thread, made of free-cutting steel or heat-treatable steel, zinc-plated, with maintenance-free spherical plain bearing.
For use under high, unidirectional loads and limited installation width.
Dimension series E - maintenance-free.
Sliding pair: steel / PTFE
Housing:
up to size 10: free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12: heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing - maintenance-free steel/PTFE bearing GE...EC
Specification
D - external diameter of the rod head [mm /inch]
24 / 0.95"
W - width of the inner ring [mm /inch]
8 / 0.31"
T - width of the outer ring [mm /inch]
6 / 0.24"
L- Lenght [mm /inch]
42 / 1.65"
GM - Thread length [mm /inch]
22 / 0.87"
Kąt wychylenia
30°
Maximum static load [kN / lbs]
12.7 / 2855.07
Maximum dynamic load [kN / lbs]
5.8 / 1303.89
Weight
28 g / 0.062 lbs
