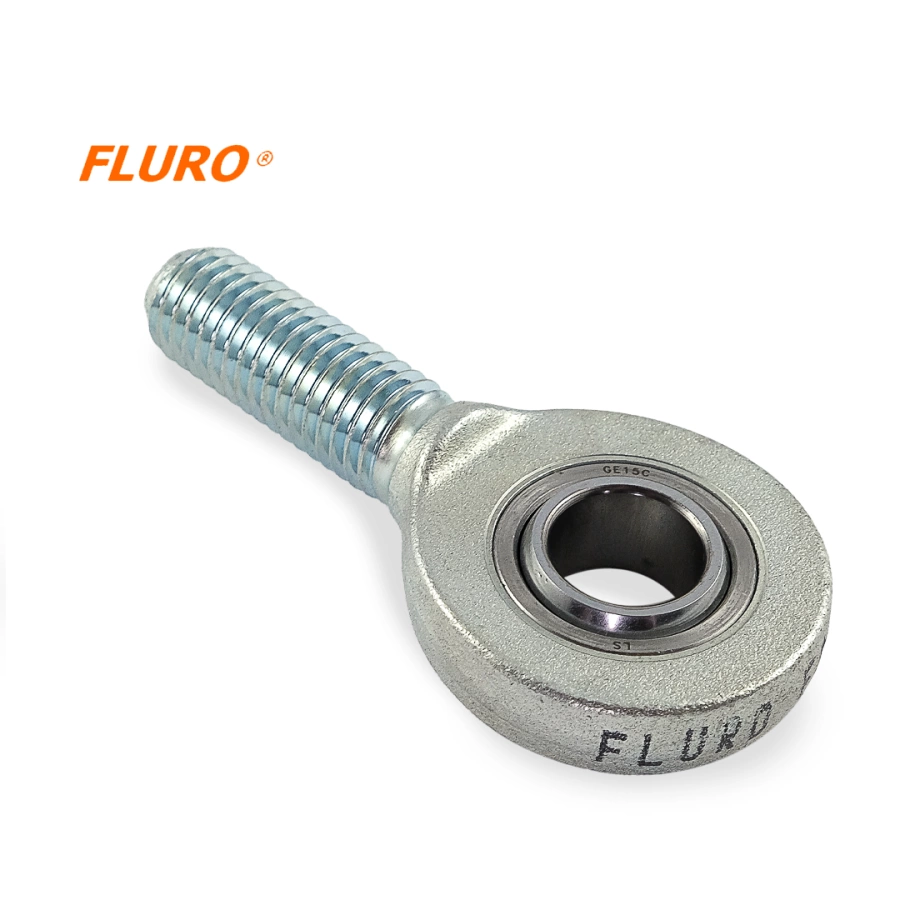

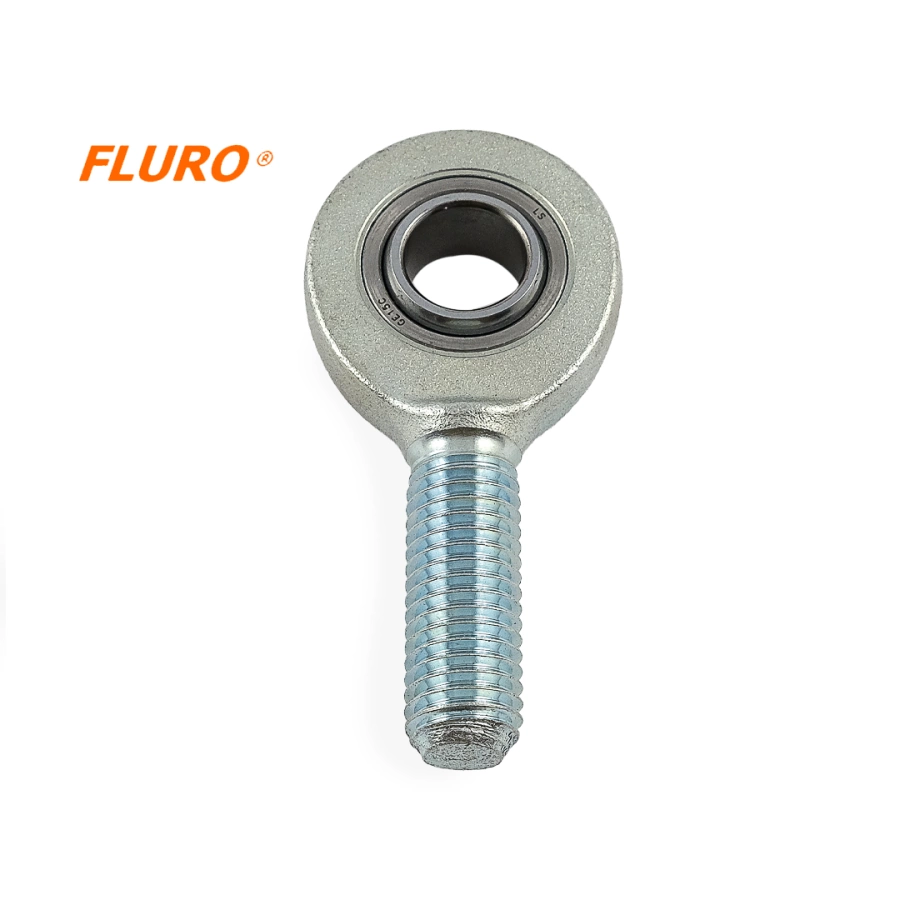

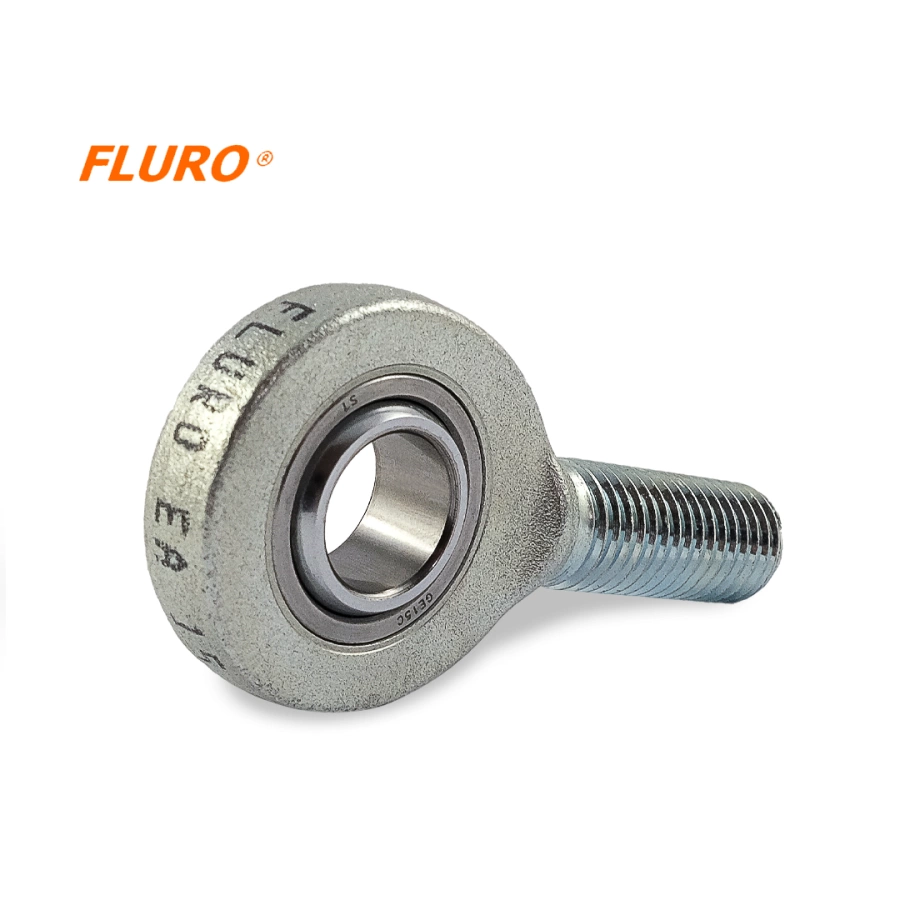

Rod end / linkage head – uniball EA 6 D-NIRO FLURO – M6 right-hand external (male) thread.
- Series EA..D-NIRO – stainless steel rod end with external thread, equipped with GE...EC-NIRO spherical plain bearing. Designed for applications involving high, one-sided loads and limited installation width in corrosion-prone environments.
FLURO Rod End EA..D-NIRO
Series EA..D-NIRO – stainless steel rod end with external thread, equipped with GE...EC-NIRO spherical plain bearing. Designed for applications involving high, one-sided loads and limited installation width in corrosion-prone environments.
Dimensional series E – stainless steel, maintenance-free.
Sliding contact pair: steel / PTFE
Housing: sizes 6 - 10 stainless steel 1.4301, forged, polished
from size 45 stainless steel 1.4301, turned
from size 50 stainless steel 1.4057, turned
Bearing – maintenance-free GE..EC-NIRO spherical plain bearing made of stainless steel
1) available on request
Specification
D - external diameter of the rod head [mm /inch]
21 / 0.83"
W - width of the inner ring [mm /inch]
6 / 0.24"
T - width of the outer ring [mm /inch]
4.4 / 0.17"
L- Lenght [mm /inch]
36 / 1.42"
GM - Thread length [mm /inch]
18 / 0.71"
Kąt wychylenia
26°
Maximum static load [kN / lbs]
4.0 / 899.24
Maximum dynamic load [kN / lbs]
4.0 / 899.24
Weight
16 g / 0.035 lbs
