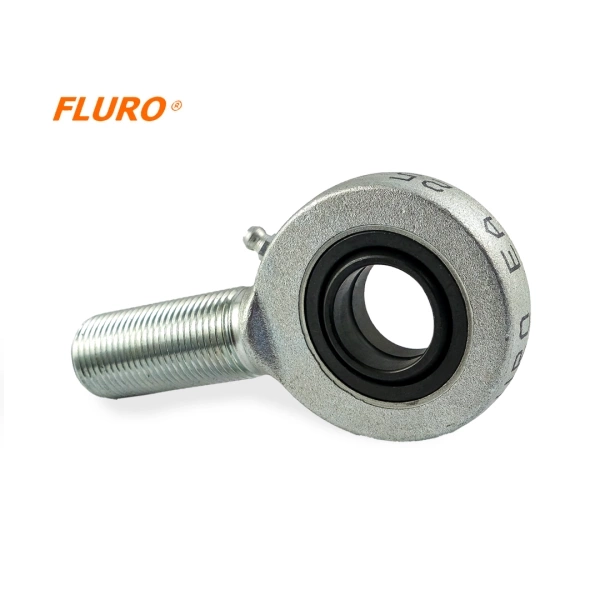

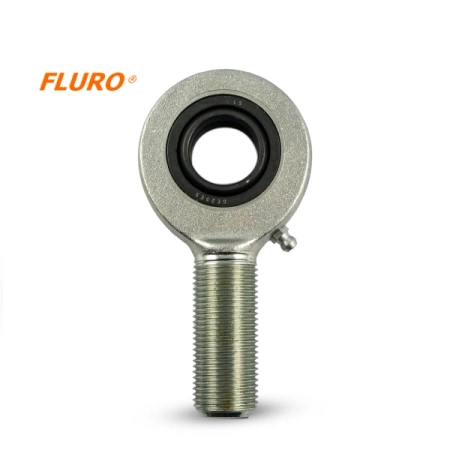

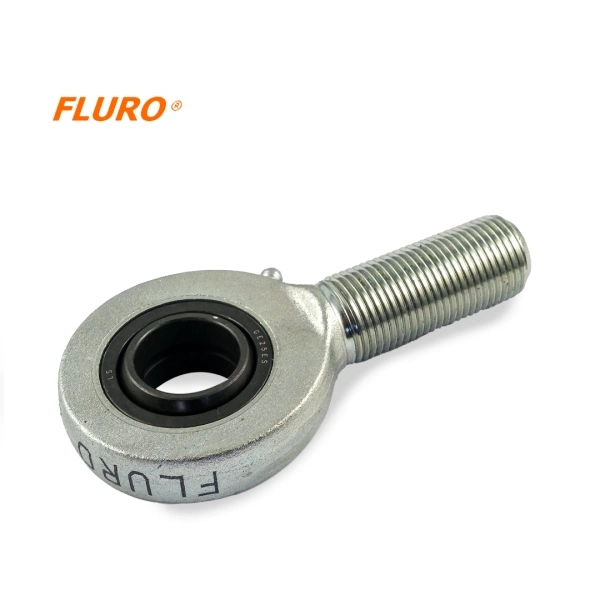

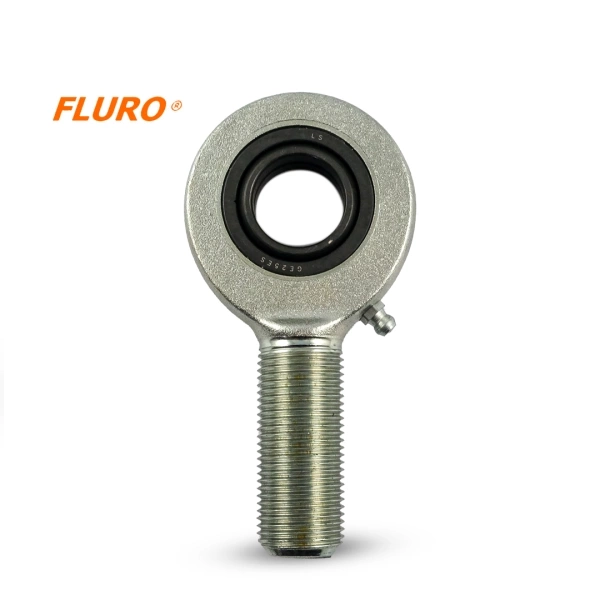

Rod end / linkage head - uniball EAL 25 FLURO - M24x2 left-hand external (male)
- EA series – rod head, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing (requires lubrication).
FLURO EA Rod End
EA Series – rod end, dimensional series E with external thread made of free-cutting steel or heat-treatable steel, zinc-plated, with steel/steel spherical plain bearing.
For use under high, variable loads and in narrow installation widths.
Dimensional series E – requires lubrication.
Friction pair: steel / steel
Housing:
up to size 10 free-cutting steel [DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, UK 230M07, USA 12L13], turned
from size 12 heat-treatable steel [DE C45, FR 1C45, IT C45, SE 1650, UK 080M46, USA Aisi 1045], forged
Bearing – lubrication-required bearing steel / PTFE GE...EC
Lubrication – up to size 17 no lubrication option, from size 20 with hydraulic grease fitting DIN 71412
Specification
D - external diameter of the rod head [mm /inch]
64 / 2.52"
W - width of the inner ring [mm /inch]
20 / 0.79"
T - width of the outer ring [mm /inch]
17 / 0.67"
L- Lenght [mm /inch]
94 / 3.70"
GM - Thread length [mm /inch]
53 / 2.09"
Kąt wychylenia
14°
Maximum static load [kN / lbs]
92.0 / 20682.42
Maximum dynamic load [kN / lbs]
48.0 / 10790.83
Weight
560 g / 1.235 lbs
