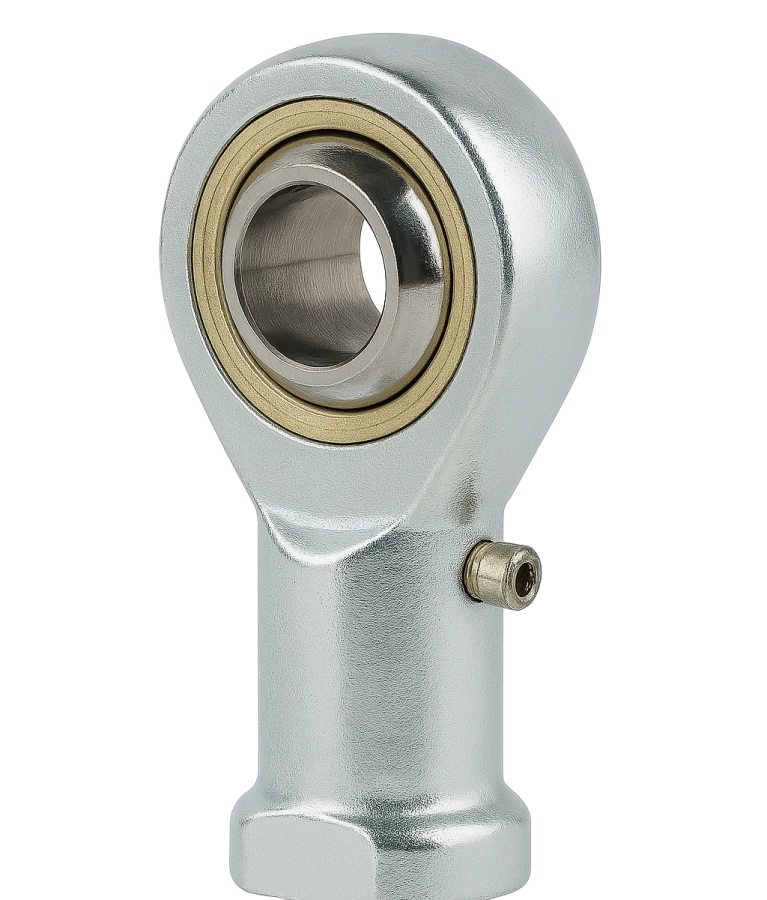

Rod end / linkage head - uniball GIL 10 FLURO - M10 left-hand internal (female)
- GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple. Particularly suitable for axial loads.
FLURO GI Rod End
GI Series – Rod end with internal thread, made of free-cutting steel or heat-treatable steel, zinc-plated, relubricable via concave ball-type grease nipple.
Particularly suitable for axial loads.
Sliding pair: steel / brass.
Housing:
up to size 12 – free-cutting steel [ DE 9SMnPb28K / FR S250Pb / IT CF9SMnPb28 / SE 1912 / UK 230M07 / 12L13 ] turned
from size 14 – heat-treatable steel [ DE C22 / FR XC25 / IT C21 / SE 1450 / UK 070M20 / USA M1023 ] forged
Bearing shell – special brass CuZn40Al1
Inner ring – bearing steel [ DE 100Cr6 / FR 100Cr6 / IT 100Cr6 / SE 2258 / UK 2S135 / AISI 52100 ] hardened, ground, polished
Specification
D - external diameter of the rod head [mm /inch]
28 / 1.10"
W - width of the inner ring [mm /inch]
14 / 0.55"
T - width of the outer ring [mm /inch]
10.5 / 0.41"
L- Lenght [mm /inch]
43 / 1.69"
GM - Thread length [mm /inch]
20 / 0.79"
Kąt wychylenia
26°
Maximum static load [kN / lbs]
21.4
Maximum dynamic load [kN / lbs]
7.5 / 1686.07
Weight
76 g / 0.168 lbs
